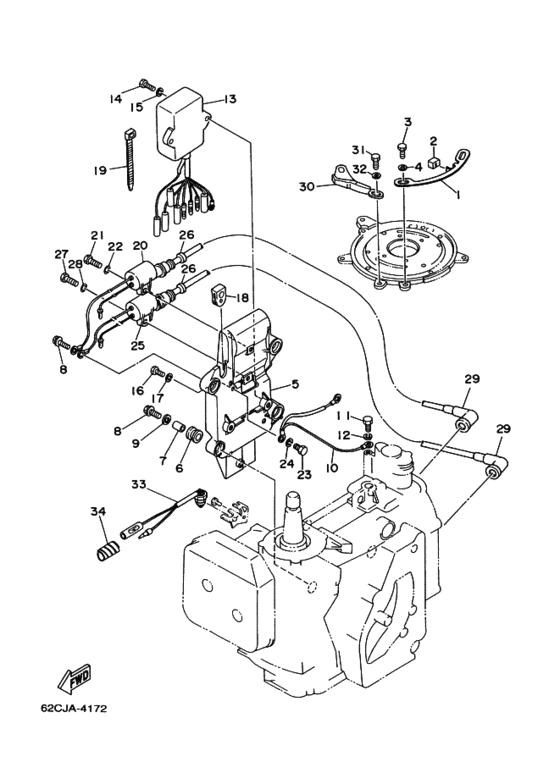

Electrical 1 Diagram Yamaha 25 MKS/L
- Year
- 1998
- Model
- 25V
- Model code
- 62C
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62C-41615-00-00 Stopper, Magneto Baseストツパ，マグネツトベ−ス; |
62C-41615-00-00 |
US $14.45 |
||
|
2
|
2
695-44194-00-00 Capキヤツプ; |
695-44194-00-00 |
from US $7.08 |
||
|
3
|
3
970-95060-10-00
Bolt
ボルト; |
970-95060-10-00 |
— | ||
| replacement | |||||
|
3
|
3
97085-06010-00 Boltボルト; |
97085-06010-00 |
from US $1.28 |
||
|
4
|
4
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
61N-85542-00-94 Bracketブラケツト; |
61N-85542-00-94 |
from US $47.94 |
||
|
6
|
6
61N-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
61N-82317-00-00 |
US $4.68 |
||
|
7
|
7
624-42542-00-00 Collarパイプ; |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
7
|
7
90387-06119-00 Collarパイプ; |
90387-06119-00 |
from US $3.26 |
||
|
8
|
8
90119-06M95-00 Bolt, With Washer |
90119-06M95-00 |
US $3.83 |
||
| replacement | |||||
|
8
|
8
90119-06294-00 Bolt, With Washer |
90119-06294-00 |
from US $2.88 |
||
|
9
|
9
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
10
|
10
61N-82519-01-00 Wire, Earth Leadワイヤ，ア−スリ−ド; |
61N-82519-01-00 |
from US $11.33 |
||
|
11
|
11
97090-06012-00 Boltボルト; |
97090-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
11
|
11
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
61N-85540-11-00 C.d.i. Unit Assy |
61N-85540-11-00 |
US $450.12 |
||
| replacements | |||||
|
13
|
13
61N-85540-13-00 C.d.i. Unit Assy |
61N-85540-13-00 |
US $450.12 |
||
|
13
|
13
999-99045-44-00 CDI UNIT KIT |
999-99045-44-00 |
US $450.12 |
||
|
14
|
14
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
14
|
14
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.66 |
||
|
15
|
15
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
97090-06012-00 Boltボルト; |
97090-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
17
|
17
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
6H3-81922-00-00 Grommet |
6H3-81922-00-00 |
from US $8.64 |
||
|
19
|
19
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
20
|
20
61N-85570-00-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
61N-85570-00-00 |
from US $101.82 |
||
| replacement | |||||
|
20
|
20
61N-85570-10-00 Ignition Coil Assemblyイグニツシヨンコイルアセンブリ; |
61N-85570-10-00 |
from US $79.78 |
||
|
21
|
21
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
21
|
21
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.66 |
||
|
22
|
22
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
97090-06012-00 Boltボルト; |
97090-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
23
|
23
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
24
|
24
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
61N-85570-10-00 Ignition Coil Assemblyイグニツシヨンコイルアセンブリ; |
61N-85570-10-00 |
from US $79.78 |
||
|
26
|
26
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
27
|
27
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
27
|
27
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.66 |
||
|
28
|
28
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
29
|
29
663-82370-01-00 Plug Cap Assyプラグキヤツプアセンブリ; |
663-82370-01-00 |
from US $6.62 |
||
|
30
|
30
689-41213-01-94 Cam, Accelカム，アクセル; |
689-41213-01-94 |
US $36.75 |
||
|
31
|
31
97095-05010-00 Boltボルト; |
97095-05010-00 |
from US $1.78 |
||
|
32
|
32
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
33
|
33
689-82540-01-00 Neutral Switch Assemblyニユートラルスイツチアセンブリ; ＥＫ２５ＡＷＨ |
689-82540-01-00 |
from US $44.63 |
||
|
34
|
34
90446-10M02-00 Hoseホース; ＥＫ２５ＡＷＨ |
90446-10M02-00 |
US $4.68 |
||
| replacement | |||||
|
34
|
34
90446-10M01-00 Hose (L60)ホース; ＥＫ２５ＡＷＨ |
90446-10M01-00 |
from US $4.68 |
||
