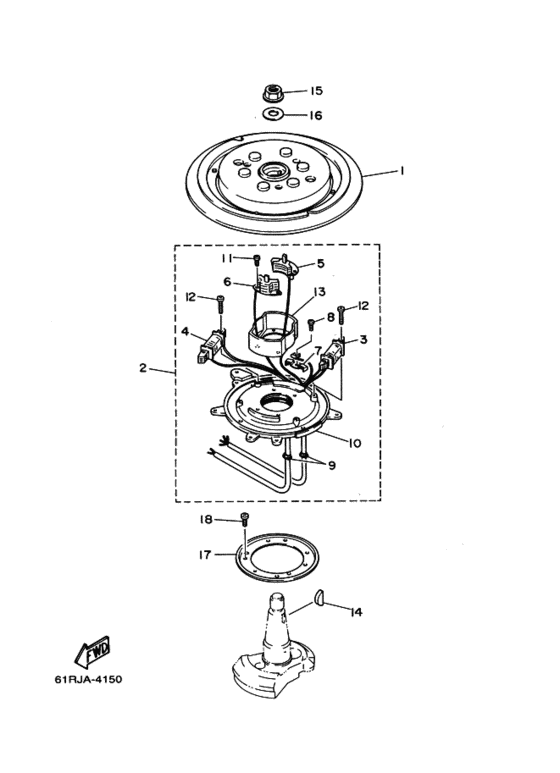

Generator Diagram Yamaha 25 MKS/L
- Year
- 1998
- Model
- 25V
- Model code
- 62C
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61N-85550-10-00 Rotor Assyロ−タアセンブリ; ＵＲ ＥＫ２５ＡＭＨ |
61N-85550-10-00 |
from US $806.52 |
||
|
1
|
1
61T-85550-10-00 Rotor Assemblyロ−タアセンブリ; ＵＲ ＥＫ２５ＡＷＨ |
61T-85550-10-00 |
from US $806.52 |
||
|
2
|
2
61N-85560-10-00 Base Assemblyベースアセンブリ; |
61N-85560-10-00 |
US $424.10 |
||
|
3
|
3
61N-85541-19-00 Coil, Charge．コイル，チヤ−ジ; ターミナル非装備 |
61N-85541-19-00 |
US $102.24 |
||
| replacement | |||||
|
3
|
3
69P-85541-09-00 Coil, Charge．コイル，チヤ−ジ; ターミナル非装備 |
69P-85541-09-00 |
from US $102.24 |
||
|
4
|
4
61N-81313-09-00 Coil, Lighting 1．コイル，ライテイング １; ターミナル非装備 |
61N-81313-09-00 |
from US $64.24 |
||
|
5
|
5
61N-85543-09-00 Coil Pulser．コイル，パルサ; ターミナル非装備 |
61N-85543-09-00 |
from US $84.84 |
||
|
6
|
6
61N-85543-19-00 Coil Pulser．コイル，パルサ; ターミナル非装備 |
61N-85543-19-00 |
from US $86.18 |
||
|
7
|
7
6E9-81328-70-00 Clamp．クランプ; |
6E9-81328-70-00 |
from US $6.23 |
||
|
8
|
8
97802-04006-00 Screw, Pan Head．スクリユ，パンヘツド; |
97802-04006-00 |
US $1.56 |
||
| replacements | |||||
|
8
|
8
98517-04006-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04006-00 |
from US $1.28 |
||
|
8
|
8
999-99999-99-00
Not Available
．スクリユ，パンヘツド; |
999-99999-99-00 |
— | ||
|
9
|
9
6E9-85516-70-00 Spacer．グロメツト; |
6E9-85516-70-00 |
from US $6.38 |
||
|
10
|
10
61N-85561-00-00
Base, Magneto
．ベース，マグネト; |
61N-85561-00-00 |
— | ||
|
11
|
11
976-07041-12-00
Screw, Pan Head
．スクリユ，パンヘツドウイズワツシヤ; |
976-07041-12-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-04012-00 Screw, Pan Head．スクリユ，パンヘツドウイズワツシヤ; |
98517-04012-00 |
from US $1.07 |
||
|
12
|
12
97607-06125-00 Screw, Pan Head．スクリユ，パンヘツドウイズワツシヤ; |
97607-06125-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98517-06025-00 Screw, Pan Head．スクリユ，パンヘツドウイズワツシヤ; |
98517-06025-00 |
from US $1.42 |
||
|
13
|
13
61N-85537-00-00 Cover．カバー; |
61N-85537-00-00 |
from US $29.89 |
||
|
14
|
14
902-80050-15-00
Key, Woodruff
|
902-80050-15-00 |
— | ||
| replacement | |||||
|
14
|
14
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
15
|
15
90179-16M05-00 Nut |
90179-16M05-00 |
from US $10.83 |
||
|
16
|
16
90201-16M44-00 Washer, Plate |
90201-16M44-00 |
from US $4.72 |
||
|
17
|
17
689-41612-01-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
689-41612-01-00 |
US $18.42 |
||
|
18
|
18
97880-06010-00 Screw, Pan Head |
97880-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
