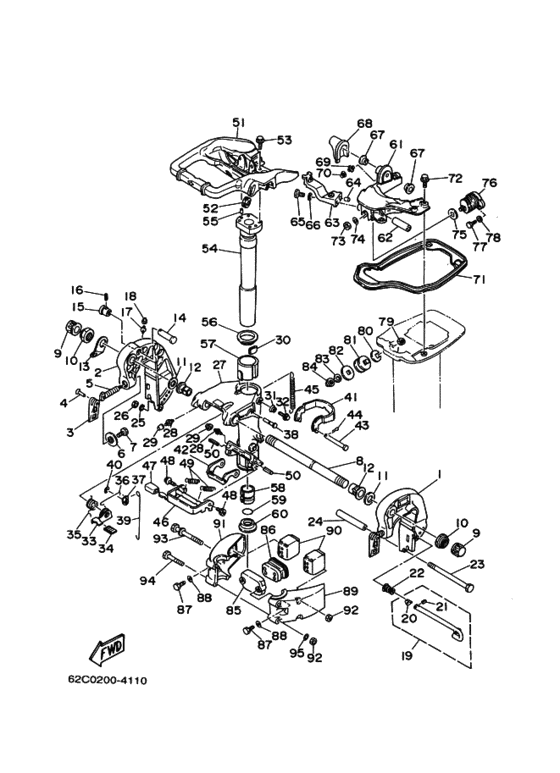

ﾌﾞﾗｹﾂﾄ 1 Diagram Yamaha 25 MKS/L
- Year
- 1998
- Model
- 25V
- Model code
- 62C
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-43111-03-4D Bracket, Clamp 1ブラケツト，クランプ; |
689-43111-03-4D |
US $157.50 |
||
| replacement | |||||
|
1
|
1
689-43111-03-8D BRACKET CLAMP 1ブラケツト，クランプ; |
689-43111-03-8D |
from US $157.50 |
||
|
2
|
2
689-43112-02-4D Bracket, Clamp 2ブラケツト，クランプ; |
689-43112-02-4D |
US $157.50 |
||
| replacement | |||||
|
2
|
2
689-43112-02-8D BRACKET, CLAMP 2ブラケツト，クランプ; |
689-43112-02-8D |
from US $157.50 |
||
|
3
|
3
663-43118-01-4D
Handle, Transom Clamp
ハンドル，トランサムクランプ; |
663-43118-01-4D |
— | ||
| replacement | |||||
|
3
|
3
663-43118-01-8D Handle, Transom Clampハンドル，トランサムクランプ; |
663-43118-01-8D |
from US $15.12 |
||
|
4
|
4
90243-04007-00 Pin |
90243-04007-00 |
from US $2.35 |
||
|
5
|
5
6G0-43116-00-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
6G0-43116-00-00 |
US $20.97 |
||
| replacements | |||||
|
5
|
5
90149-14M03-00 Screw, Spec''l Shapeスクリユ，トランサムクランプ; |
90149-14M03-00 |
from US $15.16 |
||
|
5
|
5
682-43116-00-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
682-43116-00-00 |
US $21.68 |
||
|
6
|
6
6F5-43114-00-00 Pad, Transom Clampパツド，トランサムクランプ; |
6F5-43114-00-00 |
US $5.95 |
||
|
7
|
7
90109-06M12-00 Bolt |
90109-06M12-00 |
US $4.96 |
||
|
8
|
8
6J8-43131-01-00 Bolt, Clamp Bracketボルト，クランプブラケツト; |
6J8-43131-01-00 |
from US $36.36 |
||
|
9
|
9
6G5-43145-00-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
9
|
9
6G5-43145-01-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-01-00 |
from US $7.07 |
||
|
10
|
10
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
10
|
10
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
11
|
11
90201-22M03-00 Washer, Plateワツシヤ，プレ−ト; |
90201-22M03-00 |
from US $4.11 |
||
|
12
|
12
90386-22M67-00 Bush |
90386-22M67-00 |
from US $2.55 |
||
|
13
|
13
6J8-43113-01-00 Plate, Clamp Bracketプレ−ト，クランプブラケツト; |
6J8-43113-01-00 |
from US $6.52 |
||
|
14
|
14
689-43191-00-00 Shaft, Stopperシヤフト，ストツパ; |
689-43191-00-00 |
from US $8.76 |
||
|
15
|
15
689-43192-01-00 Knob, Stopperノブ，ストツパ; |
689-43192-01-00 |
from US $4.04 |
||
|
16
|
16
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2.36 |
||
|
17
|
17
93700-06M03-00 Nipple, Greaseニツプル，グリ−ス; |
93700-06M03-00 |
from US $3.04 |
||
|
18
|
18
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリ−スニツプル; ＡＰ |
663-45119-00-00 |
US $3.89 |
||
|
19
|
19
689-43160-00-00 Tilt Rod Assyチルトロツドアセンブリ; |
689-43160-00-00 |
from US $21.22 |
||
|
20
|
20
689-43165-00-00 Plate, Tilt Lock．プレ−ト，チルトロツク; |
689-43165-00-00 |
from US $5.95 |
||
| replacement | |||||
|
20
|
20
6EE-G3165-00-00 Plate, Tilt Lock．プレ−ト，チルトロツク; |
6EE-G3165-00-00 |
from US $5.38 |
||
|
21
|
21
91690-30008-00 Pin, Spring．ピン，スプリング; |
91690-30008-00 |
from US $1.56 |
||
|
22
|
22
90502-10M07-00 Spring, Conical |
90502-10M07-00 |
from US $1.84 |
||
|
23
|
23
90101-08339-00 Boltボルト; |
90101-08339-00 |
from US $8.93 |
||
|
24
|
24
90387-08M03-00 Collar |
90387-08M03-00 |
US $8.93 |
||
| replacement | |||||
|
24
|
24
90387-09019-00 COLLAR |
90387-09019-00 |
from US $8.93 |
||
|
25
|
25
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
26
|
26
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
26
|
26
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
27
|
27
689-43311-03-4D Bracket, Swivel 1ブラケツト，スウイベル; |
689-43311-03-4D |
US $251.45 |
||
|
28
|
28
93700-06M03-00 Nipple, Greaseニツプル，グリ−ス; |
93700-06M03-00 |
from US $3.04 |
||
|
29
|
29
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリ−スニツプル; ＡＰ |
663-45119-00-00 |
US $3.89 |
||
|
30
|
30
648-42528-00-00 Plate, Frictionプレ−ト，フリクシヨン; |
648-42528-00-00 |
US $10.77 |
||
|
31
|
31
689-43373-01-00 Seal, Damperシール，ダンパ; |
689-43373-01-00 |
US $4.53 |
||
|
32
|
32
90105-06M18-00 Bolt, Flange |
90105-06M18-00 |
from US $2.74 |
||
|
33
|
33
689-43631-00-00 Lever, Tiltレバー，チルト; |
689-43631-00-00 |
US $14.03 |
||
| replacement | |||||
|
33
|
33
689-43631-10-00 lever, tiltレバー，チルト; |
689-43631-10-00 |
from US $14.03 |
||
|
34
|
34
689-43633-00-00 Cover, Tilt Leverカバ−，チルトレバ−; |
689-43633-00-00 |
US $4.11 |
||
|
35
|
35
689-43643-00-00 Springスプリング; |
689-43643-00-00 |
from US $4.96 |
||
|
36
|
36
689-43616-00-00 Rod, Tilt Lockロツド，チルトロツク; |
689-43616-00-00 |
from US $6.80 |
||
|
37
|
37
648-43642-00-00 Lever, Tilt 1レバ−，チルト １; |
648-43642-00-00 |
from US $6.94 |
||
|
38
|
38
90249-06M22-00 Pin |
90249-06M22-00 |
from US $2.41 |
||
|
39
|
39
648-43617-00-00 Rod, Tilt Lockロツド，チルトロツク; |
648-43617-00-00 |
from US $6.80 |
||
|
40
|
40
93430-05027-00 Circlipサークリツプ; |
93430-05027-00 |
from US $1.56 |
||
| replacement | |||||
|
40
|
40
99080-05600-00 Circlipサークリツプ; |
99080-05600-00 |
from US $1.81 |
||
|
41
|
41
689-43614-00-00 Etrier, Verrouillage Marche Arプレ−ト，チルトロツク; |
689-43614-00-00 |
US $28.76 |
||
| replacement | |||||
|
41
|
41
689-43614-01-00 Plate, Tilt Lockプレ−ト，チルトロツク; |
689-43614-01-00 |
from US $28.76 |
||
|
42
|
42
648-43615-00-00 Plate, Tilt Lockプレ−ト，チルトロツク; |
648-43615-00-00 |
from US $19.27 |
||
|
43
|
43
90240-05046-00 Boulon, A Goupille |
90240-05046-00 |
US $14.78 |
||
|
44
|
44
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
45
|
45
90506-30M27-00 Spring, Tension |
90506-30M27-00 |
from US $9.44 |
||
|
46
|
46
689-43681-01-00 Lever, Shallow Water Drive 1レバ−，シヤロウオ−タドライブ １; |
689-43681-01-00 |
US $52.78 |
||
| replacement | |||||
|
46
|
46
689-43681-10-00 LEVER SHALLOW WATER DRIVE 1レバ−，シヤロウオ−タドライブ １; |
689-43681-10-00 |
from US $52.78 |
||
|
47
|
47
682-43318-01-00 Coverカバー; |
682-43318-01-00 |
from US $3.89 |
||
|
48
|
48
90109-06M18-00 Bolt |
90109-06M18-00 |
from US $4.68 |
||
|
49
|
49
90506-16M17-00 Spring, Tension |
90506-16M17-00 |
from US $4.82 |
||
|
50
|
50
91690-40035-00 Pin, Spring |
91690-40035-00 |
from US $3.12 |
||
|
51
|
51
689-42511-01-4D Cadre, Direction |
689-42511-01-4D |
US $147.73 |
||
| replacement | |||||
|
51
|
51
689-42511-02-8D
BRACKET, STEERING
|
689-42511-02-8D |
— | ||
|
52
|
52
90480-29045-00 Grommet |
90480-29045-00 |
from US $2.98 |
||
|
53
|
53
90105-06M07-00 Bolt, Flange |
90105-06M07-00 |
from US $2.16 |
||
|
54
|
54
689-42521-00-94 Shaft, Steering Pivot |
689-42521-00-94 |
from US $109.76 |
||
|
55
|
55
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.84 |
||
|
56
|
56
90209-47016-00 Washer |
90209-47016-00 |
from US $4.68 |
||
|
57
|
57
90386-47M22-00 Bush |
90386-47M22-00 |
from US $9.78 |
||
|
58
|
58
90386-38090-00 Bush |
90386-38090-00 |
from US $9.78 |
||
|
59
|
59
932-10371-60-00
O-Ring
|
932-10371-60-00 |
— | ||
| replacement | |||||
|
59
|
59
93210-37M67-00 O-Ring (6G8) |
93210-37M67-00 |
from US $2.77 |
||
|
60
|
60
90386-38022-00 Bush |
90386-38022-00 |
from US $4.53 |
||
|
61
|
61
648-44518-01-94 Bracket Compブラケツトコンプリ−ト; |
648-44518-01-94 |
US $128.49 |
||
| replacement | |||||
|
61
|
61
648-44518-01-CA Bracket Compブラケツトコンプリ−ト; |
648-44518-01-CA |
from US $71.42 |
||
|
62
|
62
90387-10M39-00 Collar |
90387-10M39-00 |
from US $9.07 |
||
|
63
|
63
648-44519-00-94 Bracketブラケツト; |
648-44519-00-94 |
US $26.49 |
||
| replacement | |||||
|
63
|
63
648-44519-00-00 Bracketブラケツト; |
648-44519-00-00 |
from US $26.49 |
||
|
64
|
64
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
65
|
65
97095-06018-00 Boltボルト; |
97095-06018-00 |
from US $4.11 |
||
| replacement | |||||
|
65
|
65
97080-06018-00 Bolt (Fj0)ボルト; |
97080-06018-00 |
from US $4.11 |
||
|
66
|
66
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
66
|
66
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
67
|
67
90381-12M01-00 Bush, Solid |
90381-12M01-00 |
from US $3.83 |
||
|
68
|
68
689-42718-00-00 Rubber, Seal 3ラバ−，シ−ル ３; |
689-42718-00-00 |
US $8.22 |
||
|
69
|
69
93700-06M03-00 Nipple, Greaseニツプル，グリ−ス; |
93700-06M03-00 |
from US $3.04 |
||
|
70
|
70
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリ−スニツプル; ＡＰ |
663-45119-00-00 |
US $3.89 |
||
|
71
|
71
689-42716-00-00
Rubber, Seal 1
ラバ−，シ−ル １; |
689-42716-00-00 |
— | ||
|
72
|
72
90105-06M08-00 Bolt, Flange |
90105-06M08-00 |
from US $2.16 |
||
|
73
|
73
92880-10200-00 Nut |
92880-10200-00 |
from US $6.38 |
||
| replacement | |||||
|
73
|
73
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2.36 |
||
|
74
|
74
92990-10200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-10200-00 |
from US $1.18 |
||
|
75
|
75
648-44591-A0-00 Gasketガスケツト; |
648-44591-A0-00 |
from US $4.39 |
||
|
76
|
76
689-44516-00-00 Mount Damper, Upper Frontマウントダンパ，アツパーフロント; |
689-44516-00-00 |
from US $54.20 |
||
|
77
|
77
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
77
|
77
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.66 |
||
|
78
|
78
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
78
|
78
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
79
|
79
92880-10200-00 Nut |
92880-10200-00 |
from US $6.38 |
||
| replacement | |||||
|
79
|
79
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2.36 |
||
|
80
|
80
648-44591-A0-00 Gasketガスケツト; |
648-44591-A0-00 |
from US $4.39 |
||
|
81
|
81
664-44514-00-94 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
664-44514-00-94 |
US $54.71 |
||
| replacement | |||||
|
81
|
81
664-44514-00-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
664-44514-00-00 |
from US $54.71 |
||
|
82
|
82
664-44591-A0-00 Gasketガスケツト; |
664-44591-A0-00 |
from US $4.39 |
||
|
83
|
83
92990-10200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-10200-00 |
from US $1.18 |
||
|
84
|
84
92880-10700-00 Nut |
92880-10700-00 |
US $3.12 |
||
| replacement | |||||
|
84
|
84
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
85
|
85
689-44553-00-94 Cover, Lower Mountカバ−，ロワ−マウント; |
689-44553-00-94 |
US $58.58 |
||
| replacement | |||||
|
85
|
85
689-44553-00-00 Cover, Lower Mountカバ−，ロワ−マウント; |
689-44553-00-00 |
from US $42.93 |
||
|
86
|
86
689-44557-00-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; |
689-44557-00-00 |
from US $15.16 |
||
|
87
|
87
97075-08025-00 Boltボルト; |
97075-08025-00 |
US $1.42 |
||
| replacement | |||||
|
87
|
87
97D75-08025-00 Bolt, Hexagon Deep Recessボルト; |
97D75-08025-00 |
from US $1.42 |
||
|
88
|
88
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
88
|
88
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
89
|
89
689-44551-01-4D Housing, Lower Mount Rubber 1ハウジング，ロワ−マウントラバ−; |
689-44551-01-4D |
US $63.97 |
||
| replacement | |||||
|
89
|
89
689-44551-01-8D Housing, Lower Mountハウジング，ロワ−マウントラバ−; |
689-44551-01-8D |
from US $52.15 |
||
|
90
|
90
689-44555-00-00 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
689-44555-00-00 |
from US $16.51 |
||
|
91
|
91
689-44552-01-4D Housing, Lower Mount Rubber 2ハウジング，ロワ−マウントラバ−; |
689-44552-01-4D |
US $63.97 |
||
| replacement | |||||
|
91
|
91
689-44552-01-8D Housing, Lower Mountハウジング，ロワ−マウントラバ−; |
689-44552-01-8D |
from US $63.97 |
||
|
92
|
92
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
92
|
92
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
92
|
92
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
93
|
93
90119-08M03-00 Bolt, With Washer |
90119-08M03-00 |
from US $6.23 |
||
|
94
|
94
97095-08065-00
Bolt
ボルト; |
97095-08065-00 |
— | ||
| replacement | |||||
|
94
|
94
970-80080-65-00 Boltボルト; |
970-80080-65-00 |
from US $13.80 |
||
|
95
|
95
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
95
|
95
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
