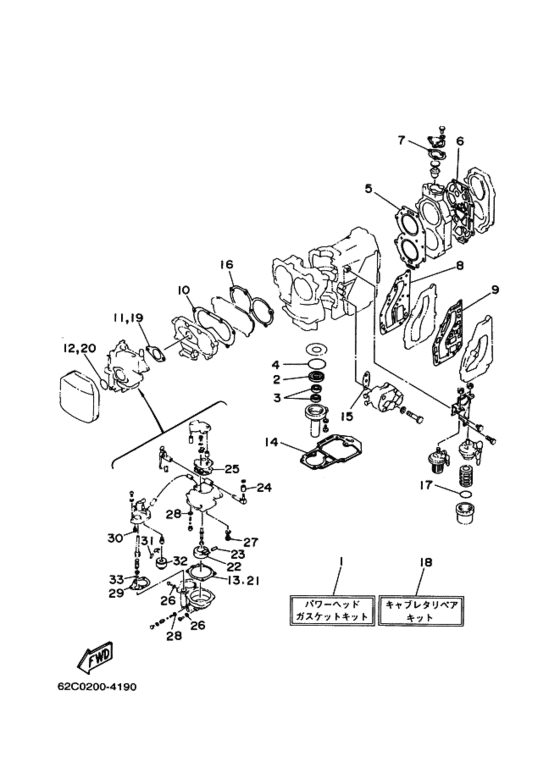

ﾘﾍﾟｱｷﾂﾄ 1 Diagram Yamaha 25 MKS/L
- Year
- 1998
- Model
- 25V
- Model code
- 62C
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62C-W0001-02-00
Power Head Gasket Kit
パワーヘツドガスケツトキツト; |
62C-W0001-02-00 |
— | ||
|
2
|
2
931-0225M-04-00
Oil Seal
．オイルシ−ル; |
931-0225M-04-00 |
— | ||
| replacements | |||||
|
2
|
2
931-0225M-28-00 Oil Seal(6H4)．オイルシ−ル; |
931-0225M-28-00 |
from US $9.44 |
||
|
2
|
2
93101-25M35-00 Oil Seal．オイルシ−ル; |
93101-25M35-00 |
from US $14.17 |
||
|
3
|
3
931-0116M-36-00 Oil Seal．オイルシ−ル; |
931-0116M-36-00 |
from US $5.06 |
||
|
4
|
4
932-1058M-21-00
O-Ring
．Ｏ−リング; |
932-1058M-21-00 |
— | ||
| replacement | |||||
|
4
|
4
932-1057M-09-00 O-Ring．Ｏ−リング; |
932-1057M-09-00 |
from US $3.04 |
||
|
5
|
5
61N-11181-A1-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
61N-11181-A1-00 |
US $47.11 |
||
| replacement | |||||
|
5
|
5
61N-11181-A2-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
61N-11181-A2-00 |
from US $35.70 |
||
|
6
|
6
61N-11193-01-00 Gasket, Hdcover 1．ガスケツト，ヘツドカバ− １; |
61N-11193-01-00 |
US $11.90 |
||
| replacement | |||||
|
6
|
6
61T-11193-A1-00 Gasket, Head Cover 1．ガスケツト，ヘツドカバ− １; |
61T-11193-A1-00 |
from US $11.90 |
||
|
7
|
7
655-12414-A1-00 Gasket, Cover．ガスケツト，カバ−; |
655-12414-A1-00 |
from US $3.72 |
||
|
8
|
8
6K8-41122-A1-00 Gasket, Exhaust Inner Cover．ガスケット，エギゾーストインナカバー; |
6K8-41122-A1-00 |
from US $12.12 |
||
|
9
|
9
6K8-41124-A1-00 Gasket, Exhaust Outer Cover．ガスケット，エギゾーストアウタカバー; |
6K8-41124-A1-00 |
from US $10.78 |
||
|
10
|
10
6J0-13645-A0-00 Gasket, Manifold 1．ガスケツト，マニホ−ルド １; |
6J0-13645-A0-00 |
US $7.08 |
||
|
11
|
11
648-14198-A0-00 Gasket．ガスケツト; |
648-14198-A0-00 |
from US $3.40 |
||
|
12
|
12
93210-39M89-00 O-Ring．Ｏ−リング; |
93210-39M89-00 |
US $3.83 |
||
| replacement | |||||
|
12
|
12
932-1039M-E4-00 O-Ring．Ｏ−リング; |
932-1039M-E4-00 |
from US $3.83 |
||
|
13
|
13
6A4-14384-00-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
6A4-14384-00-00 |
US $7.37 |
||
|
14
|
14
689-45113-A1-00 Gasket, Upper Casing．ガスケツト，アツパ−ケ−シング; |
689-45113-A1-00 |
from US $16.37 |
||
| replacement | |||||
|
14
|
14
61T-45113-A0-00 Gasket, Upper Casing．ガスケツト，アツパ−ケ−シング; |
61T-45113-A0-00 |
from US $16.37 |
||
|
15
|
15
650-24431-A0-00 Gasket, Fuel Pump 1．ガスケツト，フユエルポンプ １; |
650-24431-A0-00 |
from US $1.70 |
||
|
16
|
16
648-13621-A1-00 Gasket, Valve Seat．ガスケツト，バルブシ−ト; |
648-13621-A1-00 |
from US $7.08 |
||
|
17
|
17
93210-32738-00 O-Ring．Ｏ−リング; |
93210-32738-00 |
from US $1.39 |
||
|
18
|
18
62C-W0093-00-00
Carburetor Repair Kit
キヤブレタリペキット; |
62C-W0093-00-00 |
— | ||
|
19
|
19
648-14198-A0-00 Gasket．ガスケツト; |
648-14198-A0-00 |
from US $3.40 |
||
|
20
|
20
93210-39M89-00 O-Ring．Ｏ−リング; |
93210-39M89-00 |
US $3.83 |
||
| replacement | |||||
|
20
|
20
932-1039M-E4-00 O-Ring．Ｏ−リング; |
932-1039M-E4-00 |
from US $3.83 |
||
|
21
|
21
6A4-14384-00-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
6A4-14384-00-00 |
US $7.37 |
||
|
22
|
22
648-14385-00-00 Float．フロート; |
648-14385-00-00 |
from US $28.76 |
||
|
23
|
23
689-14386-00-00
Pin, Float
．ピン，フロート; |
689-14386-00-00 |
— | ||
| replacement | |||||
|
23
|
23
6E5-14386-01-00 Pin, Float．ピン，フロート; |
6E5-14386-01-00 |
from US $3.05 |
||
|
24
|
24
62C-41231-00-00
Collar, Guide Pin
．カラー，ガイドピン; |
62C-41231-00-00 |
— | ||
|
25
|
25
6A4-14398-01-00 Gasket．ガスケツト; |
6A4-14398-01-00 |
US $6.52 |
||
|
26
|
26
650-14227-01-00 Gasket．ワツシヤ; |
650-14227-01-00 |
US $4.11 |
||
| replacement | |||||
|
26
|
26
6A1-14398-00-00 Gasket．ワツシヤ; |
6A1-14398-00-00 |
from US $3.47 |
||
|
27
|
27
6J0-14390-14-00 Needle Valve Assy．ニードルバルブアセンブリ; |
6J0-14390-14-00 |
US $74.61 |
||
| replacement | |||||
|
27
|
27
61K-14390-00-00 Needle Valve Assembly．ニードルバルブアセンブリ; |
61K-14390-00-00 |
from US $74.61 |
||
|
28
|
28
6F5-14372-01-00 Seat, Packing．カバー，レシーブ; |
6F5-14372-01-00 |
US $6.38 |
||
|
29
|
29
6J0-14384-00-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
6J0-14384-00-00 |
US $8.22 |
||
|
30
|
30
62C-14392-00-00 Valve, Needle．バルブ，ニードル; |
62C-14392-00-00 |
US $20.69 |
||
|
31
|
31
6A4-14386-00-00 Pin, Float．ピン，フロート; |
6A4-14386-00-00 |
US $2.83 |
||
|
32
|
32
652-14385-00-00 Float．フロート; |
652-14385-00-00 |
US $29.47 |
||
|
33
|
33
652-14147-00-00 O-Ring．Ｏ−リング; |
652-14147-00-00 |
US $4.82 |
||
