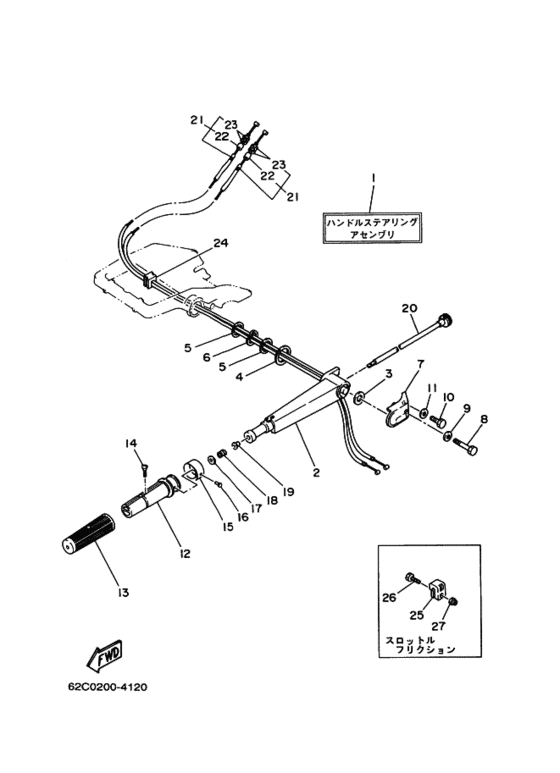

Steering Diagram Yamaha 25 MKS/L
- Year
- 1998
- Model
- 25V
- Model code
- 62C
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62C-W0084-00-4D
Handle Steering Assy
ハンドルステアリングアセンブリ; （見出番号 ２〜２４） |
62C-W0084-00-4D |
— | ||
|
2
|
2
689-42111-01-4D Handle, Steeringハンドル，ステアリング; |
689-42111-01-4D |
US $79.72 |
||
| replacement | |||||
|
2
|
2
689-42111-01-8D HANDLE, STEERINGハンドル，ステアリング; |
689-42111-01-8D |
from US $76.84 |
||
|
3
|
3
90560-14076-00 Entretoise |
90560-14076-00 |
US $5.14 |
||
|
4
|
4
90202-34043-00 Rondelle, Plate |
90202-34043-00 |
US $4.04 |
||
|
5
|
5
90201-28M00-00
Rondelle, Plate
|
90201-28M00-00 |
— | ||
|
6
|
6
90206-28M07-00 Rondelle, Onduleeワツシヤ，ウエイブ; |
90206-28M07-00 |
US $4.56 |
||
|
7
|
7
689-42112-01-4D Poigneeハンドル，ステアリング; |
689-42112-01-4D |
US $94.36 |
||
| replacement | |||||
|
7
|
7
99999-03925-00 Handle, Steeringハンドル，ステアリング; |
99999-03925-00 |
from US $52.96 |
||
|
8
|
8
97095-06050-00 Boltボルト; |
97095-06050-00 |
US $1.28 |
||
| replacement | |||||
|
8
|
8
970-80060-50-00 Boltボルト; |
970-80060-50-00 |
from US $3.26 |
||
|
9
|
9
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
10
|
10
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.66 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
664-42119-00-00 Grip, Steering Handleグリツプ，ステアリングハンドル; |
664-42119-00-00 |
from US $21.22 |
||
|
13
|
13
6F6-42177-A0-00
Rubber, Handle
ラバ−，ハンドル; |
6F6-42177-A0-00 |
— | ||
| replacements | |||||
|
13
|
13
6G1-42177-00-00
Rubber, Handle
ラバ−，ハンドル; |
6G1-42177-00-00 |
— | ||
|
13
|
13
6G1-42177-01-00 RUBBER, HANDLEラバ−，ハンドル; |
6G1-42177-01-00 |
from US $11.76 |
||
|
14
|
14
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
14
|
14
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
15
|
15
6J0-42137-00-00 Indicator, Throttleインジケ−タ，スロツトル; |
6J0-42137-00-00 |
US $3.54 |
||
| replacement | |||||
|
15
|
15
6J0-42137-10-00 Indicator, Throttleインジケ−タ，スロツトル; |
6J0-42137-10-00 |
from US $3.54 |
||
|
16
|
16
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
17
|
17
92903-10600-00 Washer, Plateワツシヤ，プレ−ト; |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
929-90106-00-00 Washer, Plateワツシヤ，プレ−ト; |
929-90106-00-00 |
from US $1.18 |
||
|
18
|
18
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
19
|
19
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
20
|
20
689-42138-00-00 Lever, Throttle |
689-42138-00-00 |
from US $15.16 |
||
|
21
|
21
62C-26311-00-00 Cable, Throttle 1ケ−ブル，スロツトル １; |
62C-26311-00-00 |
US $20.26 |
||
|
22
|
22
90123-06M00-00 Bolt(6A9)．ボルト; |
90123-06M00-00 |
from US $2.50 |
||
|
23
|
23
90170-06183-00 Ecrou．ナツト; |
90170-06183-00 |
from US $2.98 |
||
|
24
|
24
61N-26326-00-00 Grommet |
61N-26326-00-00 |
US $7.08 |
||
|
25
|
25
656-42126-01-00 Friction, Steering Handle Gripフリクシヨン，ステアリングハンドルグリツプ; |
656-42126-01-00 |
from US $12.33 |
||
|
26
|
26
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
26
|
26
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.66 |
||
|
27
|
27
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
