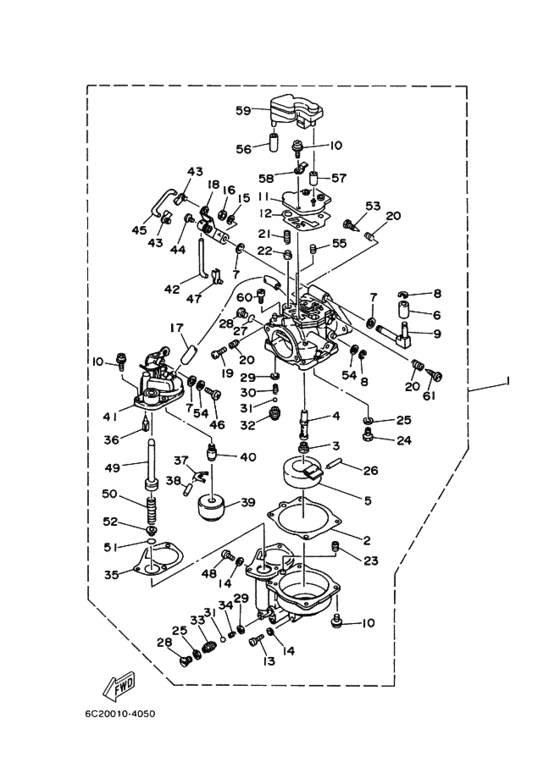

Carburetor Diagram Yamaha 25 MKS/L
- Year
- 2000
- Model
- 25V
- Model code
- 62C
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62C-14301-01-00
Carburetor Assy 1
キヤブレタアセンブリ １; |
62C-14301-01-00 |
— | ||
|
2
|
2
6A4-14384-00-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
6A4-14384-00-00 |
US $7.37 |
||
|
3
|
3
648-14343-78-00 Jet, Main (#155)．ジエツト，メイン ; ＃１５６ |
648-14343-78-00 |
US $11.48 |
||
|
4
|
4
6J0-14341-00-00 Nozzle, Main．ノズル，メイン; |
6J0-14341-00-00 |
US $23.38 |
||
|
5
|
5
648-14385-00-00 Float．フロ−ト; |
648-14385-00-00 |
from US $28.76 |
||
|
6
|
6
62C-41231-00-00
Collar, Guide Pin
．カラ−，ガイドピン; |
62C-41231-00-00 |
— | ||
|
7
|
7
62C-14367-00-00 Collar．カラー; |
62C-14367-00-00 |
US $6.38 |
||
|
8
|
8
93430-04301-00 Circlip．サ−クリツプ; |
93430-04301-00 |
US $1.84 |
||
|
9
|
9
62C-41216-00-00
Sheave Shaft, Accel. Link
．シ−ブシヤフト，アクセルリンク; |
62C-41216-00-00 |
— | ||
|
10
|
10
97980-04112-00 Screw, With Washer．スクリユ，ウイズワツシヤ; |
97980-04112-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
98580-04012-00 Screw, Pan Head (686)．スクリユ，ウイズワツシヤ; |
98580-04012-00 |
from US $1.28 |
||
|
11
|
11
6A4-14346-01-00 Plate．プレ−ト; |
6A4-14346-01-00 |
US $12.75 |
||
|
12
|
12
6A4-14398-01-00 Gasket．ガスケツト; |
6A4-14398-01-00 |
US $6.52 |
||
|
13
|
13
98580-04015-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-04015-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
98580-04016-00 Screw, Panhead (+)．スクリユ，パンヘツド; |
98580-04016-00 |
from US $1.07 |
||
|
14
|
14
650-14227-01-00 Gasket．パツキン; |
650-14227-01-00 |
US $4.11 |
||
| replacement | |||||
|
14
|
14
6A1-14398-00-00 Gasket．パツキン; |
6A1-14398-00-00 |
from US $3.47 |
||
|
15
|
15
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
95380-05700-00 Nut．ナツト; |
95380-05700-00 |
from US $2.22 |
||
|
17
|
17
6J0-14348-00-00 Pipe 1．パイプ １; |
6J0-14348-00-00 |
US $9.35 |
||
|
18
|
18
62C-14310-00-00 Accel Arm Assy．アクセル ア−ム アセンブリ; |
62C-14310-00-00 |
US $18.80 |
||
|
19
|
19
664-14321-01-00 Screw, Throttle．スクリユ，スロツトル; |
664-14321-01-00 |
from US $5.95 |
||
|
20
|
20
646-14212-01-00 Spring, Pilot Adjusting．スプリング，パイロツトアジヤステイング; |
646-14212-01-00 |
from US $4.11 |
||
|
21
|
21
656-14335-00-00 Spring, Plunger．スプリング，プランジヤ; |
656-14335-00-00 |
US $3.54 |
||
|
22
|
22
62C-14371-00-00 Plunger, Starter．プランジヤ，スタ−タ; |
62C-14371-00-00 |
US $69.63 |
||
|
23
|
23
6J0-14344-43-00 Jet, Starter (# 86)．ジエツト，スタ−タ ; ＃８６ |
6J0-14344-43-00 |
US $10.77 |
||
|
24
|
24
6J0-14390-14-00 Needle Valve Assy．ニ−ドルバルブアセンブリ; |
6J0-14390-14-00 |
US $74.61 |
||
| replacement | |||||
|
24
|
24
61K-14390-00-00 Needle Valve Assembly．ニ−ドルバルブアセンブリ; |
61K-14390-00-00 |
from US $74.61 |
||
|
25
|
25
367-14195-00-00 Washer, Needle Valve．ガスケツト; |
367-14195-00-00 |
from US $3.40 |
||
|
26
|
26
689-14386-00-00
Pin, Float
．ピン，フロ−ト; |
689-14386-00-00 |
— | ||
| replacement | |||||
|
26
|
26
6E5-14386-01-00 Pin, Float．ピン，フロ−ト; |
6E5-14386-01-00 |
from US $3.05 |
||
|
27
|
27
652-14397-00-00 O-Ring．Ｏ−リング; |
652-14397-00-00 |
from US $3.26 |
||
|
28
|
28
6A4-14394-00-00 Drain, Screw．スクリユ，ドレン; |
6A4-14394-00-00 |
from US $9.07 |
||
|
29
|
29
6F5-14372-01-00 Seat, Packing．シ−ト，パツキング; |
6F5-14372-01-00 |
US $6.38 |
||
|
30
|
30
6F5-14332-01-00 Spring．スプリング; |
6F5-14332-01-00 |
US $2.55 |
||
|
31
|
31
6A4-14369-01-00 Ball．ボ−ル; |
6A4-14369-01-00 |
US $2.55 |
||
|
32
|
32
6A4-14355-00-00 Seat, Ball．シ−ト，ボ−ル; |
6A4-14355-00-00 |
US $7.79 |
||
|
33
|
33
6A4-14355-10-00 Seat, Ball．シ−ト，ボ−ル; |
6A4-14355-10-00 |
US $7.79 |
||
|
34
|
34
6A4-14332-00-00 Spring, Air Valve．スプリング，エアバルブ; |
6A4-14332-00-00 |
US $4.96 |
||
|
35
|
35
6J0-14384-00-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
6J0-14384-00-00 |
US $8.22 |
||
|
36
|
36
62C-14392-00-00 Valve, Needle．バルブ，ニ−ドル; |
62C-14392-00-00 |
US $20.69 |
||
|
37
|
37
6J0-14387-00-00 Arm, Float．アーム，フロート; |
6J0-14387-00-00 |
US $11.76 |
||
|
38
|
38
6A4-14386-00-00 Pin, Float．ピン，フロ−ト; |
6A4-14386-00-00 |
US $2.83 |
||
|
39
|
39
652-14385-00-00 Float．フロ−ト; |
652-14385-00-00 |
US $29.47 |
||
|
40
|
40
6J0-14342-29-00
Jet, Pilot (# 58)
．ジエツト，パイロツト ; ＃５８ |
6J0-14342-29-00 |
— | ||
|
41
|
41
6J0-14182-00-00 Cover, Float Chamber．カバ−，フロ−トチヤンバ; |
6J0-14182-00-00 |
US $80.96 |
||
|
42
|
42
6J0-14379-10-00 Rod, Starter．ロツド，スタ−タ; |
6J0-14379-10-00 |
from US $8.78 |
||
|
43
|
43
6F5-41262-01-00 Joint, Throttle Lever．ジヨイント，スロツトルレバ−; |
6F5-41262-01-00 |
from US $9.78 |
||
|
44
|
44
677-14327-01-00 Screw．スクリユ; |
677-14327-01-00 |
from US $3.26 |
||
|
45
|
45
62C-14379-00-00 Rod, Starter．ロツド，スタ−タ; |
62C-14379-00-00 |
US $13.46 |
||
|
46
|
46
6J0-14329-01-00 Screw．スクリユウ; |
6J0-14329-01-00 |
US $37.17 |
||
|
47
|
47
661-41262-02-00 Joint, Choke Lever．ジヨイント，チヨ−クレバ−; |
661-41262-02-00 |
from US $7.93 |
||
|
48
|
48
97890-04005-00 Screw, Pan Head．スクリユ，パンヘツド; |
97890-04005-00 |
US $3.68 |
||
|
49
|
49
6J0-14370-00-00 Plunger Starter Assy．プランジヤスタータアセンブリ; |
6J0-14370-00-00 |
US $167.17 |
||
|
50
|
50
6A4-14339-01-00 Spring．スプリング; |
6A4-14339-01-00 |
US $5.81 |
||
|
51
|
51
652-14147-00-00 O-Ring．０−リング; |
652-14147-00-00 |
US $4.82 |
||
|
52
|
52
6A4-13945-00-00 Check Valve Assy．チエツクバルブアセンブリ; |
6A4-13945-00-00 |
US $17.14 |
||
|
53
|
53
647-14323-00-00 Screw, Air Adjusting．スクリユ，エアアジヤステイング; |
647-14323-00-00 |
from US $6.21 |
||
|
54
|
54
6L2-14357-00-00 Washer, Plain．ワツシヤ，プレ−ン; |
6L2-14357-00-00 |
from US $2.13 |
||
|
55
|
55
6J0-14353-27-00
Jet, Pilot (# 54)
．ジエツト，パイロツト ; ＃５４ |
6J0-14353-27-00 |
— | ||
|
56
|
56
90445-09M55-00 Hose (L20)．ホ−ス; |
90445-09M55-00 |
US $4.11 |
||
|
57
|
57
90445-09M69-00 Hose (L15)．ホ−ス; |
90445-09M69-00 |
US $4.11 |
||
|
58
|
58
6A4-14146-00-00 Plate．プレ−ト; |
6A4-14146-00-00 |
US $12.61 |
||
|
59
|
59
6A4-14225-00-00 Damper．ダンパ; |
6A4-14225-00-00 |
US $33.15 |
||
|
60
|
60
62C-14326-00-00 Screw, Guide．スクリユ，ガイド; |
62C-14326-00-00 |
US $4.96 |
||
|
61
|
61
6J0-14323-00-00 Screw, Air Adjusting．スクリユ，エアアジヤステイング; |
6J0-14323-00-00 |
US $9.21 |
||
