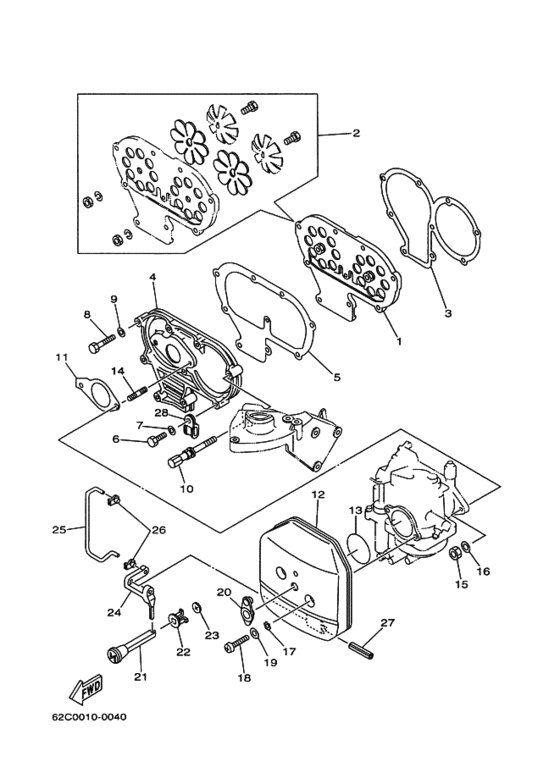

Integ unit assy spr Diagram Yamaha 25 MKS/L
- Year
- 2000
- Model
- 25V
- Model code
- 62C
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J0-13610-00-00 Reed Valve Assyリ−ドバルブアセンブリ; |
6J0-13610-00-00 |
US $106.38 |
||
|
2
|
2
689-W0004-60-00 Reed Set．リ−ドセツト; |
689-W0004-60-00 |
from US $57.82 |
||
|
3
|
3
648-13621-A1-00 Gasket, Valve Seatガスケツト，バルブシ−ト; |
648-13621-A1-00 |
from US $7.08 |
||
|
4
|
4
648-13641-01-94 Manifold, Intake 1マニホ−ルド １; |
648-13641-01-94 |
US $210 |
||
| replacement | |||||
|
4
|
4
648-13641-02-1S Manifold 1マニホ−ルド １; |
648-13641-02-1S |
US $168.56 |
||
|
5
|
5
6J0-13645-A0-00 Gasket, Manifold 1ガスケツト，マニホ−ルド １; |
6J0-13645-A0-00 |
US $7.08 |
||
|
6
|
6
97013-06025-00 Boltボルト; |
97013-06025-00 |
from US $1.48 |
||
|
7
|
7
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
8
|
8
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
8
|
8
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
9
|
9
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
10
|
10
90109-06M24-00
Bolt
|
90109-06M24-00 |
— | ||
|
11
|
11
648-14198-A0-00 Gasket |
648-14198-A0-00 |
from US $3.40 |
||
|
12
|
12
62C-14440-00-00 Silencer Assy, Intakeサイレンサアセンブリ，インテ−ク; |
62C-14440-00-00 |
US $20.97 |
||
|
13
|
13
93210-39M89-00 O-Ring |
93210-39M89-00 |
US $3.83 |
||
| replacement | |||||
|
13
|
13
932-1039M-E4-00 O-Ring |
932-1039M-E4-00 |
from US $3.83 |
||
|
14
|
14
90116-06M08-00 Bolt, Stud |
90116-06M08-00 |
from US $2.98 |
||
|
15
|
15
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.18 |
||
|
16
|
16
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
17
|
17
90209-05M24-00 Washerワツシヤ; |
90209-05M24-00 |
US $1.98 |
||
|
18
|
18
97880-05030-00 Screw, Pan Head |
97880-05030-00 |
US $2.27 |
||
| replacement | |||||
|
18
|
18
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
19
|
19
92990-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
62C-14435-00-00 Grommet |
62C-14435-00-00 |
US $6.23 |
||
|
21
|
21
682-41271-00-00 Knob, Choke |
682-41271-00-00 |
US $4.96 |
||
| replacement | |||||
|
21
|
21
682-41271-01-00 Knob, Choke |
682-41271-01-00 |
from US $4.38 |
||
|
22
|
22
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
23
|
23
6J8-41274-00-00 Grommet 2 |
6J8-41274-00-00 |
US $1.81 |
||
|
24
|
24
6J0-41252-00-00 Lever, Choke 1レバー，チヨーク １; |
6J0-41252-00-00 |
US $11.76 |
||
|
25
|
25
62C-41256-00-00 Rod, Choke 1ロツド，チヨ−ク １; |
62C-41256-00-00 |
US $11.05 |
||
|
26
|
26
661-41262-02-00 Joint, Choke Leverジヨイント，チヨ−クレバ−; |
661-41262-02-00 |
from US $7.93 |
||
|
27
|
27
91690-40040-00 Pin, Spring |
91690-40040-00 |
from US $1.56 |
||
|
28
|
28
90461-06M01-00 Clamp |
90461-06M01-00 |
from US $5.95 |
||
