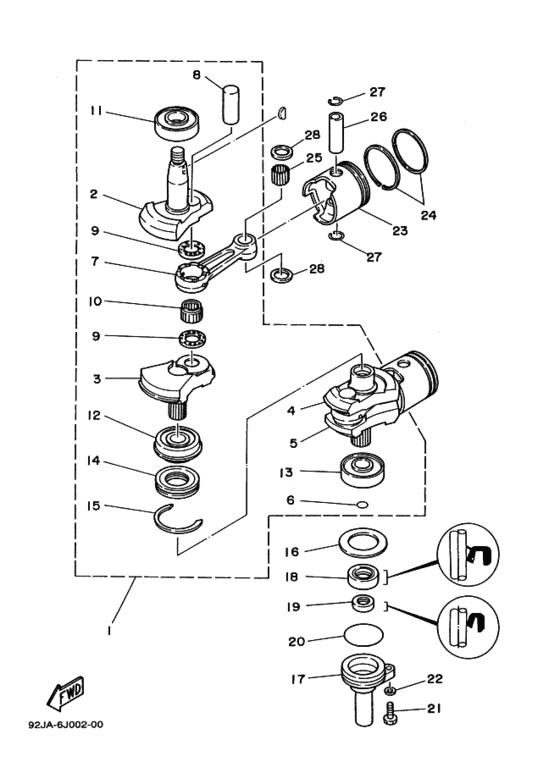

Crankshaft & Piston Diagram Yamaha 25 E(M)KS/L
- Year
- 1993
- Model
- 25H
- Model code
- 6J0
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J0-11400-00-00
Crankshaft Assy
クランクシヤフトアセンブリ; |
6J0-11400-00-00 |
— | ||
|
2
|
2
689-11412-03-00 Crank 1．クランク １; |
689-11412-03-00 |
US $185.02 |
||
|
3
|
3
689-11422-02-00 Crank 2．クランク ２; |
689-11422-02-00 |
US $296.52 |
||
|
4
|
4
689-11432-02-00 Crank 3．クランク ３; |
689-11432-02-00 |
US $206.53 |
||
|
5
|
5
689-11442-02-00 Crank 4．クランク ４; |
689-11442-02-00 |
US $236.60 |
||
|
6
|
6
93210-16275-00 O-Ring．Ｏ−リング; |
93210-16275-00 |
from US $1.63 |
||
|
7
|
7
6J0-11651-00-00 Rod, Connecting．ロツド，コネクテイング; |
6J0-11651-00-00 |
US $136.23 |
||
|
8
|
8
689-11681-01-00 Pin, Crank 1．ピン，クランク １; |
689-11681-01-00 |
from US $22.90 |
||
|
9
|
9
90202-24M32-00 Washer, Plate．ワツシヤ，プレ−ト; |
90202-24M32-00 |
US $6.80 |
||
|
10
|
10
93310-624W2-00 Bearing．ベアリング; |
93310-624W2-00 |
US $52.78 |
||
|
11
|
11
93306-306U3-00 Bearing．ベアリング; |
93306-306U3-00 |
from US $101.23 |
||
|
12
|
12
93390-00009-00 Bearing．ベアリング; |
93390-00009-00 |
from US $80.41 |
||
|
13
|
13
93306-305U3-00 Bearing．ベアリング; |
93306-305U3-00 |
from US $39.93 |
||
|
14
|
14
689-11515-00-00
Seal, Labyrinth 1
．シ−ル，ラビリンス １; |
689-11515-00-00 |
— | ||
|
15
|
15
93440-62057-00 Circlip, Outer．サ−クリツプ; |
93440-62057-00 |
from US $2.02 |
||
|
16
|
16
90201-50306-00 Washer, Plate |
90201-50306-00 |
from US $4.86 |
||
|
17
|
17
689-15396-01-5B Housing, Oil Sealハウジング，オイルシ−ル; |
689-15396-01-5B |
US $35.99 |
||
| replacement | |||||
|
17
|
17
689-15396-01-CA Housing, Oil Sealハウジング，オイルシ−ル; |
689-15396-01-CA |
from US $31.79 |
||
|
18
|
18
93101-25M35-00 Oil Sealオイルシ−ル; |
93101-25M35-00 |
from US $14.17 |
||
|
19
|
19
931-0116M-36-00 Oil Sealオイルシ−ル; |
931-0116M-36-00 |
from US $5.06 |
||
|
20
|
20
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $3.04 |
||
|
21
|
21
97395-06022-00 Boulon |
97395-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
21
|
21
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
23
|
23
6H7-11631-00-96
Piston (Std)
ＳＴＤ |
6H7-11631-00-96 |
— | ||
|
23
|
23
6H7-11635-00-00
Piston (0.25Mm O/s)
０．２５ＭＭ Ｏ／Ｓ; ＡＰ |
6H7-11635-00-00 |
— | ||
|
23
|
23
6H7-11636-00-00
Piston (O.s.)
０．５０ＭＭ Ｏ／Ｓ; ＡＰ |
6H7-11636-00-00 |
— | ||
|
24
|
24
689-11610-11-00 Piston Ring Setピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ |
689-11610-11-00 |
from US $31.05 |
||
|
24
|
24
689-11610-21-00
Piston Ring Set Os (2Nd O/s)
０．５０ＭＭ Ｏ／Ｓ; ＡＰ |
689-11610-21-00 |
— | ||
|
24
|
24
689-11610-01-00 Piston Ring Setstdピストンリングセツト ; ＳＴＤ |
689-11610-01-00 |
from US $48.80 |
||
|
25
|
25
936-0220M-02-00 Pin, Dowel |
936-0220M-02-00 |
from US $2.02 |
||
|
26
|
26
689-11633-00-00 Pin, Pistonピン，ピストン; |
689-11633-00-00 |
from US $8.42 |
||
|
27
|
27
688-11634-00-00 Clip, Piston Pinクリツプ，ピストンピン; |
688-11634-00-00 |
from US $2.36 |
||
|
28
|
28
90201-20M27-00 Washer, Plate |
90201-20M27-00 |
from US $5.40 |
||
