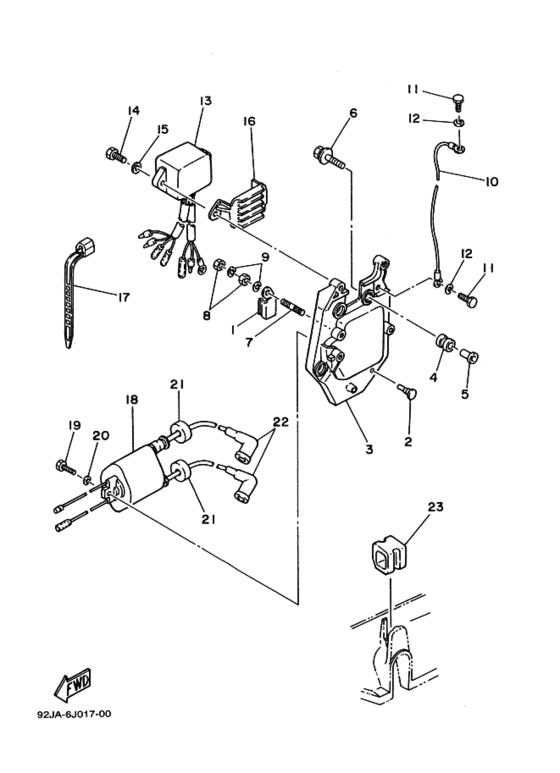

Electrical 1 Diagram Yamaha 25 E(M)KS/L
- Year
- 1993
- Model
- 25H
- Model code
- 6J0
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90465-08M05-00
Clamp
|
90465-08M05-00 |
— | ||
|
2
|
2
689-85547-00-00 Damperダンパ; |
689-85547-00-00 |
US $3.97 |
||
|
3
|
3
689-85542-00-94
Bracket
|
689-85542-00-94 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
6A0-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
6A0-82317-01-00 DAMPER IGNITION COILダンパ，イグニツシヨンコイル; |
6A0-82317-01-00 |
from US $2.36 |
||
|
5
|
5
624-42542-00-00 Collarパイプ; |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
5
|
5
90387-06119-00 Collarパイプ; |
90387-06119-00 |
from US $3.26 |
||
|
6
|
6
90119-06M88-00 Bolt, With Washer |
90119-06M88-00 |
from US $2.98 |
||
| replacement | |||||
|
6
|
6
90119-06311-00 BOLT WITH WASHER |
90119-06311-00 |
from US $1.21 |
||
|
7
|
7
90116-06M07-00 Goujon |
90116-06M07-00 |
from US $5.67 |
||
|
8
|
8
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
9
|
9
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
689-82519-00-00 Wire, Earth Leadワイヤ，ア−スリ−ド; |
689-82519-00-00 |
from US $10.28 |
||
|
11
|
11
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
689-85540-20-00 C.d.i. Unit AssemblyＣ．Ｄ．Ｉ．ユニツトアセンブリ; |
689-85540-20-00 |
US $568.81 |
||
| replacement | |||||
|
13
|
13
689-85540-21-00 C.d.i. Unit AssyＣ．Ｄ．Ｉ．ユニツトアセンブリ; |
689-85540-21-00 |
US $568.81 |
||
|
14
|
14
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
689-85548-01-00
Holder
ホルダ; |
689-85548-01-00 |
— | ||
|
17
|
17
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
18
|
18
689-85570-20-00 Ignition Coil Assemblyイグニツシヨンコイルアセンブリ; |
689-85570-20-00 |
US $221.06 |
||
| replacement | |||||
|
18
|
18
689-85570-21-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
689-85570-21-00 |
from US $221.06 |
||
|
19
|
19
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
19
|
19
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
22
|
22
663-82370-01-00 Plug Cap Assyプラグキヤツプアセンブリ; |
663-82370-01-00 |
from US $6.62 |
||
|
23
|
23
90480-17M08-00 Grommet |
90480-17M08-00 |
from US $7.37 |
||
