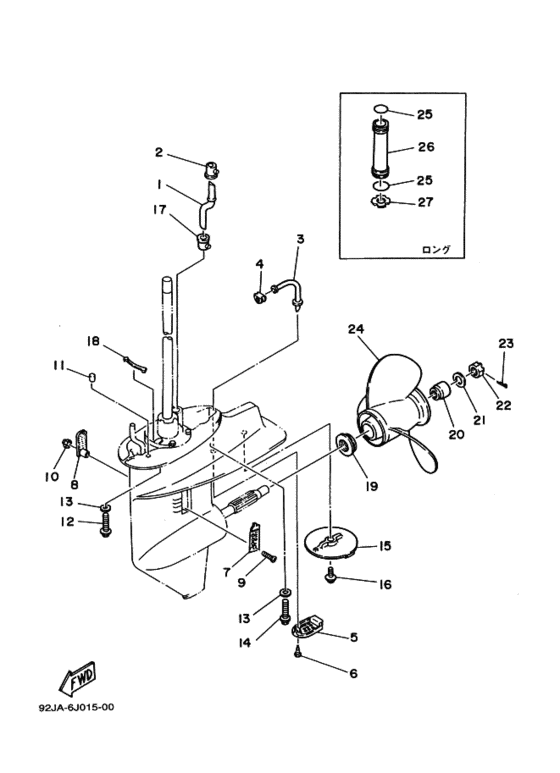

ﾛﾜ-ｹ-ｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 2 Diagram Yamaha 25 E(M)KS/L
- Year
- 1993
- Model
- 25H
- Model code
- 6J0
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
664-44361-00-00 Tube, Water 1チユ−ブ，ウオ−タ; ＵＲ シヨ−ト |
664-44361-00-00 |
from US $45.32 |
||
|
1
|
1
689-44361-10-00 Tube, Water 1チユ−ブ，ウオ−タ; ＵＲ ロング |
689-44361-10-00 |
from US $40.81 |
||
|
1
|
1
689-44361-20-00 Tube, Water 1チユ−ブ，ウオ−タ; ＵＲ ス−パ−ロング |
689-44361-20-00 |
US $29.08 |
||
|
1
|
1
689-44361-30-00
Tube, Water 1
チユ−ブ，ウオ−タ; ＵＲ ウルトラロング |
689-44361-30-00 |
— | ||
|
2
|
2
689-44366-00-00 Damper, Water Seal 2ダンパ，ウオータシール; |
689-44366-00-00 |
US $1.35 |
||
|
3
|
3
689-44362-10-00
Tube, Water 2
チユ−ブ，ウオ−タ; |
689-44362-10-00 |
— | ||
|
4
|
4
689-44368-00-00
Rubber, Water Seal 4
ラバ−，ウオ−タシ−ル ４; |
689-44368-00-00 |
— | ||
|
5
|
5
689-45321-00-00
Plate
プレート; |
689-45321-00-00 |
— | ||
|
6
|
6
97780-40112-00 Screw, Oval Head Tapping |
97780-40112-00 |
from US $1.84 |
||
|
7
|
7
689-45214-01-00 Cover, Water Inlet 1カバ−，ウオ−タインレツト; |
689-45214-01-00 |
from US $9.35 |
||
|
8
|
8
689-45215-01-00 Cover, Water Inlet 2カバ−，ウオ−タインレツト; |
689-45215-01-00 |
US $5.73 |
||
|
9
|
9
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
9
|
9
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
10
|
10
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
10
|
10
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
11
|
11
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
12
|
12
90105-10059-00 Bolt, Flange |
90105-10059-00 |
from US $10.51 |
||
|
13
|
13
929-90106-00-00 Washer, Plateワツシヤ，プレ−ト; |
929-90106-00-00 |
from US $1.18 |
||
|
14
|
14
90105-10M12-00 Bolt, Flange |
90105-10M12-00 |
from US $7.65 |
||
|
15
|
15
664-45371-01-00 Tab-Trimタブトリム; |
664-45371-01-00 |
from US $24.30 |
||
|
16
|
16
90105-08M02-00 Bolt, Flange |
90105-08M02-00 |
from US $4.96 |
||
|
17
|
17
626-44365-01-00 Damper, Water Seal 1ダンパ，ウオータシール; |
626-44365-01-00 |
US $3.54 |
||
|
18
|
18
689-44314-00-00 Spacerスペーサ; |
689-44314-00-00 |
US $6.66 |
||
|
19
|
19
664-45987-01-00 Spacer 1スペーサ; |
664-45987-01-00 |
from US $42.55 |
||
|
20
|
20
689-45997-00-00 Spacer 2スペーサ; |
689-45997-00-00 |
from US $16.16 |
||
|
21
|
21
92990-14200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-14200-00 |
from US $1.66 |
||
|
22
|
22
90171-14013-00 Nut, Castle |
90171-14013-00 |
from US $9.72 |
||
|
23
|
23
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
24
|
24
664-45941-01-EL Propeller (3X9-7/8"x9"-F)プロペラ ; ３Ｘ９−７／８ Ｘ９ −Ｆ; ＵＲ |
664-45941-01-EL |
US $216.91 |
||
| replacement | |||||
|
24
|
24
664-45941-01-00 Propeller (3X9-7/8"x9"-F)プロペラ ; ３Ｘ９−７／８ Ｘ９ −Ｆ; ＵＲ |
664-45941-01-00 |
from US $216.91 |
||
|
24
|
24
664-45943-01-EL Propeller (3X9-7/8"x8"-F)プロペラ ; ３Ｘ９−７／８ Ｘ８ −Ｆ; ＵＲ |
664-45943-01-EL |
US $216.91 |
||
| replacement | |||||
|
24
|
24
664-45943-01-00 Propeller (3X9-7/8"x8"-F)プロペラ ; ３Ｘ９−７／８ Ｘ８ −Ｆ; ＵＲ |
664-45943-01-00 |
from US $216.91 |
||
|
24
|
24
664-45945-00-EL Propeller (3X9-7/8"x10-1/2"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１０−１／２ −Ｆ; ＵＲ コウジヨウヒヨウジユン |
664-45945-00-EL |
US $216.91 |
||
| replacement | |||||
|
24
|
24
664-45945-00-00 Propeller (3X9-7/8"x10-1/2"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１０−１／２ −Ｆ; ＵＲ コウジヨウヒヨウジユン |
664-45945-00-00 |
from US $216.91 |
||
|
24
|
24
664-45947-01-EL Propeller (3X9-7/8"x11-1/4"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１１−１／４ −Ｆ; ＵＲ |
664-45947-01-EL |
US $216.91 |
||
| replacement | |||||
|
24
|
24
664-45947-01-00 Propeller (3X9-7/8"x11-1/4"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１１−１／４ −Ｆ; ＵＲ |
664-45947-01-00 |
from US $216.91 |
||
|
24
|
24
664-45949-02-EL
Propeller (3X9-7/8"x13"-F)
プロペラ ; ３Ｘ９−７／８ Ｘ１３ −Ｆ; ＵＲ |
664-45949-02-EL |
— | ||
| replacement | |||||
|
24
|
24
664-45949-02-00 Propeller (3X9-7/8"x13"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１３ −Ｆ; ＵＲ |
664-45949-02-00 |
from US $236.93 |
||
|
24
|
24
664-45952-00-EL Propeller (3X9-7/8"x14"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１４ −Ｆ; ＵＲ |
664-45952-00-EL |
US $216.91 |
||
| replacement | |||||
|
24
|
24
664-45952-00-00 Propeller (3X9-7/8"x14"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１４ −Ｆ; ＵＲ |
664-45952-00-00 |
from US $216.91 |
||
|
25
|
25
93210-26240-00 O-Ringロング |
93210-26240-00 |
from US $1.94 |
||
|
26
|
26
689-44362-00-94 Tube, Water 2チユ−ブ，ウオ−タ; ロング |
689-44362-00-94 |
US $33.05 |
||
|
27
|
27
689-44328-03-00 Plateプレート; ロング |
689-44328-03-00 |
from US $14.86 |
||
