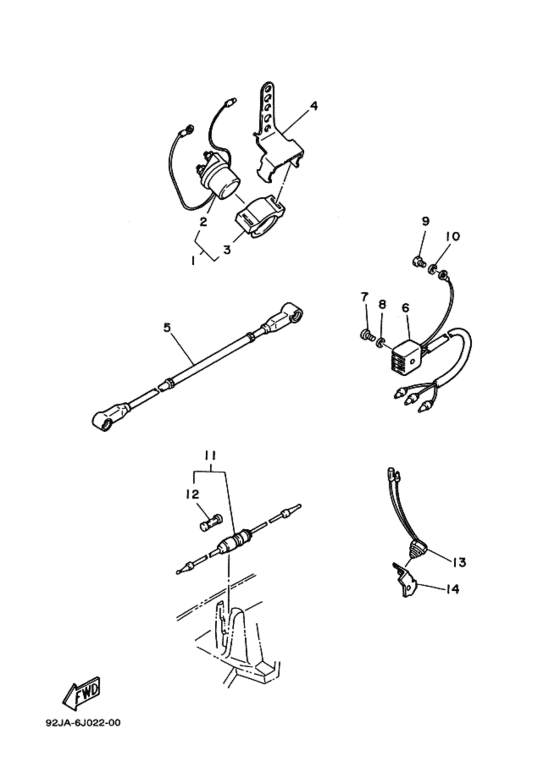

ｵﾙﾀﾈ-ﾄ 5 (25HEK ﾓﾃﾞﾙ) Diagram Yamaha 25 E(M)KS/L
- Year
- 1993
- Model
- 25H
- Model code
- 6J0
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J0-81940-00-00
Starter Relay Assy
スタ−タリレーアセンブリ; |
6J0-81940-00-00 |
— | ||
|
2
|
2
6J0-81941-10-00 Starter Rely Assy．スタ−タリレ−アセンブリ; |
6J0-81941-10-00 |
from US $114.81 |
||
|
3
|
3
6J0-81952-00-00
Holder, Relay
．ホルダ−， リレ−; |
6J0-81952-00-00 |
— | ||
|
4
|
4
6J0-81945-00-00
Plate, Switch Fitting
プレ−ト，スイツチフイツテイング; |
6J0-81945-00-00 |
— | ||
|
5
|
5
689-82531-02-00 Wire, Lead |
689-82531-02-00 |
US $20.54 |
||
| replacement | |||||
|
5
|
5
689-82531-03-00 Wire, Lead |
689-82531-03-00 |
US $49.52 |
||
|
6
|
6
664-81970-61-00 Rectifier Assemblyレクチフアイヤアセンブリ; |
664-81970-61-00 |
US $88.98 |
||
| replacement | |||||
|
6
|
6
664-81970-62-00 Rectifier Assyレクチフアイヤアセンブリ; |
664-81970-62-00 |
from US $88.98 |
||
|
7
|
7
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
7
|
7
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
8
|
8
92990-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
9
|
9
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
10
|
10
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
682-82150-10-00 Fuse Holder Assemblyフユ−ズホルダアセンブリ; |
682-82150-10-00 |
US $17.57 |
||
|
12
|
12
682-82151-00-00 Fuse．フユ−ズ; |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
12
|
12
682-82151-01-00 Fuse (20A)．フユ−ズ; |
682-82151-01-00 |
US $1.81 |
||
|
12
|
12
682-82151-02-00 FUSE．フユ−ズ; |
682-82151-02-00 |
from US $1.81 |
||
|
13
|
13
689-82540-01-00 Neutral Switch Assemblyニユ−トラルスイツチアセンブリ; |
689-82540-01-00 |
from US $44.63 |
||
|
14
|
14
689-15774-40-00
Stay 4
|
689-15774-40-00 |
— | ||
