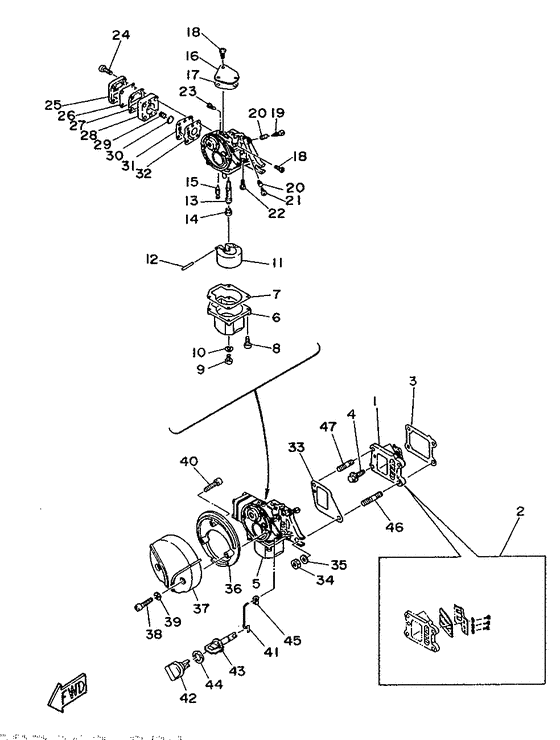

Intake Diagram Yamaha 4 CMHS/L
- Year
- 1989
- Model
- 4A
- Model code
- 6E0
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 4
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E0-13610-00-00 Reed Valve Assy |
6E0-13610-00-00 |
from US $61.16 |
||
|
02
|
02
6E0-W0004-00-00 Reed Set |
6E0-W0004-00-00 |
from US $22.53 |
||
|
03
|
03
6E0-13621-00-00
Gasket, Valve Seat
|
6E0-13621-00-00 |
— | ||
| replacement | |||||
|
03
|
03
6E0-13621-A2-00 Gasket, Valve Seat |
6E0-13621-A2-00 |
from US $5.67 |
||
|
04
|
04
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
05
|
05
6E0-14301-02-00 Carburetor Assy 1 |
6E0-14301-02-00 |
US $344.02 |
||
| replacement | |||||
|
05
|
05
6E0-14301-05-00 Carburetor Assembly 1 |
6E0-14301-05-00 |
from US $344.02 |
||
|
06
|
06
6E0-14381-01-00 Body, Float Chamber |
6E0-14381-01-00 |
US $34.99 |
||
| replacement | |||||
|
06
|
06
6E0-14180-00-00 Float Chamber Assy |
6E0-14180-00-00 |
from US $33.91 |
||
|
07
|
07
6E0-14384-00-00 Gasket, Float Chamber |
6E0-14384-00-00 |
from US $7.08 |
||
|
08
|
08
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
09
|
09
677-14383-00-00
Screw, Drain
|
677-14383-00-00 |
— | ||
| replacement | |||||
|
09
|
09
677-14383-01-00 Screw, Drain |
677-14383-01-00 |
from US $6.94 |
||
|
10
|
10
6A1-14398-00-00 Gasket |
6A1-14398-00-00 |
from US $3.47 |
||
|
11
|
11
6E7-14385-00-00 Float |
6E7-14385-00-00 |
from US $26.49 |
||
|
12
|
12
647-14386-00-00
Pin, Float
|
647-14386-00-00 |
— | ||
| replacement | |||||
|
12
|
12
647-14386-10-00 Pin, Float |
647-14386-10-00 |
from US $2.88 |
||
|
13
|
13
6E0-14341-01-00 Nozzle, Main |
6E0-14341-01-00 |
from US $21.98 |
||
|
14
|
14
648-14343-40-00 Jet, Main |
648-14343-40-00 |
from US $10.30 |
||
|
15
|
15
6E0-14392-00-00 Valve, Needle |
6E0-14392-00-00 |
from US $22.37 |
||
|
16
|
16
6E0-14157-00-00 Cover, Mixing |
6E0-14157-00-00 |
from US $5.67 |
||
|
17
|
17
6E0-14227-00-00 Washer |
6E0-14227-00-00 |
from US $5.53 |
||
|
18
|
18
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
19
|
19
94714-32300-00
Plug, Spark
|
94714-32300-00 |
— | ||
|
20
|
20
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
21
|
21
648-14321-00-00
Screw, Pan Head
|
648-14321-00-00 |
— | ||
| replacement | |||||
|
21
|
21
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
22
|
22
648-14342-23-00 Jet, Pilot #xx |
648-14342-23-00 |
from US $8.19 |
||
|
23
|
23
647-14326-00-00 Screw, Guide |
647-14326-00-00 |
from US $3.68 |
||
|
24
|
24
98580-04020-00 Screw, Pan Head |
98580-04020-00 |
from US $2.69 |
||
|
25
|
25
6E0-24413-00-00 Body 2 |
6E0-24413-00-00 |
from US $10.20 |
||
|
26
|
26
6E0-24471-00-00 Diaphragm |
6E0-24471-00-00 |
from US $16.29 |
||
|
27
|
27
6E0-24435-00-00 Gasket, Body 2 |
6E0-24435-00-00 |
from US $5.95 |
||
|
28
|
28
6E0-24412-00-00 Body 1 |
6E0-24412-00-00 |
from US $21.54 |
||
|
29
|
29
6E0-24423-00-00 Spring, Diaphragm |
6E0-24423-00-00 |
from US $3.12 |
||
|
30
|
30
6E0-14346-00-00 Plate |
6E0-14346-00-00 |
from US $3.26 |
||
|
31
|
31
6E0-24411-00-00 Diaphragm |
6E0-24411-00-00 |
from US $15.84 |
||
|
32
|
32
6E0-24434-00-00 Gasket, Body |
6E0-24434-00-00 |
from US $9.78 |
||
|
33
|
33
6E0-14198-00-00
Gasket
|
6E0-14198-00-00 |
— | ||
| replacement | |||||
|
33
|
33
6E0-14198-A0-00 Gasket |
6E0-14198-A0-00 |
from US $3.68 |
||
|
34
|
34
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
34
|
34
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
34
|
34
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
|
35
|
35
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
36
|
36
6E0-14417-00-00 Cover 1 |
6E0-14417-00-00 |
from US $9.07 |
||
|
37
|
37
6E0-14418-00-00 Cover 2 |
6E0-14418-00-00 |
from US $11.05 |
||
|
38
|
38
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
38
|
38
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
39
|
39
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
40
|
40
977-80407-20-00
Screw, Tapping
|
977-80407-20-00 |
— | ||
| replacement | |||||
|
40
|
40
97780-40320-00 Screw, Tapping |
97780-40320-00 |
from US $2.55 |
||
|
41
|
41
6E0-41256-00-00 Rod, Choke 1 |
6E0-41256-00-00 |
from US $4.53 |
||
|
42
|
42
6E0-41271-00-00
Knob, Choke
|
6E0-41271-00-00 |
— | ||
| replacement | |||||
|
42
|
42
6E0-41271-01-00 Knob, Choke |
6E0-41271-01-00 |
from US $9.21 |
||
|
43
|
43
6E0-41272-00-00 Knob, Choke |
6E0-41272-00-00 |
from US $9.21 |
||
|
44
|
44
90202-12M16-00 Washer, Plate |
90202-12M16-00 |
from US $2.55 |
||
|
45
|
45
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.76 |
||
|
46
|
46
956-21063-25-00
Bolt, Stud
|
956-21063-25-00 |
— | ||
| replacement | |||||
|
46
|
46
956-27063-25-00 Bolt, Stud(6E0) |
956-27063-25-00 |
from US $2.74 |
||
|
47
|
47
90116-06M08-00 Bolt, Stud |
90116-06M08-00 |
from US $2.98 |
||
