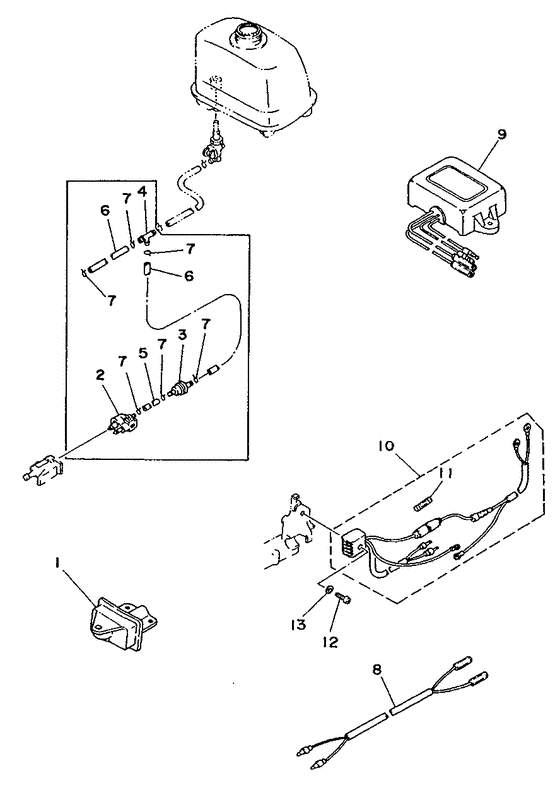

Optional parts 1 Diagram Yamaha 4 CMHS/L
- Year
- 1989
- Model
- 4A
- Model code
- 6E0
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 4
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E0-15758-80-EJ
Guide, Rope
|
6E0-15758-80-EJ |
— | ||
|
02
|
02
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
02
|
02
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $29.47 |
||
|
02
|
02
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $30.10 |
||
|
03
|
03
646-24251-02-00 Strainer 1 |
646-24251-02-00 |
from US $14.45 |
||
|
04
|
04
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $6.94 |
||
|
05
|
05
90445-09068-00 Hose (L110) |
90445-09068-00 |
from US $1.98 |
||
| replacement | |||||
|
05
|
05
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
06
|
06
904-45092-20-00
Hose (L420)
|
904-45092-20-00 |
— | ||
| replacement | |||||
|
06
|
06
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
07
|
07
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
08
|
08
6E0-83553-20-00 Wire, Lead |
6E0-83553-20-00 |
from US $49.91 |
||
|
09
|
09
663-81910-10-00 Voltage Regulator Assy |
663-81910-10-00 |
US $296.89 |
||
|
10
|
10
676-81970-00-00 Rectifier Assy |
676-81970-00-00 |
US $92.71 |
||
| replacements | |||||
|
10
|
10
676-81970-01-00 Rectifier Assy |
676-81970-01-00 |
US $92.71 |
||
|
10
|
10
676-81970-02-00 Rectifier Assy |
676-81970-02-00 |
from US $92.71 |
||
|
11
|
11
663-82151-00-00 Fuse (12V-20A) |
663-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
11
|
11
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.84 |
||
|
11
|
11
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.84 |
||
|
12
|
12
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
