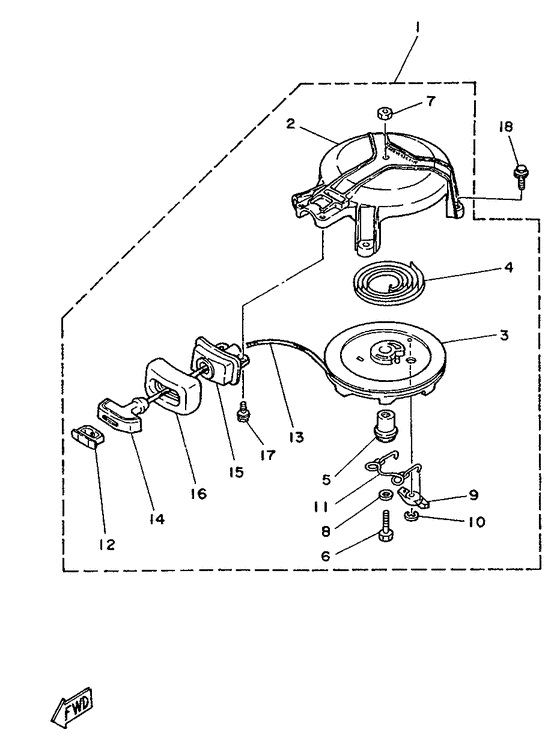

Starter Diagram Yamaha 4 CMHS/L
- Year
- 1989
- Model
- 4A
- Model code
- 6E0
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 4
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E0-15710-03-94
Starter Assy
|
6E0-15710-03-94 |
— | ||
| replacement | |||||
|
01
|
01
6E0-15710-04-94
Starter Assy
|
6E0-15710-04-94 |
— | ||
|
02
|
02
6E4-15711-71-94 Case, Starter |
6E4-15711-71-94 |
US $77.51 |
||
| replacement | |||||
|
02
|
02
6E4-15711-72-00 Case, Starter |
6E4-15711-72-00 |
from US $74.52 |
||
|
03
|
03
6E0-15714-01-00 Drum, Sheave |
6E0-15714-01-00 |
from US $54.47 |
||
|
04
|
04
90510-08M03-00 Spring, Spiral |
90510-08M03-00 |
from US $35.24 |
||
|
05
|
05
6E0-15717-00-00 Shaft, Starter |
6E0-15717-00-00 |
US $12.61 |
||
| replacement | |||||
|
05
|
05
6E0-15717-01-00 Shaft, Starter |
6E0-15717-01-00 |
US $16.61 |
||
|
06
|
06
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
06
|
06
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
07
|
07
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
07
|
07
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
08
|
08
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
09
|
09
677-15741-01-00 Pawl, Drive |
677-15741-01-00 |
from US $5.06 |
||
|
10
|
10
93430-06M02-00 Circlip |
93430-06M02-00 |
from US $1.36 |
||
|
11
|
11
6E0-15705-00-00 Spring, Drive Pawl |
6E0-15705-00-00 |
from US $5.74 |
||
|
12
|
12
6G1-15779-00-00 Cover |
6G1-15779-00-00 |
from US $3.68 |
||
|
14
|
14
6G1-15755-00-00 Handle, Starter |
6G1-15755-00-00 |
from US $8.76 |
||
|
15
|
15
6E0-15758-01-00 Guide, Rope |
6E0-15758-01-00 |
from US $50.29 |
||
|
16
|
16
6E0-15761-00-00 Seal, Rubber 1 |
6E0-15761-00-00 |
US $20.26 |
||
|
17
|
17
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
18
|
18
90105-06M15-00 Bolt, Flange |
90105-06M15-00 |
from US $2.05 |
||
