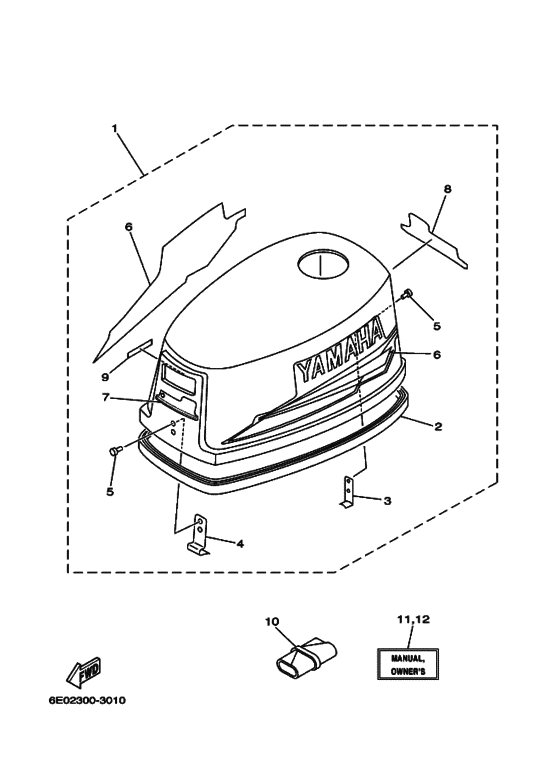

Top cowling Diagram Yamaha 4 CMHS/L
- Year
- 2003
- Model
- 4A
- Model code
- 6E0
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 4
- Sales region
- Europe (060 / 140)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E0-42610-40-4D
Top Cowling Assy
|
6E0-42610-40-4D |
— | ||
| replacement | |||||
|
1
|
1
6E0-42610-40-00
Top Cowling Assy
|
6E0-42610-40-00 |
— | ||
|
2
|
2
6E0-42615-00-00 Seal |
6E0-42615-00-00 |
US $41.86 |
||
|
3
|
3
6E0-42647-01-00 Holder, Clamp Band |
6E0-42647-01-00 |
from US $9.07 |
||
|
4
|
4
6E0-42651-02-00 Hook |
6E0-42651-02-00 |
from US $4.64 |
||
|
5
|
5
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
6
|
6
6E0-W0070-14-00 Graphic Set |
6E0-W0070-14-00 |
from US $37.44 |
||
|
7
|
7
6E0-42677-20-00 Graphic, Front |
6E0-42677-20-00 |
US $3.40 |
||
| replacement | |||||
|
7
|
7
6E0-42678-40-00 Graphic, Rear |
6E0-42678-40-00 |
from US $3.40 |
||
|
8
|
8
6E0-42678-12-00 Graphic, Rear |
6E0-42678-12-00 |
US $3.40 |
||
| replacement | |||||
|
8
|
8
6E0-42678-40-00 Graphic, Rear |
6E0-42678-40-00 |
from US $3.40 |
||
|
9
|
9
6E0-44191-11-00 Indicator, Shift |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
9
|
9
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
from US $4.68 |
||
|
10
|
10
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
| replacements | |||||
|
10
|
10
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
10
|
10
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
11
|
11
6A1-28199-7L-A0
Manual,owner's
UR (E,F,S) |
6A1-28199-7L-A0 |
— | ||
|
11
|
11
6A1-28199-7L-B0
Manual,owner's
UR (D,NL,I) |
6A1-28199-7L-B0 |
— | ||
|
12
|
12
6A1-28199-8M-A0
Manual,owner's
UR (DK,P,GR) |
6A1-28199-8M-A0 |
— | ||
|
12
|
12
6A1-28199-8M-B0
Manual,owner's
UR (N,S,SS) |
6A1-28199-8M-B0 |
— | ||
