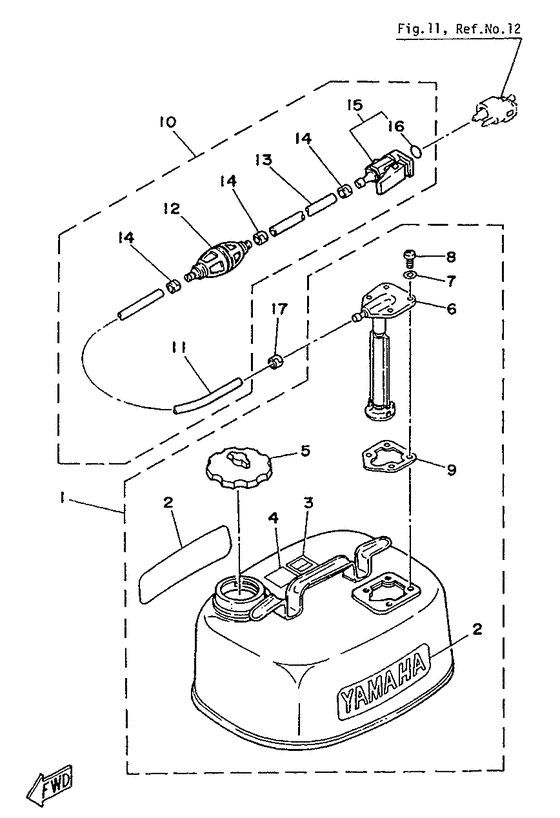

Fuel Diagram Yamaha 4 CMHS/L
- Year
- 1987
- Model
- 4A
- Model code
- 6E1
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 4
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6Y0-24203-81-24
Fuel Tank Assy
|
6Y0-24203-81-24 |
— | ||
| replacement | |||||
|
01
|
01
6Y0-W2420-63-24
Fuel Tank Assy
|
6Y0-W2420-63-24 |
— | ||
|
02
|
02
6Y1-24246-00-00
Graphic, Side
|
6Y1-24246-00-00 |
— | ||
|
03
|
03
6Y1-24255-80-00
Graphic, Fuel Tank 8
|
6Y1-24255-80-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
6Y1-24257-00-00
Graphic
|
6Y1-24257-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
647-24610-03-00
Cap Assy
|
647-24610-03-00 |
— | ||
| replacement | |||||
|
05
|
05
6Y0-24610-00-00
Cap Assy
|
6Y0-24610-00-00 |
— | ||
|
06
|
06
6Y0-24275-60-00
Fuel Meter Comp
|
6Y0-24275-60-00 |
— | ||
|
07
|
07
6Y1-24329-00-00 Seal |
6Y1-24329-00-00 |
from US $1.70 |
||
|
08
|
08
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
08
|
08
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
09
|
09
663-24268-00-00 Gasket, Fuel Meter |
663-24268-00-00 |
US $8.36 |
||
|
10
|
10
6Y0-24306-01-00 Fuel Pipe Comp. 1 |
6Y0-24306-01-00 |
US $88.70 |
||
| replacement | |||||
|
10
|
10
6YL-24306-64-00 Fuel Pipe Comp. 1 |
6YL-24306-64-00 |
from US $268.03 |
||
|
11
|
11
90445-11M79-00 HoseHose (1500mm) |
90445-11M79-00 |
US $34.57 |
||
| replacement | |||||
|
11
|
11
90445-11M81-00 Hose (L3000) |
90445-11M81-00 |
from US $34.57 |
||
|
12
|
12
6Y1-24360-02-00 Primer Pump Assy |
6Y1-24360-02-00 |
US $32.59 |
||
| replacement | |||||
|
12
|
12
6YL-24360-63-00 PIPE, JOINT 2 |
6YL-24360-63-00 |
from US $54.97 |
||
|
13
|
13
90445-11M05-00 Hose |
90445-11M05-00 |
US $10.77 |
||
| replacement | |||||
|
13
|
13
90445-11M78-00 Hose |
90445-11M78-00 |
US $10.34 |
||
|
14
|
14
650-24351-01-00 Band 1 |
650-24351-01-00 |
US $2.98 |
||
| replacement | |||||
|
14
|
14
650-24351-51-00 Band 1 |
650-24351-51-00 |
from US $2.98 |
||
|
15
|
15
6G1-24305-00-00 Fuel Pipe Joint Comp. 2 |
6G1-24305-00-00 |
US $28.34 |
||
| replacement | |||||
|
15
|
15
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $25.26 |
||
|
16
|
16
93210-08267-00
O-Ring
|
93210-08267-00 |
— | ||
|
17
|
17
650-24351-01-00 Band 1 |
650-24351-01-00 |
US $2.98 |
||
| replacement | |||||
|
17
|
17
650-24351-51-00 Band 1 |
650-24351-51-00 |
from US $2.98 |
||
