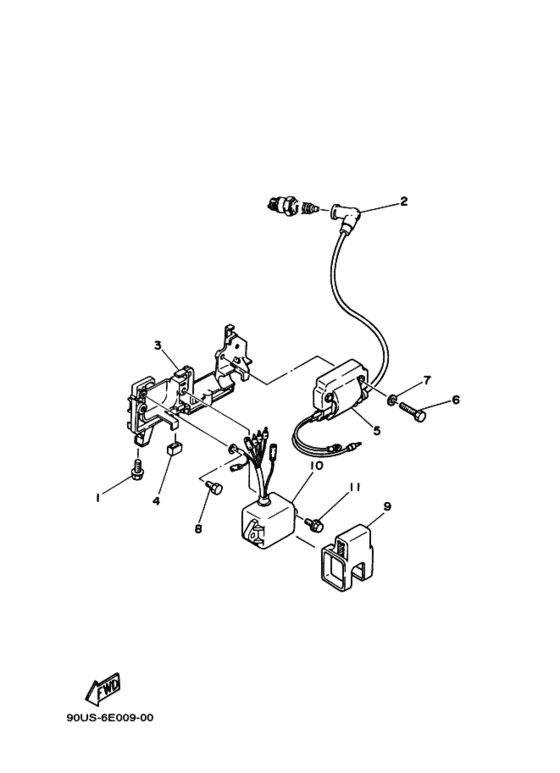

Electrical 1 Diagram Yamaha 4 CMHS/L
- Year
- 1995
- Model
- 4A
- Model code
- 6E1
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 4
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
1
|
1
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
1
|
1
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
1
|
1
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
2
|
2
663-82370-01-00 Plug Cap Assyプラグキヤツプアセンブリ; |
663-82370-01-00 |
from US $7.62 |
||
|
3
|
3
6E0-82316-00-94 Bracket, Ign Coilブラケツト，イグニツシヨンコイル; |
6E0-82316-00-94 |
US $28.19 |
||
| replacement | |||||
|
3
|
3
6E0-82316-01-00 Bracket, Ignition Coilブラケツト，イグニツシヨンコイル; |
6E0-82316-01-00 |
from US $28.19 |
||
|
4
|
4
6E0-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; |
6E0-82317-00-00 |
from US $3.69 |
||
|
5
|
5
6E0-85570-12-00 Ignition Coil Assemblyイグニツシヨンコイルアセンブリ; |
6E0-85570-12-00 |
US $66.69 |
||
| replacement | |||||
|
5
|
5
6E0-85570-21-00
Ignition Coil Assy
イグニツシヨンコイルアセンブリ; |
6E0-85570-21-00 |
— | ||
|
6
|
6
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
6
|
6
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
7
|
7
929-06066-00-00
Washer
ワツシヤ，プレート; |
929-06066-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
8
|
8
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
8
|
8
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
9
|
9
6E0-85548-00-00 Holderホルダ; |
6E0-85548-00-00 |
from US $7.08 |
||
|
10
|
10
6E0-85540-71-00 C.d.i. Unit Assy．．．ＣＤＩユニツトアセンブリ; |
6E0-85540-71-00 |
US $197.57 |
||
| replacement | |||||
|
10
|
10
6E0-85540-72-00 C.d.i. Unit Assy．．．ＣＤＩユニツトアセンブリ; |
6E0-85540-72-00 |
from US $123.93 |
||
|
11
|
11
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
11
|
11
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
11
|
11
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
11
|
11
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
