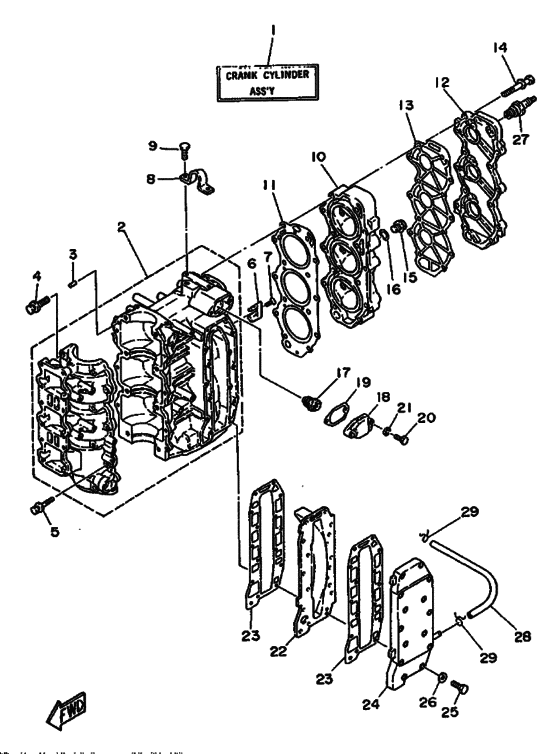

Cylinder & crankcase Diagram Yamaha 40 M(E/O)S/L
- Year
- 1986
- Model
- 40H
- Model code
- 6H4
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
6H4-15100-01-94
Crankcase Assy
|
6H4-15100-01-94 |
— | ||
| replacements | |||||
|
2
|
2
6H4-15100-09-94
Crankcase Assy
|
6H4-15100-09-94 |
— | ||
|
2
|
2
6H4-15100-02-94
Crankcase Assembly
|
6H4-15100-02-94 |
— | ||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
4
|
4
901-1908M-19-00
Bolt, With Washer
|
901-1908M-19-00 |
— | ||
| replacement | |||||
|
4
|
4
90119-08019-00 Bolt, With Washer |
90119-08019-00 |
from US $4.11 |
||
|
5
|
5
90119-06M13-00 Bolt, With Washer |
90119-06M13-00 |
from US $4.39 |
||
|
6
|
6
688-11325-00-00 Anode |
688-11325-00-00 |
from US $9.07 |
||
|
7
|
7
98680-04016-00 Screw, Flat Head |
98680-04016-00 |
from US $1.39 |
||
| replacements | |||||
|
7
|
7
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.34 |
||
|
7
|
7
98780-04016-00 Screw, Flat Head (Fe4) |
98780-04016-00 |
from US $2.13 |
||
|
8
|
8
6H4-11119-00-00 Hanger, Engine |
6H4-11119-00-00 |
US $6.38 |
||
| replacement | |||||
|
8
|
8
6H4-11119-01-00 Hanger, Engine |
6H4-11119-01-00 |
from US $6.38 |
||
|
9
|
9
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
9
|
9
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
9
|
9
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
9
|
9
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
9
|
9
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
9
|
9
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
10
|
10
6H4-11111-00-94
Head, Cylinder 1
|
6H4-11111-00-94 |
— | ||
| replacements | |||||
|
10
|
10
6H4-11111-01-1S
Head, Cylinder 1
|
6H4-11111-01-1S |
— | ||
|
10
|
10
6H4-11111-01-94
Head, Cylinder 1
|
6H4-11111-01-94 |
— | ||
|
11
|
11
6H4-11181-00-00 Gasket, Cylinder Head 1 |
6H4-11181-00-00 |
US $83.17 |
||
| replacement | |||||
|
11
|
11
6H4-11181-A2-00 Gasket, Cylinder Head 1 |
6H4-11181-A2-00 |
from US $48.28 |
||
|
12
|
12
6H4-11191-00-9M
Cover, Cylinder Head 1
|
6H4-11191-00-9M |
— | ||
| replacements | |||||
|
12
|
12
6H4-11191-01-1S
Cover, Cylinder Head 1
|
6H4-11191-01-1S |
— | ||
|
12
|
12
6H4-11191-01-9M
Cover, Cylinder Head 1
|
6H4-11191-01-9M |
— | ||
|
13
|
13
6H4-11193-00-00 Gasket, Head Cover 1 |
6H4-11193-00-00 |
US $21.96 |
||
| replacement | |||||
|
13
|
13
6H4-11193-A1-00 Gasket, Head Cover 1 |
6H4-11193-A1-00 |
from US $12.90 |
||
|
14
|
14
90119-08M29-00 Bolt, With Washer |
90119-08M29-00 |
US $7.93 |
||
| replacement | |||||
|
14
|
14
90119-08015-00 Bolt, With Washer |
90119-08015-00 |
from US $4.14 |
||
|
17
|
17
6E5-12411-10-00 Thermostat |
6E5-12411-10-00 |
US $50.01 |
||
| replacement | |||||
|
17
|
17
6E5-12411-30-00 Thermostat |
6E5-12411-30-00 |
from US $40.02 |
||
|
18
|
18
6H4-12413-00-9M Cover, Thermostat |
6H4-12413-00-9M |
US $34 |
||
| replacement | |||||
|
18
|
18
6H4-12413-00-1S Cover, Thermostat |
6H4-12413-00-1S |
from US $17.71 |
||
|
19
|
19
6H4-12414-00-00 Gasket, Cover |
6H4-12414-00-00 |
US $3.97 |
||
| replacement | |||||
|
19
|
19
61A-12414-A0-00 Gasket, Cover |
61A-12414-A0-00 |
from US $3.97 |
||
|
22
|
22
6H4-41111-00-9M Inner Cover, Exhaust |
6H4-41111-00-9M |
US $54.30 |
||
| replacement | |||||
|
22
|
22
6H4-41111-00-1S Inner Cover, Exhaust |
6H4-41111-00-1S |
from US $54.30 |
||
|
23
|
23
6H4-41114-00-00 Gasket, Exhaust Outer Cover |
6H4-41114-00-00 |
US $13.88 |
||
| replacement | |||||
|
23
|
23
6H4-41114-A0-00 Gasket, Exhaust Cover |
6H4-41114-A0-00 |
from US $10.30 |
||
|
24
|
24
6H4-41113-00-9M Outer Cover, Exhaust |
6H4-41113-00-9M |
US $65.35 |
||
| replacement | |||||
|
24
|
24
6H4-41113-00-1S Outer Cover, Exhaust |
6H4-41113-00-1S |
from US $65.35 |
||
|
25
|
25
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
25
|
25
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $1.66 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
947-02002-71-00
Plug, Spark (Ngk Br7Hs-10)
|
947-02002-71-00 |
— | ||
| replacement | |||||
|
27
|
27
BR7-HS000-00-00 Plug, Spark (10 in pack) |
BR7-HS000-00-00 |
US $19.60 |
||
|
28
|
28
90445-09M37-00 Hose (L420) |
90445-09M37-00 |
from US $6.52 |
||
| replacements | |||||
|
28
|
28
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
28
|
28
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
29
|
29
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
