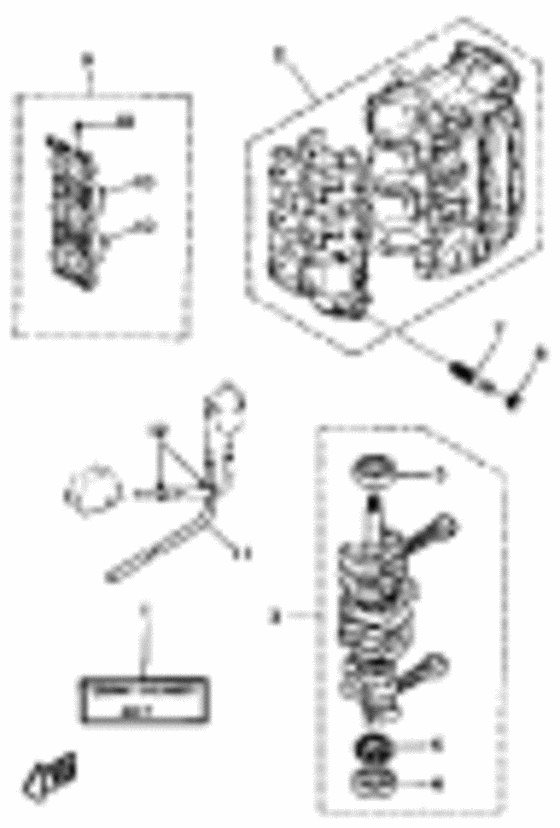

Crankcase Diagram Yamaha 40 ETL/UL
- Year
- 1986
- Model
- 40
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-W0090-13-EK
Crank-Cylinder. Assembly. (Ref.# 2~28 & Grid A-4, Ref. #)
2~28 & GRID A-4, REF. # |
6H4-W0090-13-EK |
— | ||
| replacement | |||||
|
1
|
1
6H4-W0090-13-4D
element
2~28 & GRID A-4, REF. # |
6H4-W0090-13-4D |
— | ||
|
2
|
2
6H4-15100-19-94
Crankcase Assembly
|
6H4-15100-19-94 |
— | ||
|
3
|
3
6H4-11400-14-00 Crankshaft Assy |
6H4-11400-14-00 |
from US $1,623.60 |
||
|
4
|
4
93306-30564-00 Bearing |
93306-30564-00 |
from US $51.53 |
||
| replacement | |||||
|
4
|
4
933-06305-71-00 Bearing |
933-06305-71-00 |
from US $50.60 |
||
|
5
|
5
933-06305-U8-00 Bearing |
933-06305-U8-00 |
from US $39.02 |
||
|
6
|
6
6H4-11536-00-00 Gear, Drive |
6H4-11536-00-00 |
from US $120.34 |
||
|
7
|
7
6H4-11537-01-00 Gear, Driven |
6H4-11537-01-00 |
from US $62.03 |
||
|
8
|
8
6H1-13117-01-00 Collar, Distance |
6H1-13117-01-00 |
from US $18.32 |
||
|
9
|
9
6H4-13641-11-94
Manifold 1
|
6H4-13641-11-94 |
— | ||
|
10
|
10
6H1-14485-00-00 Pipe, Joint |
6H1-14485-00-00 |
from US $5.38 |
||
|
11
|
11
6H4-24311-00-00 Pipe, Fuel 1 |
6H4-24311-00-00 |
from US $5.38 |
||
|
12
|
12
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
