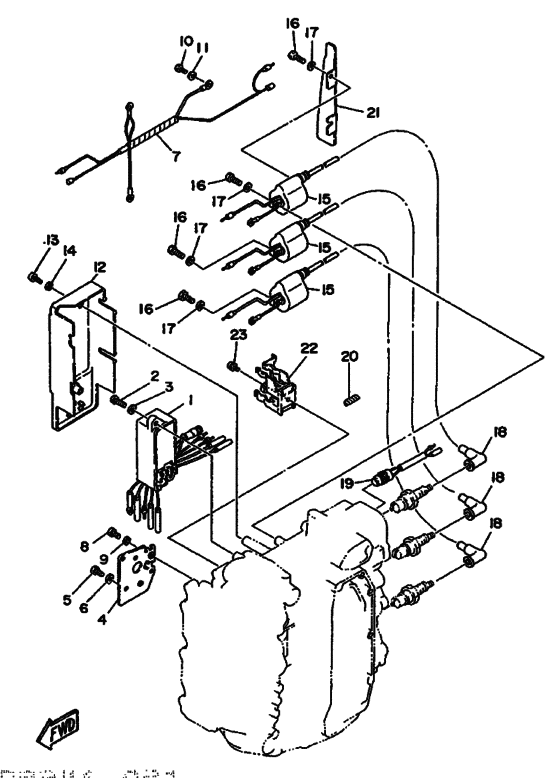

Electrical Diagram Yamaha 40 M(E/O)S/L
- Year
- 1988
- Model
- 40H
- Model code
- 6H4
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-85540-21-00 Cdi Unit Assembly |
6H4-85540-21-00 |
US $517.88 |
||
|
2
|
2
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
2
|
2
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
6H4-81975-00-00
Plate, Rectifr Ftng
|
6H4-81975-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
6H4-82531-01-00
Wire, Lead
|
6H4-82531-01-00 |
— | ||
|
8
|
8
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
6H4-81916-00-00 Cover, Terminal |
6H4-81916-00-00 |
from US $17.14 |
||
|
13
|
13
92580-06025-00 Screw |
92580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
13
|
13
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
6H4-85570-20-00 Ignition Coil Assembly |
6H4-85570-20-00 |
US $147.83 |
||
| replacement | |||||
|
15
|
15
6H4-85570-21-00 Ignition Coil Assy |
6H4-85570-21-00 |
from US $147.83 |
||
|
16
|
16
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
18
|
18
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
19
|
19
689-82560-00-00 Thermo Switch Assy |
689-82560-00-00 |
from US $68.25 |
||
|
20
|
20
90446-10M02-00 Hose |
90446-10M02-00 |
US $4.68 |
||
| replacement | |||||
|
20
|
20
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
21
|
21
6H4-14477-00-00
Plate
|
6H4-14477-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
6H4-82522-00-00
Clamp, Coupler (6H4-82552-00)
|
6H4-82522-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90159-06M07-00
Screw, With Washer
(40HEO/40HEPO MODEL) |
90159-06M07-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
(40HEO/40HEPO MODEL) |
999-99999-99-00 |
— | ||
