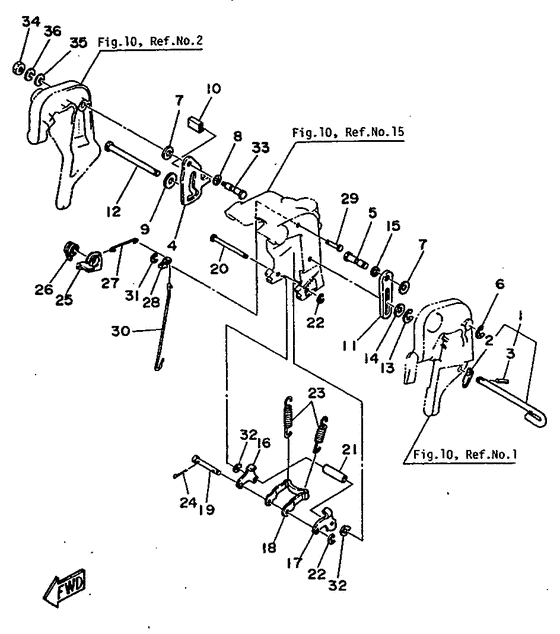

Bracket 2 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1985
- Model
- 40H
- Model code
- 6H4
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H4-43160-00-00 Tilt Rod Assembly |
6H4-43160-00-00 |
US $41.31 |
||
| replacement | |||||
|
01
|
01
6H4-43160-01-00 Tilt Rod Assy |
6H4-43160-01-00 |
from US $41.31 |
||
|
02
|
02
676-43165-00-00 Plate, Tilt Lock |
676-43165-00-00 |
from US $7.37 |
||
|
03
|
03
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
04
|
04
6H4-43181-01-00
Lever, Tilt Stop
|
6H4-43181-01-00 |
— | ||
|
05
|
05
90249-12M14-00 Pin |
90249-12M14-00 |
US $10.48 |
||
| replacement | |||||
|
05
|
05
90249-12M27-00 Pin |
90249-12M27-00 |
from US $10.48 |
||
|
06
|
06
93430-10M00-00 Circlip |
93430-10M00-00 |
US $1.42 |
||
| replacement | |||||
|
06
|
06
99080-10600-00 Circlip |
99080-10600-00 |
from US $1.50 |
||
|
07
|
07
90202-12M01-00 Washer, Plate |
90202-12M01-00 |
from US $2.55 |
||
|
08
|
08
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.70 |
||
|
09
|
09
90202-12092-00 Washer, Plate |
90202-12092-00 |
from US $2.55 |
||
|
10
|
10
663-43318-00-00 Cover |
663-43318-00-00 |
from US $5.28 |
||
|
11
|
11
6H4-43627-00-00
Stopper 1
|
6H4-43627-00-00 |
— | ||
|
12
|
12
90249-12M17-00 Pin |
90249-12M17-00 |
US $15.58 |
||
| replacement | |||||
|
12
|
12
90249-12M28-00 Pin |
90249-12M28-00 |
from US $15.91 |
||
|
13
|
13
93430-10M00-00 Circlip |
93430-10M00-00 |
US $1.42 |
||
| replacement | |||||
|
13
|
13
99080-10600-00 Circlip |
99080-10600-00 |
from US $1.50 |
||
|
14
|
14
90202-12M01-00 Washer, Plate |
90202-12M01-00 |
from US $2.55 |
||
|
15
|
15
90206-12M00-00 Washer, Wave |
90206-12M00-00 |
from US $3.26 |
||
|
16
|
16
6H4-43614-00-00
Plate, Tilt Lock 1
|
6H4-43614-00-00 |
— | ||
|
17
|
17
6H4-43615-00-00
Plate, Tilt Lock
|
6H4-43615-00-00 |
— | ||
|
18
|
18
6H4-43613-00-00
Arm, Tilt Lock
|
6H4-43613-00-00 |
— | ||
|
19
|
19
6H4-43659-00-00 Shaft, Reverse Lock |
6H4-43659-00-00 |
from US $8.50 |
||
|
20
|
20
6H4-43611-00-00
Shaft, Tilt Lock
|
6H4-43611-00-00 |
— | ||
|
21
|
21
90387-07M64-00 Collar |
90387-07M64-00 |
from US $3.83 |
||
|
22
|
22
93430-06M02-00 Circlip |
93430-06M02-00 |
from US $1.70 |
||
|
23
|
23
90506-30M18-00
Spring, Tension
|
90506-30M18-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
91490-20012-00 Pin. Cotter |
91490-20012-00 |
US $1.13 |
||
| replacement | |||||
|
24
|
24
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
25
|
25
6H4-43631-01-00
Lever, Tilt 1
|
6H4-43631-01-00 |
— | ||
|
26
|
26
689-43643-00-00 Spring |
689-43643-00-00 |
from US $4.96 |
||
|
27
|
27
6H4-43616-00-00 Rod, Tilt Lock |
6H4-43616-00-00 |
from US $4.72 |
||
|
28
|
28
682-43641-00-00 Lever, Tilt |
682-43641-00-00 |
US $6.80 |
||
| replacement | |||||
|
28
|
28
682-43641-01-00 Lever, Tilt |
682-43641-01-00 |
from US $6.80 |
||
|
29
|
29
90249-06117-00 Pin, Spec''l Shape |
90249-06117-00 |
US $2.41 |
||
| replacement | |||||
|
29
|
29
90249-06M23-00 Pin |
90249-06M23-00 |
from US $2.41 |
||
|
30
|
30
6H4-43617-00-00 Rod, Tilt Lock 2 |
6H4-43617-00-00 |
US $4.84 |
||
|
31
|
31
93430-05027-00 Circlip |
93430-05027-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.81 |
||
|
32
|
32
6H4-43674-00-00 Washer |
6H4-43674-00-00 |
from US $4.11 |
||
|
33
|
33
90109-08M24-00
Bolt
|
90109-08M24-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
35
|
35
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
36
|
36
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
