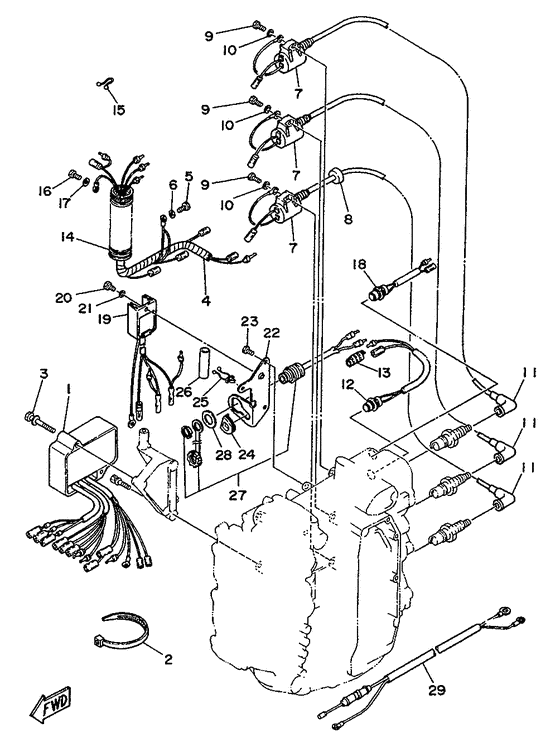

Electrical 1 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1994
- Model
- 40H
- Model code
- 6H4
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H5-85540-02-00
C.d.i. Unit Assembly
|
6H5-85540-02-00 |
— | ||
|
02
|
02
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
02
|
02
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
03
|
03
90119-06M51-00 Bolt, With Washer |
90119-06M51-00 |
from US $7.08 |
||
|
04
|
04
6H4-82531-02-00
Wire, Lead
|
6H4-82531-02-00 |
— | ||
|
05
|
05
97395-06014-00 Bolt(6M7) |
97395-06014-00 |
US $2.41 |
||
| replacements | |||||
|
05
|
05
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
05
|
05
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
05
|
05
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
07
|
07
6H5-85570-00-00 Ignition Coil Assy |
6H5-85570-00-00 |
from US $103.90 |
||
|
08
|
08
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
09
|
09
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
09
|
09
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
11
|
11
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
11
|
11
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
12
|
12
689-82560-00-00 Thermo Switch Assy |
689-82560-00-00 |
from US $68.25 |
||
|
13
|
13
90446-10M02-00 Hose |
90446-10M02-00 |
US $4.68 |
||
| replacement | |||||
|
13
|
13
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
14
|
14
6G1-83557-00-00 Tube |
6G1-83557-00-00 |
from US $4.11 |
||
|
15
|
15
90464-05M16-00 Clamp |
90464-05M16-00 |
from US $1.84 |
||
|
16
|
16
97395-06014-00 Bolt(6M7) |
97395-06014-00 |
US $2.41 |
||
| replacements | |||||
|
16
|
16
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
16
|
16
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
16
|
16
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
18
|
18
6H4-82560-00-00 Thermo Switch Assy |
6H4-82560-00-00 |
from US $73.64 |
||
|
19
|
19
6J8-81960-00-00 Rectifier & Regulator Assy40hm0/40hro |
6J8-81960-00-00 |
from US $120.97 |
||
|
20
|
20
97095-06012-00 Bolt40hm0/40hro |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
20
|
20
970-80060-12-00 Bolt40hm0/40hro |
970-80060-12-00 |
from US $2.22 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646)40hm0/40hro |
929-90066-00-00 |
from US $1.39 |
||
|
22
|
22
6H4-81975-02-00 Plate, Rectifier Fitting40hm0/40hro |
6H4-81975-02-00 |
US $13.74 |
||
|
23
|
23
970-13060-12-00
Bolt
40hm0/40hro |
970-13060-12-00 |
— | ||
| replacement | |||||
|
23
|
23
970-80060-12-00 Bolt40hm0/40hro |
970-80060-12-00 |
from US $2.22 |
||
|
24
|
24
6F5-81922-00-00 Grommet40hm0/40hro |
6F5-81922-00-00 |
from US $9.07 |
||
|
25
|
25
90464-12M35-00 Clamp40hm0/40hro |
90464-12M35-00 |
from US $1.98 |
||
|
26
|
26
90440-14M00-00 Pipe40hm0/40hro |
90440-14M00-00 |
from US $2.55 |
||
|
27
|
27
682-84381-00-00 2P Concent40hm0/40hro |
682-84381-00-00 |
from US $45.77 |
||
|
28
|
28
90202-26M45-00 Washer, Plate40hm0/40hro |
90202-26M45-00 |
US $2.13 |
||
|
29
|
29
6J8-82105-10-00 Battery Cable40hm0/40hro |
6J8-82105-10-00 |
from US $101.96 |
||
