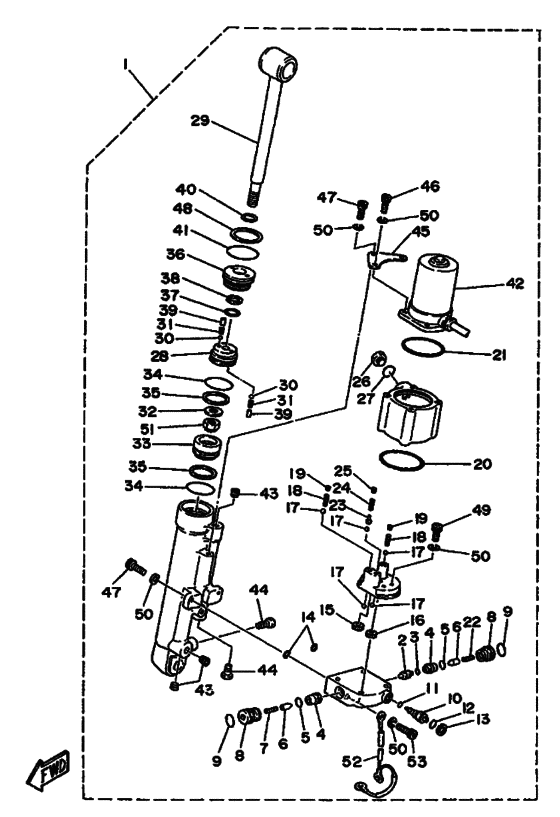

Alternate 7 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1991
- Model
- 40H
- Model code
- 6H4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-43840-02-EJ
Power Tilt Assy
(40HEP0) |
6H5-43840-02-EJ |
— | ||
| replacement | |||||
|
1
|
1
6H5-43840-05-EJ
Power Tilt Assy
(40HEP0) |
6H5-43840-05-EJ |
— | ||
|
2
|
2
6H5-43841-00-00
Piston, Shuttle
(40HEP0) |
6H5-43841-00-00 |
— | ||
|
3
|
3
6H5-43861-00-00
O-Ring
(40HEP0) |
6H5-43861-00-00 |
— | ||
|
4
|
4
6H5-43891-00-00
Bushing 1
(40HEP0) |
6H5-43891-00-00 |
— | ||
|
5
|
5
6H5-43862-00-00
O-Ring
(40HEP0) |
6H5-43862-00-00 |
— | ||
|
6
|
6
6H5-43849-00-00
Pin, Valve Support
(40HEP0) |
6H5-43849-00-00 |
— | ||
|
7
|
7
6H5-43853-00-00
Spring, Main Valve
(40HEP0) |
6H5-43853-00-00 |
— | ||
|
8
|
8
6H5-4382E-00-00
Adaptor 2
(40HEP0) |
6H5-4382E-00-00 |
— | ||
|
9
|
9
6H5-43863-00-00
O-Ring
(40HEP0) |
6H5-43863-00-00 |
— | ||
|
10
|
10
6H5-43846-02-00
Screw, Manual Valve Seat
(40HEP0) |
6H5-43846-02-00 |
— | ||
|
11
|
11
6H5-43864-00-00 O-Ring(40HEP0) |
6H5-43864-00-00 |
US $3.24 |
||
|
16
|
16
6H5-43836-00-00
Gear, Drive
(40HEP0) |
6H5-43836-00-00 |
— | ||
|
17
|
17
6H5-43858-10-00
Ball
(40HEP0) |
6H5-43858-10-00 |
— | ||
|
18
|
18
6H5-43856-00-00 Spring, Down Relief(40HEP0) |
6H5-43856-00-00 |
from US $3.37 |
||
|
19
|
19
6H5-43844-00-00 Pin, Valve Support(40HEP0) |
6H5-43844-00-00 |
from US $13.46 |
||
|
20
|
20
6H5-43867-00-00 O-Ring(40HEP0) |
6H5-43867-00-00 |
US $6.46 |
||
|
21
|
21
6H5-43868-00-00 O-Ring(40HEP0) |
6H5-43868-00-00 |
from US $17.14 |
||
|
22
|
22
6H5-43853-10-00
Spring, Main Valve
(40HEP0) |
6H5-43853-10-00 |
— | ||
|
23
|
23
6H5-43859-00-00
Pin, Valve Support
(40HEP0) |
6H5-43859-00-00 |
— | ||
|
24
|
24
6H5-43855-01-00
Spring, Up Relief
UP RELIEF; (40HEP0) |
6H5-43855-01-00 |
— | ||
|
25
|
25
6H5-4386F-00-00 Pin, Straight(40HEP0) |
6H5-4386F-00-00 |
from US $6.46 |
||
|
26
|
26
6H5-43829-00-00
Plug, Reservoir
(40HEP0) |
6H5-43829-00-00 |
— | ||
|
27
|
27
6H5-43865-00-00
O-Ring
(40HEP0) |
6H5-43865-00-00 |
— | ||
|
28
|
28
6H5-4385A-00-00
Piston, Tilt
(40HEP0) |
6H5-4385A-00-00 |
— | ||
|
29
|
29
6H5-43801-00-00
Rod
(40HEP0) |
6H5-43801-00-00 |
— | ||
|
30
|
30
6H5-43858-00-00
Ball
(40HEP0) |
6H5-43858-00-00 |
— | ||
|
31
|
31
6H5-43857-00-00
Spring, Absorber Valve
(40HEP0) |
6H5-43857-00-00 |
— | ||
|
32
|
32
6H5-43893-00-00
Washer
(40HEP0) |
6H5-43893-00-00 |
— | ||
|
33
|
33
6H5-43814-00-00
Piston, Free
(40HEP0) |
6H5-43814-00-00 |
— | ||
|
34
|
34
6H5-43883-00-00 O-Ring(40HEP0) |
6H5-43883-00-00 |
US $5.58 |
||
|
35
|
35
6H5-43871-00-00
Ring, Back Up
UP; (40HEP0) |
6H5-43871-00-00 |
— | ||
|
36
|
36
6H5-4381E-00-00
Bracket
(40HEP0) |
6H5-4381E-00-00 |
— | ||
|
37
|
37
6H5-43896-00-00
O-Ring
(40HEP0) |
6H5-43896-00-00 |
— | ||
|
43
|
43
6H5-43826-00-00
Plug, Taper Screw
(40HEP0) |
6H5-43826-00-00 |
— | ||
|
44
|
44
6H5-43811-00-00
Screw, Cylinder End
(40HEP0) |
6H5-43811-00-00 |
— | ||
|
45
|
45
6H5-4381F-00-00
Bracket
(40HEP0) |
6H5-4381F-00-00 |
— | ||
|
46
|
46
6H5-43887-00-00 Bolt(40HEP0) |
6H5-43887-00-00 |
from US $19.41 |
||
|
47
|
47
6H5-43886-00-00 Bolt(40HEP0) |
6H5-43886-00-00 |
US $8.83 |
||
|
48
|
48
6H5-43872-00-00
Ring, Back Up
UP; (40HEP0) |
6H5-43872-00-00 |
— | ||
|
49
|
49
913-16060-20-00
Bolt
(40HEP0) |
913-16060-20-00 |
— | ||
| replacement | |||||
|
49
|
49
91317-06020-00 Bolt(40HEP0) |
91317-06020-00 |
from US $1.07 |
||
|
50
|
50
929-90061-00-00
Washer, Spring
(40HEP0) |
929-90061-00-00 |
— | ||
| replacement | |||||
|
50
|
50
929-95061-00-00 Washer, Spring(40HEP0) |
929-95061-00-00 |
from US $0.99 |
||
|
51
|
51
95600-12100-00 Nut, U(40HEP0) |
95600-12100-00 |
from US $3.12 |
||
| replacement | |||||
|
51
|
51
95617-12100-00 Nut, U(40HEP0) |
95617-12100-00 |
from US $3.12 |
||
|
52
|
52
6G1-82127-00-00
Wire, Lead 2
(40HEP0) |
6G1-82127-00-00 |
— | ||
|
53
|
53
6H5-4388A-00-00
Bolt
(40HEP0) |
6H5-4388A-00-00 |
— | ||
