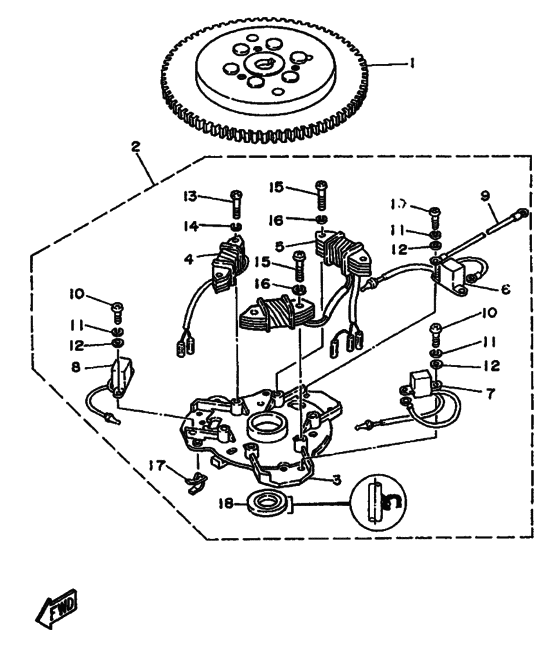

Alternate 8 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1991
- Model
- 40H
- Model code
- 6H4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-85550-00-00 Rotor Assembly(40HE0/40HEP0/40HET0) |
6H5-85550-00-00 |
US $879.12 |
||
| replacement | |||||
|
1
|
1
63D-85550-00-00 Rotor Assy(40HE0/40HEP0/40HET0) |
63D-85550-00-00 |
from US $879.12 |
||
|
2
|
2
6H5-85560-01-00
Base Assembly
(40HE0/40HEP0/40HET0) |
6H5-85560-01-00 |
— | ||
| replacement | |||||
|
2
|
2
6H5-85560-02-00
Base Assembly
(40HE0/40HEP0/40HET0) |
6H5-85560-02-00 |
— | ||
|
3
|
3
6H4-15359-03-94 Housing, Oil Seal(40HE0/40HEP0/40HET0) |
6H4-15359-03-94 |
US $56.65 |
||
| replacement | |||||
|
3
|
3
6H4-15359-04-94 Housing, Oil Seal(40HE0/40HEP0/40HET0) |
6H4-15359-04-94 |
from US $56.65 |
||
|
4
|
4
6H5-85520-00-00 Coil, Charge(40HE0/40HEP0/40HET0) |
6H5-85520-00-00 |
US $187.90 |
||
| replacement | |||||
|
4
|
4
63D-85520-01-00 Coil, Charge(40HE0/40HEP0/40HET0) |
63D-85520-01-00 |
from US $162.20 |
||
|
5
|
5
6H5-85533-01-00
Coil, Lighting
(40HE0/40HEP0/40HET0) |
6H5-85533-01-00 |
— | ||
|
6
|
6
6H5-85580-00-00 Coil, Pulser(40HE0/40HEP0/40HET0) |
6H5-85580-00-00 |
US $147.73 |
||
|
7
|
7
6H5-85580-10-00
Coil, Pulser
(40HE0/40HEP0/40HET0) |
6H5-85580-10-00 |
— | ||
|
8
|
8
6H5-85580-20-00
Coil, Pulser
(40HE0/40HEP0/40HET0) |
6H5-85580-20-00 |
— | ||
|
9
|
9
6H5-83354-00-00
Wire, Lead
(40HE0/40HEP0/40HET0) |
6H5-83354-00-00 |
— | ||
|
10
|
10
98501-05012-00 Screw, Pan Head(40HE0/40HEP0/40HET0) |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
10
|
10
98517-05012-00 Screw, Pan Head(40HE0/40HEP0/40HET0) |
98517-05012-00 |
from US $1.21 |
||
|
10
|
10
98580-05012-00 Screw, Pan Head(40HE0/40HEP0/40HET0) |
98580-05012-00 |
from US $1.34 |
||
|
11
|
11
929-01051-00-00
Washer, Spring
(40HE0/40HEP0/40HET0) |
929-01051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-05100-00 Washer, Spring(40HE0/40HEP0/40HET0) |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
929-01056-00-00
Washer
(40HE0/40HEP0/40HET0) |
929-01056-00-00 |
— | ||
| replacements | |||||
|
12
|
12
92990-05600-00 Washer, Plate(40HE0/40HEP0/40HET0) |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
92907-05600-00 Washer, Plate(40HE0/40HEP0/40HET0) |
92907-05600-00 |
from US $1.07 |
||
|
13
|
13
98501-06025-00 Screw Pan Head(40HE0/40HEP0/40HET0) |
98501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head(40HE0/40HEP0/40HET0) |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
929-90061-00-00
Washer, Spring
(40HE0/40HEP0/40HET0) |
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring(40HE0/40HEP0/40HET0) |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
98501-06030-00 Screw Pan Head(40HE0/40HEP0/40HET0) |
98501-06030-00 |
US $1.35 |
||
| replacement | |||||
|
15
|
15
97885-06030-00 Screw, Pan Head(40HE0/40HEP0/40HET0) |
97885-06030-00 |
from US $1.35 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
(40HE0/40HEP0/40HET0) |
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring(40HE0/40HEP0/40HET0) |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
90464-03M15-00 Clamp(40HE0/40HEP0/40HET0) |
90464-03M15-00 |
from US $2.69 |
||
|
18
|
18
931-02230-96-00 Oil Seal(40HE0/40HEP0/40HET0) |
931-02230-96-00 |
from US $10.92 |
||
