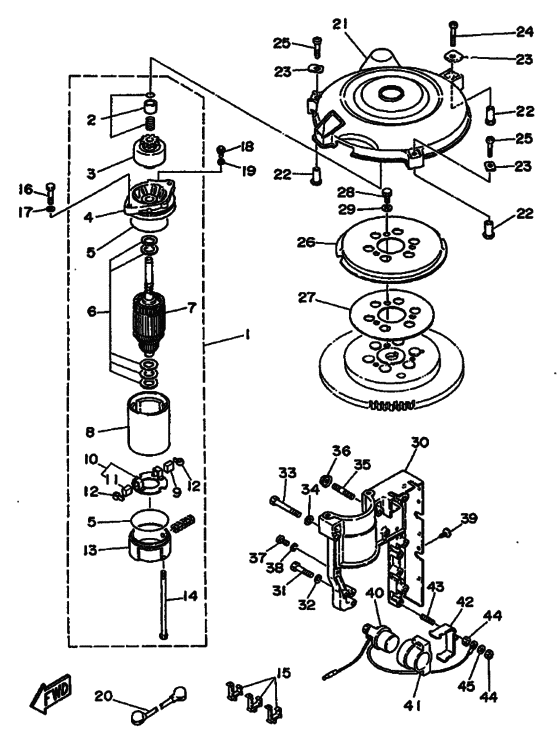

Alternate 9 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1991
- Model
- 40H
- Model code
- 6H4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6F5-81800-10-00 Starting Motor Assy(40HE0/40HEP0/40HET0) |
6F5-81800-10-00 |
US $1,005.84 |
||
| replacement | |||||
|
1
|
1
6J4-81800-01-00 Starting Motor Assembly(40HE0/40HEP0/40HET0) |
6J4-81800-01-00 |
from US $630.68 |
||
|
2
|
2
689-81857-11-00 Retainer(40HE0/40HEP0/40HET0) |
689-81857-11-00 |
from US $13.24 |
||
|
3
|
3
689-81807-12-00 Gear Assy, Starting Motor(40HE0/40HEP0/40HET0) |
689-81807-12-00 |
from US $139.25 |
||
|
4
|
4
6F5-81830-11-00 Front Bracket Assy(40HE0/40HEP0/40HET0) |
6F5-81830-11-00 |
from US $234.87 |
||
|
5
|
5
689-81847-11-00 O-Ring(40HE0/40HEP0/40HET0) |
689-81847-11-00 |
from US $9.21 |
||
|
6
|
6
689-81809-11-00 Washer Kit(40HE0/40HEP0/40HET0) |
689-81809-11-00 |
from US $12.89 |
||
|
7
|
7
689-81850-11-00 Armature Assy(40HE0/40HEP0/40HET0) |
689-81850-11-00 |
US $467.85 |
||
| replacement | |||||
|
7
|
7
689-81850-12-00 Armature Assy(40HE0/40HEP0/40HET0) |
689-81850-12-00 |
from US $362.77 |
||
|
8
|
8
689-81810-11-00 Stator Assy(40HE0/40HEP0/40HET0) |
689-81810-11-00 |
from US $187.90 |
||
|
9
|
9
689-81811-11-00 Brush 1(40HE0/40HEP0/40HET0) |
689-81811-11-00 |
from US $14.56 |
||
|
10
|
10
689-81840-11-00 Brush Holder Assy(40HE0/40HEP0/40HET0) |
689-81840-11-00 |
from US $63.79 |
||
|
11
|
11
689-81812-11-00 Brush 2(40HE0/40HEP0/40HET0) |
689-81812-11-00 |
from US $19.55 |
||
|
12
|
12
689-81813-10-00 Spring, Brush(40HE0/40HEP0/40HET0) |
689-81813-10-00 |
from US $7.23 |
||
|
13
|
13
689-81820-11-00 Rear Bracket Assembly(40HE0/40HEP0/40HET0) |
689-81820-11-00 |
from US $88.01 |
||
|
14
|
14
689-81826-10-00 Bolt(40HE0/40HEP0/40HET0) |
689-81826-10-00 |
from US $9.35 |
||
|
15
|
15
904-6409M-13-00
Clamp
(40HE0/40HEP0/40HET0) |
904-6409M-13-00 |
— | ||
| replacement | |||||
|
15
|
15
90464-15M08-00 Clamp(40HE0/40HEP0/40HET0) |
90464-15M08-00 |
from US $1.84 |
||
|
16
|
16
973-13080-30-00
Bolt
(40HE0/40HEP0/40HET0) |
973-13080-30-00 |
— | ||
| replacements | |||||
|
16
|
16
970-24080-30-00 Bolt(40HE0/40HEP0/40HET0) |
970-24080-30-00 |
from US $1.55 |
||
|
16
|
16
970-17080-30-00 Bolt(40HE0/40HEP0/40HET0) |
970-17080-30-00 |
from US $1.70 |
||
|
16
|
16
970-13080-30-00 Bolt(40HE0/40HEP0/40HET0) |
970-13080-30-00 |
from US $3.47 |
||
|
17
|
17
92990-08600-00 Washer, Plate(40HE0/40HEP0/40HET0) |
92990-08600-00 |
from US $1.34 |
||
|
18
|
18
97313-08016-00 Bolt, Hexagon(40HE0/40HEP0/40HET0) |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
18
|
18
97013-08016-00 Bolt(40HE0/40HEP0/40HET0) |
97013-08016-00 |
from US $1.42 |
||
|
19
|
19
92990-08600-00 Washer, Plate(40HE0/40HEP0/40HET0) |
92990-08600-00 |
from US $1.34 |
||
|
20
|
20
6H4-82117-00-00 Wire, Lead(40HE0/40HEP0/40HET0) |
6H4-82117-00-00 |
US $20.40 |
||
|
21
|
21
6H4-81337-01-00 Cover, Flywheel(40HE0/40HEP0/40HET0) |
6H4-81337-01-00 |
from US $27.49 |
||
|
22
|
22
90387-06M65-00 Collar(40HE0/40HEP0/40HET0) |
90387-06M65-00 |
from US $5.81 |
||
|
23
|
23
90209-06M04-00
Washer
(40HE0/40HEP0/40HET0) |
90209-06M04-00 |
— | ||
|
24
|
24
97895-06040-00 Screw, Pan Head(40HE0/40HEP0/40HET0) |
97895-06040-00 |
US $2.27 |
||
| replacements | |||||
|
24
|
24
98580-06040-00 Screw, Pan Head (90501-06040-00(40HE0/40HEP0/40HET0) |
98580-06040-00 |
from US $1.21 |
||
|
24
|
24
97885-06040-00 Screw, Pan Head(6H4)(40HE0/40HEP0/40HET0) |
97885-06040-00 |
from US $2.27 |
||
|
25
|
25
97895-06035-00 Screw, Pan Head(40HE0/40HEP0/40HET0) |
97895-06035-00 |
US $2.13 |
||
| replacement | |||||
|
25
|
25
97885-06035-00 Screw, Pan Head(40HE0/40HEP0/40HET0) |
97885-06035-00 |
from US $2.13 |
||
|
26
|
26
6J8-15723-E1-00 Pulley, Starter(40HE0/40HEP0/40HET0) |
6J8-15723-E1-00 |
from US $35.70 |
||
|
27
|
27
6J8-81365-00-00 Gasket, Hole Cover(40HE0/40HEP0/40HET0) |
6J8-81365-00-00 |
US $4.11 |
||
| replacement | |||||
|
27
|
27
6J8-81365-A0-00 Gasket, Hole Cover(40HE0/40HEP0/40HET0) |
6J8-81365-A0-00 |
from US $4.11 |
||
|
28
|
28
97021-08014-00 Bolt(40HE0/40HEP0/40HET0) |
97021-08014-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
97017-08016-00 Bolt(40HE0/40HEP0/40HET0) |
97017-08016-00 |
from US $1.42 |
||
|
29
|
29
92990-08600-00 Washer, Plate(40HE0/40HEP0/40HET0) |
92990-08600-00 |
from US $1.34 |
||
|
30
|
30
6H4-81822-00-98 Bracket, Strtg Mtr (6H4-81822-00-94)(40HE0/40HEP0/40HET0) |
6H4-81822-00-98 |
US $59.69 |
||
| replacement | |||||
|
30
|
30
6H4-81822-02-98 Bracket, Starting Motor(40HE0/40HEP0/40HET0) |
6H4-81822-02-98 |
from US $59.69 |
||
|
31
|
31
97313-06030-00 Bolt(40HE0/40HEP0/40HET0) |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
31
|
31
97080-06030-00 Bolt(40HE0/40HEP0/40HET0) |
97080-06030-00 |
from US $2.83 |
||
|
32
|
32
929-90066-00-00 Washer, Plain (646)(40HE0/40HEP0/40HET0) |
929-90066-00-00 |
from US $1.07 |
||
|
33
|
33
97313-08050-00 Bolt,hex(40HE0/40HEP0/40HET0) |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
33
|
33
97013-08050-00 Bolt, Hexagon(40HE0/40HEP0/40HET0) |
97013-08050-00 |
from US $4.24 |
||
|
34
|
34
92990-08600-00 Washer, Plate(40HE0/40HEP0/40HET0) |
92990-08600-00 |
from US $1.34 |
||
|
35
|
35
95670-06640-00 Bolt, Stud(40HE0/40HEP0/40HET0) |
95670-06640-00 |
from US $4.49 |
||
|
36
|
36
90179-06M12-00 Nut(40HE0/40HEP0/40HET0) |
90179-06M12-00 |
US $2.69 |
||
| replacement | |||||
|
36
|
36
90179-06M24-00 Nut(40HE0/40HEP0/40HET0) |
90179-06M24-00 |
from US $2.69 |
||
|
37
|
37
97313-06014-00 Bolt, Hexagon(40HE0/40HEP0/40HET0) |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
37
|
37
97080-06014-00 Bolt(40HE0/40HEP0/40HET0) |
97080-06014-00 |
from US $7.08 |
||
|
37
|
37
97095-06014-00 Bolt(40HE0/40HEP0/40HET0) |
97095-06014-00 |
US $1.56 |
||
|
37
|
37
97D95-06014-00 Bolt, Hexagon Deep R(40HE0/40HEP0/40HET0) |
97D95-06014-00 |
from US $1.07 |
||
|
37
|
37
97D95-06014-00 Bolt, Hexagon Deep R(40HE0/40HEP0/40HET0) |
97D95-06014-00 |
from US $1.07 |
||
|
37
|
37
97D95-06014-00 Bolt, Hexagon Deep R(40HE0/40HEP0/40HET0) |
97D95-06014-00 |
from US $1.07 |
||
|
38
|
38
929-90066-00-00 Washer, Plain (646)(40HE0/40HEP0/40HET0) |
929-90066-00-00 |
from US $1.07 |
||
|
39
|
39
90338-05M11-00 Plug(40HE0/40HEP0/40HET0) |
90338-05M11-00 |
US $1.84 |
||
| replacement | |||||
|
39
|
39
90338-05M12-00 Plug(40HE0/40HEP0/40HET0) |
90338-05M12-00 |
from US $1.84 |
||
|
40
|
40
6G1-81941-10-00 Starter Relay Assy(40HE0/40HEP0/40HET0) |
6G1-81941-10-00 |
from US $54.56 |
||
|
41
|
41
6H4-81952-00-00 Holder, Relay(40HE0/40HEP0/40HET0) |
6H4-81952-00-00 |
US $9.35 |
||
|
42
|
42
6H4-81945-00-00 Plate, Switch Fitting(40HE0/40HEP0/40HET0) |
6H4-81945-00-00 |
from US $11.48 |
||
|
43
|
43
90116-06M22-00 Bolt, Stud(40HE0/40HEP0/40HET0) |
90116-06M22-00 |
from US $4.39 |
||
|
44
|
44
95380-06600-00 Nut, Hexagon(40HE0/40HEP0/40HET0) |
95380-06600-00 |
from US $1.07 |
||
|
45
|
45
929-90066-00-00 Washer, Plain (646)(40HE0/40HEP0/40HET0) |
929-90066-00-00 |
from US $1.07 |
||
