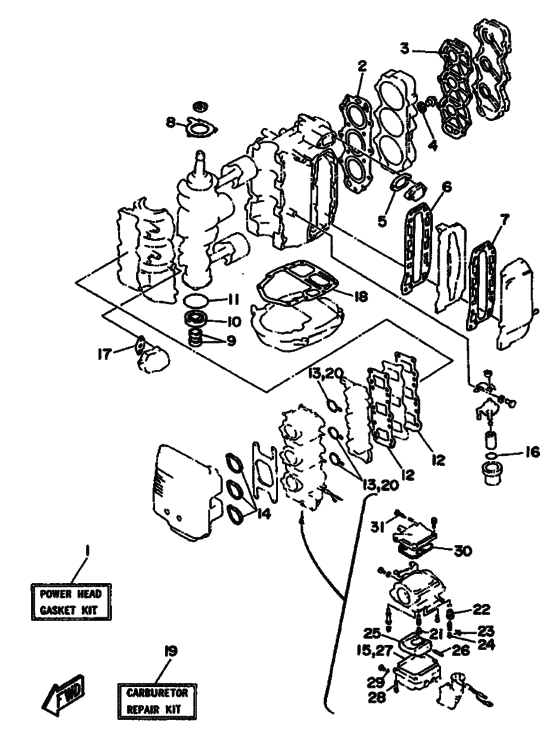

Repair kit 1 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1991
- Model
- 40H
- Model code
- 6H4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-W0001-02-00 Pwr Head Gaskit Kit |
6H4-W0001-02-00 |
US $267.48 |
||
| replacements | |||||
|
1
|
1
6H4-W0001-A2-00 Gasket Kit, Power Unit |
6H4-W0001-A2-00 |
from US $267.48 |
||
|
1
|
1
6H4-W0001-03-00
Power Head Gasket Kit
|
6H4-W0001-03-00 |
— | ||
|
2
|
2
6H4-11181-00-00 Gasket, Cylinder Head 1 |
6H4-11181-00-00 |
US $83.17 |
||
| replacement | |||||
|
2
|
2
6H4-11181-A2-00 Gasket, Cylinder Head 1 |
6H4-11181-A2-00 |
from US $48.28 |
||
|
3
|
3
6H4-11193-00-00 Gasket, Head Cover 1 |
6H4-11193-00-00 |
US $21.96 |
||
| replacement | |||||
|
3
|
3
6H4-11193-A1-00 Gasket, Head Cover 1 |
6H4-11193-A1-00 |
from US $12.90 |
||
|
4
|
4
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
5
|
5
6H4-12414-00-00 Gasket, Cover |
6H4-12414-00-00 |
US $3.97 |
||
| replacement | |||||
|
5
|
5
61A-12414-A0-00 Gasket, Cover |
61A-12414-A0-00 |
from US $3.97 |
||
|
6
|
6
6H4-41112-00-00 Gasket, Exhaust Inner Cover |
6H4-41112-00-00 |
US $11.19 |
||
| replacement | |||||
|
6
|
6
6H4-41112-A0-00 Gasket, Exhaust Inner Cover |
6H4-41112-A0-00 |
from US $11.19 |
||
|
7
|
7
6H4-41114-00-00 Gasket, Exhaust Outer Cover |
6H4-41114-00-00 |
US $13.88 |
||
| replacement | |||||
|
7
|
7
6H4-41114-A0-00 Gasket, Exhaust Cover |
6H4-41114-A0-00 |
from US $10.30 |
||
|
8
|
8
6H4-15369-01-00 Gasket, Oil Seal Housing |
6H4-15369-01-00 |
US $6.09 |
||
| replacement | |||||
|
8
|
8
6H4-15369-A1-00 Gasket, Oil Seal Housing |
6H4-15369-A1-00 |
from US $6.09 |
||
|
9
|
9
93104-16M04-00 Oil Seal (6J8) |
93104-16M04-00 |
from US $4.30 |
||
| replacement | |||||
|
9
|
9
931-0116M-36-00 Oil Seal |
931-0116M-36-00 |
from US $4.64 |
||
|
10
|
10
93102-25M09-00
Oil Seal
|
93102-25M09-00 |
— | ||
|
11
|
11
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $2.66 |
||
|
12
|
12
6H4-13621-01-00 Gasket, Valve Seat |
6H4-13621-01-00 |
US $12.33 |
||
| replacement | |||||
|
12
|
12
6H4-13621-A1-00 Gasket, Valve Seat |
6H4-13621-A1-00 |
from US $9.95 |
||
|
13
|
13
6H4-14198-01-00 Gasket |
6H4-14198-01-00 |
from US $2.66 |
||
|
14
|
14
6H3-14457-01-00 Seal |
6H3-14457-01-00 |
US $3.54 |
||
| replacement | |||||
|
14
|
14
6H3-14457-02-00 Seal |
6H3-14457-02-00 |
from US $3.54 |
||
|
15
|
15
6H4-14984-00-00 Gasket, Float Chamber |
6H4-14984-00-00 |
from US $8.36 |
||
|
16
|
16
93210-37M25-00 O-Ring |
93210-37M25-00 |
from US $4.68 |
||
|
17
|
17
650-24431-00-00 Gasket, Fuel Pump 1 |
650-24431-00-00 |
US $2.98 |
||
| replacement | |||||
|
17
|
17
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.34 |
||
|
18
|
18
6H4-45113-00-00 Gasket, Upper Casing |
6H4-45113-00-00 |
US $22.53 |
||
| replacement | |||||
|
18
|
18
6H4-45113-A0-00 Gasket, Upper Casing |
6H4-45113-A0-00 |
from US $8.28 |
||
|
19
|
19
6H4-W0093-02-00 Carburetor Repair Kit |
6H4-W0093-02-00 |
US $239.02 |
||
| replacements | |||||
|
19
|
19
6H4-W0093-03-00 Carburetor Repair Kit |
6H4-W0093-03-00 |
from US $239.02 |
||
|
19
|
19
6H4-W0093-04-00 Carburetor Repair Kit |
6H4-W0093-04-00 |
from US $239.02 |
||
|
20
|
20
6H4-14198-01-00 Gasket |
6H4-14198-01-00 |
from US $2.66 |
||
|
21
|
21
676-14966-00-00
Cap
|
676-14966-00-00 |
— | ||
| replacement | |||||
|
21
|
21
679-14966-00-00 Rubber Cap |
679-14966-00-00 |
from US $2.66 |
||
|
22
|
22
6H3-14590-00-00 Needle Valve Assembly |
6H3-14590-00-00 |
US $40.20 |
||
| replacements | |||||
|
22
|
22
6H3-14590-01-00 Needle Valve Assy |
6H3-14590-01-00 |
from US $27.78 |
||
|
22
|
22
6H3-14590-02-00 NEEDLE VALVE ASSY |
6H3-14590-02-00 |
from US $35.84 |
||
|
23
|
23
663-14159-00-00
Clip
|
663-14159-00-00 |
— | ||
| replacement | |||||
|
23
|
23
633-14159-00-00 Clip |
633-14159-00-00 |
from US $3.32 |
||
|
24
|
24
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $1.66 |
||
|
25
|
25
6H4-14985-00-00 Float |
6H4-14985-00-00 |
US $25.36 |
||
| replacement | |||||
|
25
|
25
6H4-14985-01-00 Float |
6H4-14985-01-00 |
from US $25.36 |
||
|
26
|
26
6H4-14548-00-00 Pin, Float Arm |
6H4-14548-00-00 |
from US $3.97 |
||
|
27
|
27
6H4-14984-00-00 Gasket, Float Chamber |
6H4-14984-00-00 |
from US $8.36 |
||
|
28
|
28
979-80041-14-00
Screw, With Washer
|
979-80041-14-00 |
— | ||
| replacement | |||||
|
28
|
28
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
29
|
29
93210-04230-00 O-Ring |
93210-04230-00 |
from US $1.66 |
||
|
30
|
30
6H4-14147-00-00 O-Ring |
6H4-14147-00-00 |
from US $6.94 |
||
|
31
|
31
692-14923-00-00 Screw, Pilot |
692-14923-00-00 |
from US $10.20 |
||
