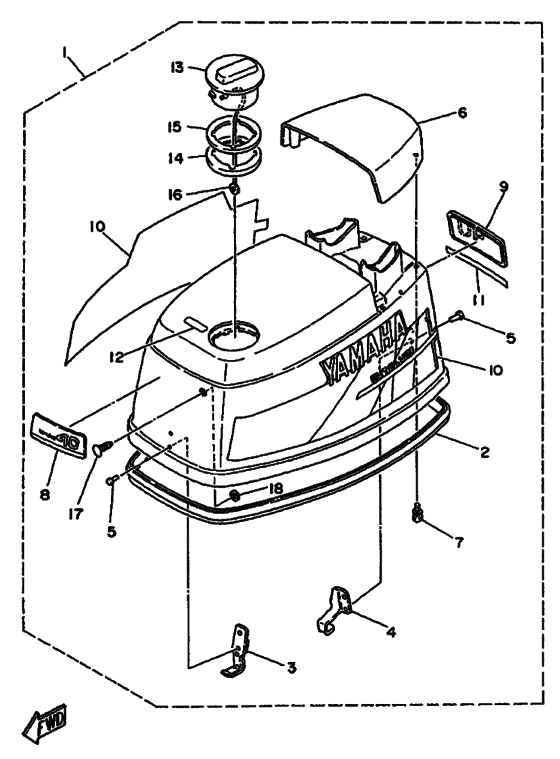

Top cowling Diagram Yamaha 40 M(E/O)S/L
- Year
- 1994
- Model
- 40H
- Model code
- 6H4
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-42610-A4-4D
Top Cowling Assy
|
6H4-42610-A4-4D |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6H4-42615-00-00 Seal |
6H4-42615-00-00 |
from US $54.30 |
||
|
3
|
3
6H4-42651-00-00 Hook |
6H4-42651-00-00 |
from US $13.03 |
||
|
4
|
4
6H4-42652-00-00 Hook |
6H4-42652-00-00 |
from US $13.03 |
||
|
5
|
5
90266-04M01-00 Rivet |
90266-04M01-00 |
from US $2.83 |
||
|
6
|
6
6H4-42613-10-4D Molding, Air Duct |
6H4-42613-10-4D |
US $114.40 |
||
| replacement | |||||
|
6
|
6
6H4-42613-11-8D MOLDING, AIR DUCT |
6H4-42613-11-8D |
from US $114.40 |
||
|
7
|
7
90119-06M99-00 Bolt, With Washer |
90119-06M99-00 |
from US $3.12 |
||
| replacement | |||||
|
7
|
7
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
8
|
8
6H4-42686-11-00
Emblem, Front
|
6H4-42686-11-00 |
— | ||
|
9
|
9
6H4-42687-10-00 Emblem, Rear |
6H4-42687-10-00 |
US $47.90 |
||
|
10
|
10
6H4-W0070-A2-00
Graphic Set
|
6H4-W0070-A2-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
6H4-4267A-60-00
Graphic, Rear 2
|
6H4-4267A-60-00 |
— | ||
|
12
|
12
6H4-13436-00-00
Mark
|
6H4-13436-00-00 |
— | ||
|
13
|
13
6H1-2177H-02-00 Disk Cap 2 (6H1-2177H-01-00) |
6H1-2177H-02-00 |
from US $85.11 |
||
|
14
|
14
6H3-21732-00-00 Seal 1 |
6H3-21732-00-00 |
from US $12.47 |
||
|
15
|
15
6H3-21735-00-00 Seal 2 |
6H3-21735-00-00 |
US $12.47 |
||
|
16
|
16
6H1-42694-00-00 Band |
6H1-42694-00-00 |
from US $18.42 |
||
|
17
|
17
90338-08M12-00
Plug
|
90338-08M12-00 |
— | ||
|
18
|
18
90183-05M06-00 Nut, Spring |
90183-05M06-00 |
from US $1.98 |
||
