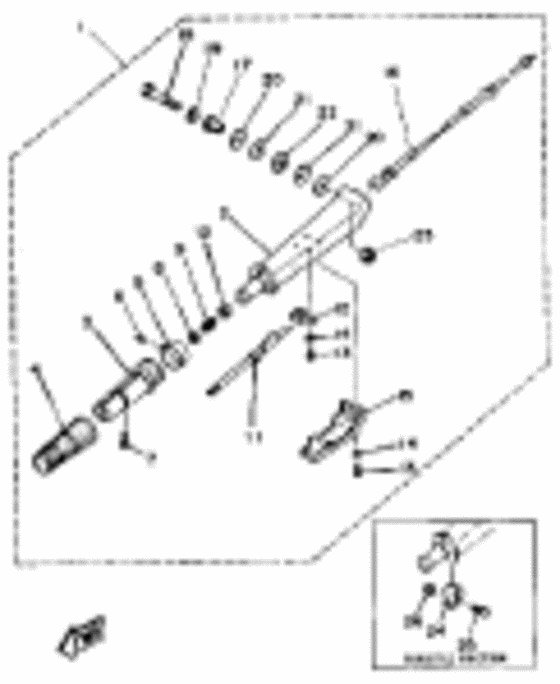

Manual steering Diagram Yamaha 40 S/L/UL
- Year
- 1986
- Model
- 40
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-W0084-43-EK
Steering Hndle.assembly
|
6H4-W0084-43-EK |
— | ||
|
2
|
2
6H4-42111-01-EK
Handle, Steering
|
6H4-42111-01-EK |
— | ||
|
3
|
3
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $20.18 |
||
|
4
|
4
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
4
|
4
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
5
|
5
6H4-42137-01-00 Indicator, Throttle |
6H4-42137-01-00 |
US $10.48 |
||
| replacement | |||||
|
5
|
5
6L2-42137-00-00 Indicator, Throttle |
6L2-42137-00-00 |
from US $10.48 |
||
|
6
|
6
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
7
|
7
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
7
|
7
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
8
|
8
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
9
|
9
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
10
|
10
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
11
|
11
6H4-42138-01-00 Lever, Throttle |
6H4-42138-01-00 |
from US $24.48 |
||
|
12
|
12
6H4-42159-00-00
Stay
|
6H4-42159-00-00 |
— | ||
|
13
|
13
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
13
|
13
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
6H4-42131-00-00
Cover, Handle Steering
|
6H4-42131-00-00 |
— | ||
|
16
|
16
6H4-26311-03-00 Cable, Throttle 1 |
6H4-26311-03-00 |
from US $110.67 |
||
|
17
|
17
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
18
|
18
90101-12M37-00 Bolt |
90101-12M37-00 |
from US $7.28 |
||
|
19
|
19
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.34 |
||
|
20
|
20
90202-12092-00 Washer, Plate |
90202-12092-00 |
from US $2.55 |
||
|
21
|
21
90201-12537-00 Washer, Plate |
90201-12537-00 |
from US $4.64 |
||
|
22
|
22
90206-12054-00 Washer, Wave |
90206-12054-00 |
from US $3.26 |
||
|
23
|
23
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
24
|
24
656-42126-01-00 Friction, Steering Handle Grip |
656-42126-01-00 |
from US $12.33 |
||
|
25
|
25
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
26
|
26
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
