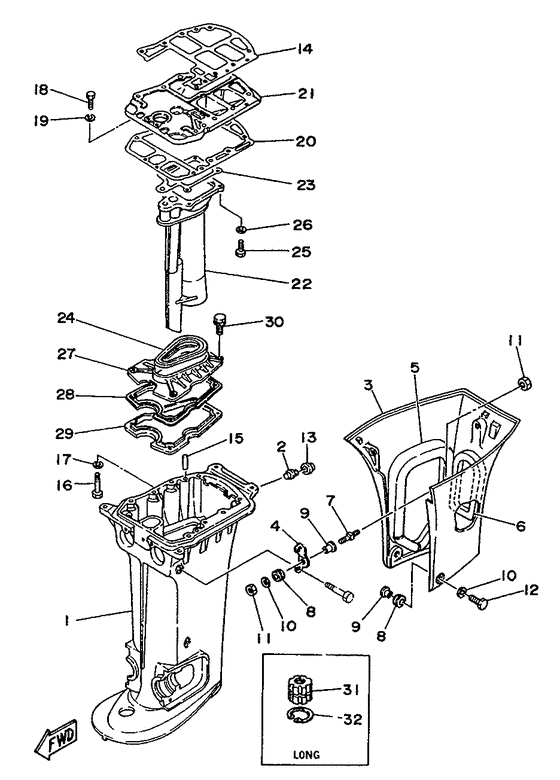

Upper casing Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1993
- Model
- 40Q
- Model code
- 6R6
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6A0-45111-01-1D
Casing, Upper
Ur |
6A0-45111-01-1D |
— | ||
|
01
|
01
6A0-45111-11-1D
Casing, Upper
Ur |
6A0-45111-11-1D |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
02
|
02
6A0-42761-00-00
Stopper
|
6A0-42761-00-00 |
— | ||
|
03
|
03
6A0-42741-00-1D
Apron
|
6A0-42741-00-1D |
— | ||
|
04
|
04
6A0-42744-00-00
Stay
|
6A0-42744-00-00 |
— | ||
|
05
|
05
6A0-42768-00-00 Damper |
6A0-42768-00-00 |
from US $46.15 |
||
|
06
|
06
6A0-42769-00-00
Seal, Rubber
|
6A0-42769-00-00 |
— | ||
|
07
|
07
6A0-42742-00-00
Bolt
|
6A0-42742-00-00 |
— | ||
|
08
|
08
90480-12M11-00 Grommet |
90480-12M11-00 |
from US $3.40 |
||
|
09
|
09
6A0-42758-00-00 Collar |
6A0-42758-00-00 |
US $4.84 |
||
|
10
|
10
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.70 |
||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
12
|
12
97395-06022-00 Boulon |
97395-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.27 |
||
|
13
|
13
676-45113-A0-00 Gasket, Upper Casing |
676-45113-A0-00 |
US $21.54 |
||
| replacements | |||||
|
13
|
13
6F5-45113-A1-00 GASKET, UPPER CASING |
6F5-45113-A1-00 |
from US $21.11 |
||
|
13
|
13
6F5-45113-A2-00 GASKET UPPER CASING |
6F5-45113-A2-00 |
from US $38.38 |
||
|
14
|
14
93606-25M00-00 Pin, Dowel |
93606-25M00-00 |
from US $2.92 |
||
|
16
|
16
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
16
|
16
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.24 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
18
|
18
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
19
|
19
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
20
|
20
676-45114-AO-00
Gasket, Upper Casing
|
676-45114-AO-00 |
— | ||
|
21
|
21
676-41137-03-94 Guide, Exhaust |
676-41137-03-94 |
US $99.83 |
||
| replacement | |||||
|
21
|
21
676-41137-04-5B Guide, Exhaust |
676-41137-04-5B |
US $99.83 |
||
|
22
|
22
6E9-41132-00-5B
Manifold, Exhaust
|
6E9-41132-00-5B |
— | ||
|
23
|
23
676-41133-AO-00
Gasket, Exhaust Manifold 1
|
676-41133-AO-00 |
— | ||
|
24
|
24
676-45127-00-00 Seal |
676-45127-00-00 |
from US $11.80 |
||
|
25
|
25
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
26
|
26
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
27
|
27
676-41116-00-5B
Protector
|
676-41116-00-5B |
— | ||
|
28
|
28
676-45128-00-5B
Seal 2
|
676-45128-00-5B |
— | ||
|
29
|
29
676-45126-00-5B
Plate, Seal Damper
|
676-45126-00-5B |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
90105-06M01-00 Bolt, Flange |
90105-06M01-00 |
from US $3.02 |
||
|
31
|
31
6A0-45318-00-00 Bushing, Drive Shaft |
6A0-45318-00-00 |
from US $35.70 |
||
|
32
|
32
93420-36M01-00 Circlip |
93420-36M01-00 |
from US $5.74 |
||
