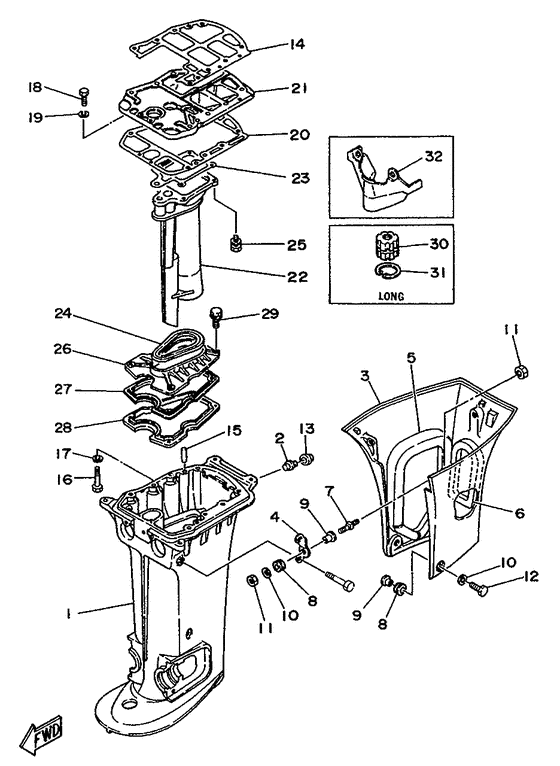

Upper casing Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1995
- Model
- 40Q
- Model code
- 6R6
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6A0-45111-01-40
Casing, Upper
Ur short |
6A0-45111-01-40 |
— | ||
|
01
|
01
6A0-45111-11-4D
Casing, Upper
Ur long |
6A0-45111-11-4D |
— | ||
| replacement | |||||
|
01
|
01
6A0-45111-12-4D Casing, UpperUr long |
6A0-45111-12-4D |
US $426.29 |
||
|
02
|
02
6A0-42761-00-00
Stopper
|
6A0-42761-00-00 |
— | ||
|
03
|
03
6A0-42741-00-40
Apron
|
6A0-42741-00-40 |
— | ||
|
04
|
04
6A0-42744-00-00
Stay
|
6A0-42744-00-00 |
— | ||
|
05
|
05
6A0-42768-00-00 Damper |
6A0-42768-00-00 |
from US $46.15 |
||
|
06
|
06
6A0-42769-00-00
Seal, Rubber
|
6A0-42769-00-00 |
— | ||
|
07
|
07
6A0-42742-00-00
Bolt
|
6A0-42742-00-00 |
— | ||
|
08
|
08
90480-12M11-00 Grommet |
90480-12M11-00 |
from US $3.40 |
||
|
09
|
09
6A0-42758-00-00 Collar |
6A0-42758-00-00 |
US $4.84 |
||
|
10
|
10
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.70 |
||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
12
|
12
97395-06022-00 Boulon |
97395-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.27 |
||
|
13
|
13
663-42662-00-00 Damper |
663-42662-00-00 |
US $8.93 |
||
|
14
|
14
6F5-45113-A0-00 Gasket, Upper Casing |
6F5-45113-A0-00 |
US $21.54 |
||
| replacements | |||||
|
14
|
14
6F5-45113-A1-00 GASKET, UPPER CASING |
6F5-45113-A1-00 |
from US $21.11 |
||
|
14
|
14
6F5-45113-A2-00 GASKET UPPER CASING |
6F5-45113-A2-00 |
from US $37.70 |
||
|
15
|
15
93606-25M00-00 Pin, Dowel |
93606-25M00-00 |
from US $2.92 |
||
|
16
|
16
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
16
|
16
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.24 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
18
|
18
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
20
|
20
676-45114-A0-00 Joint, Tube D'arbre |
676-45114-A0-00 |
US $17.28 |
||
| replacement | |||||
|
20
|
20
676-45114-A1-00 Gasket, Upper Casing |
676-45114-A1-00 |
from US $12.24 |
||
|
21
|
21
676-41137-03-94 Guide, Exhaust |
676-41137-03-94 |
US $99.83 |
||
| replacement | |||||
|
21
|
21
676-41137-04-5B Guide, Exhaust |
676-41137-04-5B |
US $99.83 |
||
|
22
|
22
6E9-41131-00-5B
Pipe D'echappement
|
6E9-41131-00-5B |
— | ||
|
23
|
23
676-41133-A0-00 Joint, Pipe D'echappement |
676-41133-A0-00 |
US $13.74 |
||
| replacement | |||||
|
23
|
23
676-41133-A1-00 Gasket, Exhaust Manifold 1 |
676-41133-A1-00 |
from US $8.28 |
||
|
24
|
24
676-45127-00-00 Seal |
676-45127-00-00 |
from US $11.58 |
||
|
25
|
25
97595-06240-00
Bolt, With Washer
|
97595-06240-00 |
— | ||
|
26
|
26
676-41116-00-5B
Protector
|
676-41116-00-5B |
— | ||
|
27
|
27
676-45128-00-00 Seal 2 |
676-45128-00-00 |
from US $26.49 |
||
|
28
|
28
676-45126-00-5B
Plate, Seal Damper
|
676-45126-00-5B |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
90105-06M01-00 Bolt, Flange |
90105-06M01-00 |
from US $3.02 |
||
|
30
|
30
6A0-45318-00-00 Bushing, Drive ShaftLong |
6A0-45318-00-00 |
from US $35.06 |
||
|
31
|
31
93420-36M01-00 CirclipLong |
93420-36M01-00 |
from US $5.64 |
||
|
32
|
32
676-45151-00-4D Capuchon, FourreauUr short |
676-45151-00-4D |
from US $35.37 |
||
|
32
|
32
676-45151-10-4D Capuchon, FourreauUr long |
676-45151-10-4D |
from US $40.20 |
||
