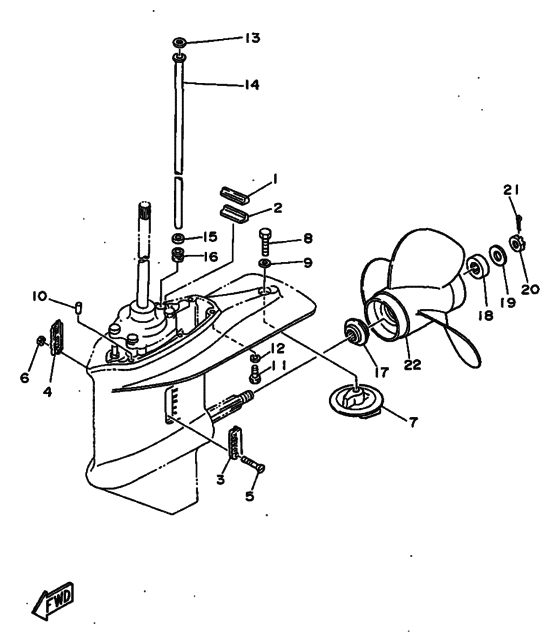

Lower casing & drive Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1998
- Model
- 40Q
- Model code
- 6R6
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (01C)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-45375-00-00 Damper, Seal |
663-45375-00-00 |
from US $8.64 |
||
|
2
|
2
663-45376-00-94
Guide, Seal Damper
|
663-45376-00-94 |
— | ||
| replacement | |||||
|
2
|
2
663-45376-00-00 Guide, Seal Damper |
663-45376-00-00 |
from US $5.95 |
||
|
3
|
3
688-45214-02-00 Cover, Water Inlet 1 |
688-45214-02-00 |
from US $9.26 |
||
|
4
|
4
688-45215-02-00 Cover, Water Inlet 2 |
688-45215-02-00 |
from US $7.94 |
||
|
5
|
5
90142-05M05-00 Vis, Tete Noyee |
90142-05M05-00 |
US $2.55 |
||
| replacement | |||||
|
5
|
5
90152-05M09-00 Screw, Countersunk |
90152-05M09-00 |
from US $2.55 |
||
|
6
|
6
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2 |
||
|
7
|
7
679-45371-00-00 Tab-Trim |
679-45371-00-00 |
from US $20.54 |
||
|
8
|
8
97095-10030-00 Bolt |
97095-10030-00 |
from US $7.65 |
||
|
9
|
9
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
10
|
10
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
11
|
11
97095-08030-00 Bolt |
97095-08030-00 |
US $2.69 |
||
| replacement | |||||
|
11
|
11
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
13
|
13
90202-12060-00 Washer, Plate |
90202-12060-00 |
from US $2.55 |
||
|
14
|
14
676-44361-10-00 Tube, Water 1UR LONG |
676-44361-10-00 |
from US $20.84 |
||
|
14
|
14
676-44361-00-00 Tube, Water 1UR SHORT |
676-44361-00-00 |
from US $30.28 |
||
|
15
|
15
904-30120-72-00 Gasket |
904-30120-72-00 |
from US $2.98 |
||
|
16
|
16
663-44367-00-00 Damper, Water Seal 3 |
663-44367-00-00 |
US $3.54 |
||
|
17
|
17
663-45987-02-00 Spacer 1 |
663-45987-02-00 |
from US $47.39 |
||
|
18
|
18
670-45997-02-00 Spacer 2 |
670-45997-02-00 |
from US $30.08 |
||
|
19
|
19
92990-16200-00 Washer, Plain |
92990-16200-00 |
from US $4.25 |
||
|
20
|
20
90171-16011-00 Nut, Castle |
90171-16011-00 |
from US $7.62 |
||
|
21
|
21
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
22
|
22
663-45945-02-EL Propeller (3X11-1/8"x13"-G)UR |
663-45945-02-EL |
US $248.69 |
||
| replacements | |||||
|
22
|
22
69W-45945-00-00 Propeller (3X11-1/8"x13"-G)UR |
69W-45945-00-00 |
from US $245.64 |
||
|
22
|
22
6H5-45945-00-00 Propeller (3X10-3/8"x13"-G)UR |
6H5-45945-00-00 |
from US $248.69 |
||
|
22
|
22
663-45970-60-98 Propeller (3X11-3/4"x12"-G)UR STAINLESS STEEL PROPELL |
663-45970-60-98 |
US $702.24 |
||
| replacement | |||||
|
22
|
22
663-45970-60-00 Propeller (3X11-3/4"x12"-G)UR STAINLESS STEEL PROPELL |
663-45970-60-00 |
from US $702.24 |
||
|
22
|
22
663-45972-60-98 Propeller (3X12"x11"-G)UR STAINLESS STEEL PROPELL |
663-45972-60-98 |
US $702.24 |
||
| replacement | |||||
|
22
|
22
663-45972-60-00 Propeller (3X12"x11"-G)UR STAINLESS STEEL PROPELL |
663-45972-60-00 |
from US $702.24 |
||
|
22
|
22
663-45974-60-98 Propeller (3X11-1/2"x13"-G)UR STAINLESS STEEL PROPELL |
663-45974-60-98 |
US $702.24 |
||
| replacement | |||||
|
22
|
22
663-45974-60-00 Propeller (3X11-1/2"x13"-G)UR STAINLESS STEEL PROPELL |
663-45974-60-00 |
from US $702.24 |
||
|
22
|
22
663-45930-00-98 Propeller (3X10-1/4"x14"-G)UR STAINLESS STEEL PROPELL |
663-45930-00-98 |
US $702.24 |
||
| replacement | |||||
|
22
|
22
663-45930-00-00 Propeller (3X10-1/4"x14"-G)Propeller assy (3x10-1/4"x14"-g) UR STAINLESS STEEL PROPELL |
663-45930-00-00 |
from US $702.24 |
||
|
22
|
22
663-45976-00-98 Propeller (3X10-1/4"x15"-G)UR STAINLESS STEEL PROPELL |
663-45976-00-98 |
US $702.24 |
||
| replacements | |||||
|
22
|
22
697-45970-00-00 Propeller (3X11-1/4"x14"-G)UR STAINLESS STEEL PROPELL |
697-45970-00-00 |
from US $702.24 |
||
|
22
|
22
663-45976-00-00 Propeller (3X10-1/4"x15"-G)UR STAINLESS STEEL PROPELL |
663-45976-00-00 |
from US $702.24 |
||
|
22
|
22
663-45978-00-98 Propeller (3X10-1/4"x16"-G)UR STAINLESS STEEL PROPELL |
663-45978-00-98 |
US $702.24 |
||
| replacement | |||||
|
22
|
22
663-45978-00-00 Propeller (3X10-1/4"x16"-G)UR STAINLESS STEEL PROPELL |
663-45978-00-00 |
from US $702.24 |
||
|
22
|
22
663-45941-01-EL Propeller (3X10-3/4"x17"-G)UR |
663-45941-01-EL |
US $248.69 |
||
| replacement | |||||
|
22
|
22
663-45941-01-00 Propeller (3X10-3/4"x17"-G)UR |
663-45941-01-00 |
from US $248.69 |
||
|
22
|
22
663-45943-02-EL Propeller (3X11"x15"-G)UR |
663-45943-02-EL |
US $248.69 |
||
| replacements | |||||
|
22
|
22
69W-45943-00-00 Propeller (3X11"x15"-G)UR |
69W-45943-00-00 |
from US $248.69 |
||
|
22
|
22
6H5-45943-00-00 Propeller (3X10"x15"-G)UR |
6H5-45943-00-00 |
from US $248.69 |
||
|
22
|
22
663-45947-02-EL Propeller (3X11-5/8"x11"-G)UR |
663-45947-02-EL |
US $248.69 |
||
| replacement | |||||
|
22
|
22
69W-45947-00-00 Propeller (3X11-5/8"x11"-G)UR |
69W-45947-00-00 |
from US $144.48 |
||
|
22
|
22
663-45949-01-EL Propeller (3X10-3/4"x16"-G)UR |
663-45949-01-EL |
US $248.69 |
||
| replacement | |||||
|
22
|
22
663-45949-01-00 Propeller (3X10-3/4"x16"-G)UR |
663-45949-01-00 |
from US $248.69 |
||
|
22
|
22
663-45952-02-EL Propeller (3X11-3/8"x12"-G)UR |
663-45952-02-EL |
US $248.69 |
||
| replacements | |||||
|
22
|
22
6H5-45952-00-00 Propeller (3X10-5/8"x12"-G)UR |
6H5-45952-00-00 |
from US $248.69 |
||
|
22
|
22
69W-45952-00-00 Propeller (3X11-3/8 X12 -G)UR |
69W-45952-00-00 |
from US $248.69 |
||
|
22
|
22
663-45954-01-EL Propeller (3X11-3/4"x10"-G)UR |
663-45954-01-EL |
US $248.69 |
||
| replacement | |||||
|
22
|
22
663-45954-01-00 Propeller (3X11-3/4"x10"-G)UR |
663-45954-01-00 |
from US $138.86 |
||
|
22
|
22
663-45956-01-EL Propeller (3X12-1/4"x9"-G)UR |
663-45956-01-EL |
US $248.69 |
||
| replacement | |||||
|
22
|
22
663-45956-01-00 Propeller (3X12-1/4"x9"-G)UR |
663-45956-01-00 |
from US $248.69 |
||
|
22
|
22
663-45958-01-EL Propeller (3X11-1/4"x14"-G)UR |
663-45958-01-EL |
from US $215.78 |
||
| replacement | |||||
|
22
|
22
663-45958-01-00 Propeller (3X11-1/4"x14"-G)UR |
663-45958-01-00 |
from US $248.69 |
||
