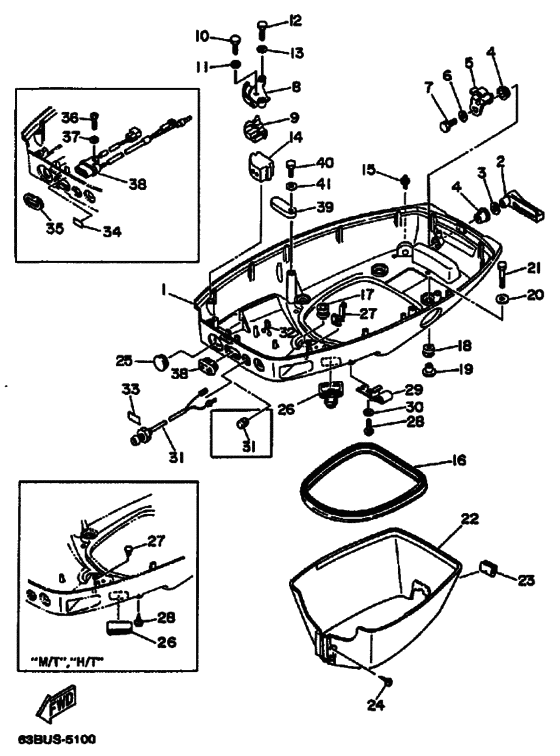

Bottom cowling Diagram Yamaha 40 M(H/E/T)OS/L
- Year
- 1996
- Model
- 40V
- Model code
- 63C
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-42711-07-4D Cowling, Bottom 1UR |
6H4-42711-07-4D |
US $611.16 |
||
| replacement | |||||
|
1
|
1
6H4-42711-07-8D Cowling, Bottom 1UR |
6H4-42711-07-8D |
from US $611.16 |
||
|
1
|
1
6H4-42711-25-4D Cowling, Bottom 1UR PTT |
6H4-42711-25-4D |
US $611.16 |
||
| replacement | |||||
|
1
|
1
6H4-42711-25-8D Cowling, Bottom 1UR PTT |
6H4-42711-25-8D |
US $677.05 |
||
|
2
|
2
6H4-42815-00-00 Lever, Clamp |
6H4-42815-00-00 |
from US $17.01 |
||
|
3
|
3
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.32 |
||
|
4
|
4
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
5
|
5
6H4-42816-00-00 Lever, Clamp |
6H4-42816-00-00 |
from US $8.08 |
||
|
6
|
6
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
7
|
7
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
7
|
7
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
8
|
8
6H4-48531-11-94 Bracket, Remote Control 1 |
6H4-48531-11-94 |
from US $17 |
||
|
9
|
9
6H4-48532-11-94 Bracket, Remote Control 2 |
6H4-48532-11-94 |
from US $31.17 |
||
|
10
|
10
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
11
|
11
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6H4-42724-20-00 GrommetUR |
6H4-42724-20-00 |
US $8.78 |
||
|
14
|
14
6H4-42724-00-00 GrommetUR M |
6H4-42724-00-00 |
from US $9.78 |
||
| replacement | |||||
|
14
|
14
6H4-42724-01-00 GrommetUR M |
6H4-42724-01-00 |
from US $9.78 |
||
|
15
|
15
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
16
|
16
6H4-42716-00-00 Rubber, Seal 1 |
6H4-42716-00-00 |
US $12.33 |
||
|
17
|
17
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
18
|
18
90480-09M21-00 Grommet |
90480-09M21-00 |
from US $2.66 |
||
|
19
|
19
90387-06M41-00 Collar |
90387-06M41-00 |
from US $3.64 |
||
|
20
|
20
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
21
|
21
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
21
|
21
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
22
|
22
63D-42741-00-4D Apron |
63D-42741-00-4D |
US $107.35 |
||
| replacement | |||||
|
22
|
22
63D-42741-00-8D Apron |
63D-42741-00-8D |
from US $107.35 |
||
|
23
|
23
63D-42717-00-00 Rubber, Seal 2 |
63D-42717-00-00 |
from US $8.50 |
||
|
24
|
24
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
24
|
24
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $1.98 |
||
|
25
|
25
676-42726-00-00 GrommetUR |
676-42726-00-00 |
from US $3.97 |
||
|
25
|
25
6H4-42726-40-00 GrommetUR M |
6H4-42726-40-00 |
from US $4.11 |
||
|
26
|
26
688-42726-10-00 GrommetUR PTT |
688-42726-10-00 |
US $4.11 |
||
|
26
|
26
6H4-42726-00-00 GrommetUR M/T,H/T |
6H4-42726-00-00 |
US $3.68 |
||
|
27
|
27
90464-15M08-00 ClampUR PTT |
90464-15M08-00 |
from US $1.84 |
||
|
27
|
27
703-82119-00-00 Cover, Lead WireUR M/T,H/T |
703-82119-00-00 |
from US $2.13 |
||
|
28
|
28
90157-06M01-00 Screw, Pan HeadUR PTT |
90157-06M01-00 |
from US $2.69 |
||
|
28
|
28
90338-05M03-00 PlugUR M/T,H/T |
90338-05M03-00 |
from US $1.84 |
||
|
29
|
29
6E5-24367-01-00 Clamp, Fuel Pipe 2PTT |
6E5-24367-01-00 |
from US $10.26 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646)PTT |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
6H4-42725-00-00 GrommetUR |
6H4-42725-00-00 |
from US $2.41 |
||
|
31
|
31
6J8-85410-00-00 Emergency Signal Light AssyUR |
6J8-85410-00-00 |
from US $37.86 |
||
|
32
|
32
904-65181-47-00 ClampUR |
904-65181-47-00 |
from US $1.70 |
||
|
33
|
33
6H4-85415-10-00 Mark, Signal LampUR |
6H4-85415-10-00 |
from US $1.98 |
||
|
34
|
34
63D-84342-00-00 Seat, EmblemUR |
63D-84342-00-00 |
from US $4.82 |
||
|
35
|
35
6H4-83589-00-00 GasketUR |
6H4-83589-00-00 |
US $0.99 |
||
| replacement | |||||
|
35
|
35
6FM-83589-00-00 GasketUR |
6FM-83589-00-00 |
from US $0.99 |
||
|
36
|
36
97880-06014-00 Screw, Pan HeadUR |
97880-06014-00 |
US $2.55 |
||
| replacement | |||||
|
36
|
36
98580-06016-00 Screw Pan HeadUR |
98580-06016-00 |
from US $2.55 |
||
|
37
|
37
929-90066-00-00 Washer, Plain (646)UR |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
63D-84301-00-00 Pilot Light Assy 1UR |
63D-84301-00-00 |
from US $112.46 |
||
|
38
|
38
6H3-42727-00-00 GrommetUR |
6H3-42727-00-00 |
US $6.38 |
||
|
39
|
39
6E5-82588-00-00 Plate |
6E5-82588-00-00 |
from US $5.67 |
||
|
40
|
40
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
40
|
40
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
41
|
41
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
