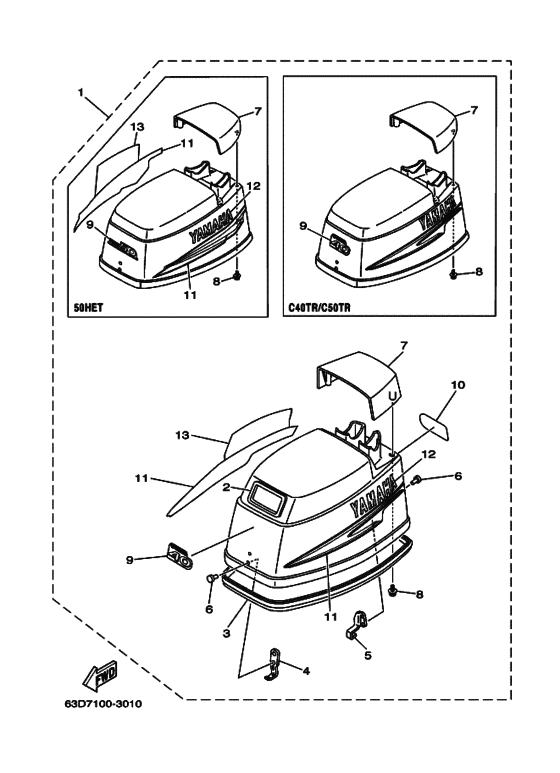

Top cowling Diagram Yamaha 40 M(H/E/T)OS/L
- Year
- 2003
- Model
- 40V
- Model code
- 63B
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (060)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63B-42610-30-4D Top Cowling AssyC40,40V |
63B-42610-30-4D |
US $850.47 |
||
|
2
|
2
6H4-15761-00-00 Seal, Rubber 1 |
6H4-15761-00-00 |
from US $12.04 |
||
|
3
|
3
6H4-42615-00-00 Seal |
6H4-42615-00-00 |
from US $54.30 |
||
|
4
|
4
6H4-42651-00-00 Hook |
6H4-42651-00-00 |
from US $13.03 |
||
|
5
|
5
6H4-42652-00-00 Hook |
6H4-42652-00-00 |
from US $13.03 |
||
|
6
|
6
90266-04M01-00 Rivet |
90266-04M01-00 |
from US $2.83 |
||
|
7
|
7
6H4-42613-01-4D M0Lding Air Duct |
6H4-42613-01-4D |
US $114.40 |
||
| replacement | |||||
|
7
|
7
6H4-42613-01-8D Molding, Air Duct |
6H4-42613-01-8D |
from US $114.40 |
||
|
8
|
8
90119-06M99-00 Bolt, With Washer |
90119-06M99-00 |
from US $3.12 |
||
| replacement | |||||
|
8
|
8
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
9
|
9
63D-42677-30-00 Graphic, FrontC40,40V |
63D-42677-30-00 |
US $15.16 |
||
| replacement | |||||
|
9
|
9
6BG-42677-00-00 Graphic, FrontC40,40V |
6BG-42677-00-00 |
from US $15.16 |
||
|
10
|
10
63D-42678-20-00 Graphic, RearC40,40V |
63D-42678-20-00 |
US $15.16 |
||
| replacement | |||||
|
10
|
10
6BG-42677-00-00 Graphic, FrontC40,40V |
6BG-42677-00-00 |
from US $15.16 |
||
|
11
|
11
63D-W0070-20-00 Graphic SetC40,C50,40V,50H |
63D-W0070-20-00 |
US $128.35 |
||
|
12
|
12
63D-42681-20-00 Mark, CowlingC40,C50,40V,50H |
63D-42681-20-00 |
US $13.74 |
||
|
13
|
13
63D-42682-20-00 Mark, CowlingC40,C50,40V,50H |
63D-42682-20-00 |
US $7.78 |
||
