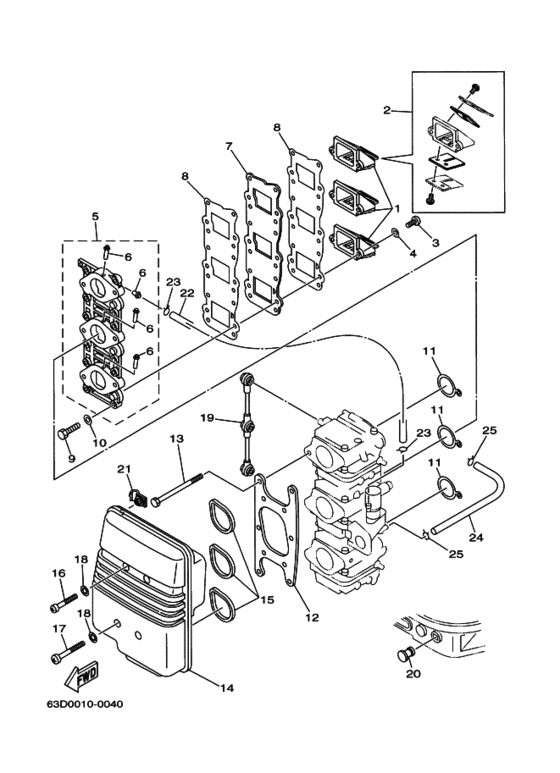

Integ unit assy spr Diagram Yamaha 40 M(H/E/T)OS/L
- Year
- 2001
- Model
- 40V
- Model code
- 63D
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-13610-00-00 Reed Valve Assyリ−ドバルブアセンブリ; |
6H5-13610-00-00 |
from US $76.54 |
||
|
2
|
2
6H4-W0004-00-00 Reed Set．リ−ドセツト; |
6H4-W0004-00-00 |
from US $23.38 |
||
|
3
|
3
97880-05014-00 Screw, Pan Head |
97880-05014-00 |
from US $1.28 |
||
| replacements | |||||
|
3
|
3
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
|
3
|
3
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
4
|
4
92990-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
5
|
5
6H4-13641-12-94 Manifold, Intake 1マニホ−ルド １; |
6H4-13641-12-94 |
US $119.37 |
||
| replacement | |||||
|
5
|
5
6H4-13641-12-00 Manifold, Intake 1マニホ−ルド １; |
6H4-13641-12-00 |
from US $119.37 |
||
|
6
|
6
6H1-14485-00-00 Pipe, Joint．パイプ，ジヨイント; |
6H1-14485-00-00 |
from US $5.38 |
||
|
7
|
7
6H4-13624-01-94 Plate,reed Valveプレ−ト，リードバルブ; |
6H4-13624-01-94 |
US $15.30 |
||
| replacement | |||||
|
7
|
7
6H4-13624-01-00 Plate, Reed Valveプレ−ト，リードバルブ; |
6H4-13624-01-00 |
from US $15.30 |
||
|
8
|
8
6H4-13621-A1-00 Gasket, Valve Seatガスケツト，バルブシ−ト; |
6H4-13621-A1-00 |
from US $9.95 |
||
|
9
|
9
97013-06020-00 Boltボルト; |
97013-06020-00 |
from US $1.42 |
||
|
10
|
10
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
6H4-14198-01-00 Gasket |
6H4-14198-01-00 |
from US $2.66 |
||
|
12
|
12
6H4-14406-00-00 Hinge |
6H4-14406-00-00 |
from US $20.54 |
||
|
13
|
13
97095-06095-00 Boltボルト; |
97095-06095-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
97D95-06095-00 ボルト; |
97D95-06095-00 |
from US $1.70 |
||
|
14
|
14
6H4-14431-02-00 Silencer, Intake 1サイレンサ，インテ−ク １; ＵＲ ＥＯ，ＥＤＯ，ＥＴＯ |
6H4-14431-02-00 |
from US $61.20 |
||
|
14
|
14
6H4-14431-13-00 Silencer, Intake 1サイレンサ，インテ−ク １; ＵＲ ＷＨＤＯ，ＷＨＴＯ |
6H4-14431-13-00 |
from US $61.20 |
||
|
15
|
15
6H3-14457-01-00 Seal |
6H3-14457-01-00 |
US $3.54 |
||
| replacement | |||||
|
15
|
15
6H3-14457-02-00 Seal |
6H3-14457-02-00 |
from US $3.54 |
||
|
16
|
16
97885-06040-00 Screw, Pan Head(6H4)スクリユ，パンヘツド; |
97885-06040-00 |
from US $2.27 |
||
| replacement | |||||
|
16
|
16
98580-06040-00 Screw, Pan Head (90501-06040-00スクリユ，パンヘツド; |
98580-06040-00 |
from US $1.21 |
||
|
17
|
17
97885-06055-00 Screw, Pan Head(6H4)スクリユ，パンヘツド; |
97885-06055-00 |
US $3.40 |
||
| replacement | |||||
|
17
|
17
98580-06555-00 Screw, Panhed (Gc2)スクリユ，パンヘツド; |
98580-06555-00 |
from US $3.40 |
||
|
18
|
18
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
19
|
19
6H4-41217-01-00 Rod, Accel. Leverロツド，アクセルレバー; |
6H4-41217-01-00 |
from US $13.88 |
||
|
20
|
20
6G1-42748-00-00 Grommet |
6G1-42748-00-00 |
US $5.24 |
||
|
21
|
21
90464-06M19-00 ClampＷＨＤＯ，ＷＨＴＯ |
90464-06M19-00 |
from US $2.24 |
||
|
22
|
22
90445-07MA5-00 Hose (L150)Ｌ１５０ |
90445-07MA5-00 |
US $3.83 |
||
| replacement | |||||
|
22
|
22
90445-07MA3-00 Hose (L200)Ｌ１５０ |
90445-07MA3-00 |
from US $2.32 |
||
|
23
|
23
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
24
|
24
6H3-14349-00-00 Pipe |
6H3-14349-00-00 |
from US $3.68 |
||
|
25
|
25
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
