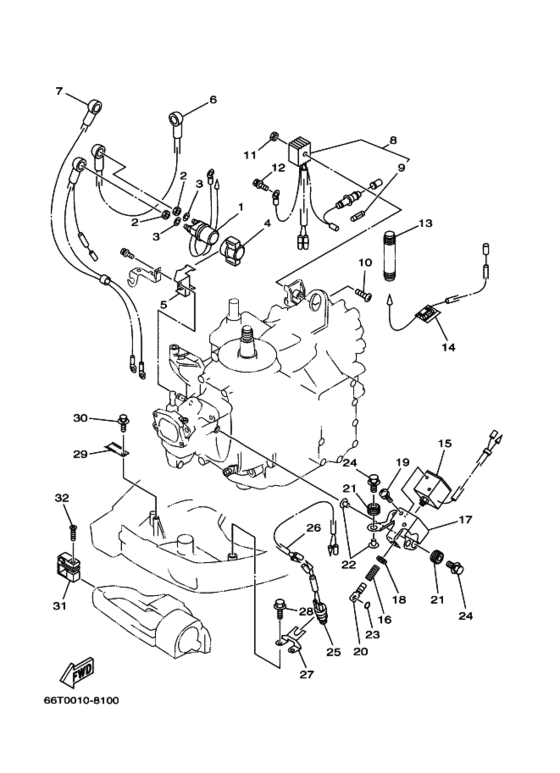

Electrical 2 Diagram Yamaha 40 M(W/T)HS/L
- Year
- 2000
- Model
- 40X
- Model code
- 66T
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-8194A-10-00 Relayリレー; |
6G1-8194A-10-00 |
US $75.57 |
||
| replacement | |||||
|
1
|
1
6G1-81941-10-00 Starter Relay Assyリレー; |
6G1-81941-10-00 |
from US $55.56 |
||
|
2
|
2
90170-06M30-00 Nutナツト; |
90170-06M30-00 |
from US $1.84 |
||
|
3
|
3
90204-06M00-00 Washer, Springワツシヤ，スプリング; |
90204-06M00-00 |
from US $1.84 |
||
|
4
|
4
6G1-81952-00-00 Holder, Relayホルダ−，リレ−; |
6G1-81952-00-00 |
US $7.93 |
||
|
5
|
5
6L2-81945-00-00 Plate, Switch Fittingプレ−ト，スイツチフイツテイング; ＷＨ |
6L2-81945-00-00 |
from US $15.58 |
||
|
6
|
6
6E5-82117-00-00 Wire, Lead |
6E5-82117-00-00 |
US $26.35 |
||
| replacements | |||||
|
6
|
6
6E5-82117-01-00 Wire, Lead |
6E5-82117-01-00 |
US $26.35 |
||
|
6
|
6
6E5-82117-02-00 Wire, Lead |
6E5-82117-02-00 |
US $19.33 |
||
|
7
|
7
66T-82105-J0-00 Battery Cableワイヤハ−ネス; |
66T-82105-J0-00 |
US $161.65 |
||
| replacements | |||||
|
7
|
7
66T-82105-J1-00 Battery Cableワイヤハ−ネス; |
66T-82105-J1-00 |
US $161.65 |
||
|
7
|
7
66T-82105-J2-00 Battery Cableワイヤハ−ネス; |
66T-82105-J2-00 |
US $183.56 |
||
|
7
|
7
66T-82105-J2-00 Battery Cableワイヤハ−ネス; |
66T-82105-J2-00 |
US $183.56 |
||
|
8
|
8
6G1-81970-61-00
Rectifier Assy
レクチフアイヤアセンブリ; |
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
8
|
8
6G1-81970-62-00 Rectifier Assyレクチフアイヤアセンブリ; |
6G1-81970-62-00 |
US $88.98 |
||
|
8
|
8
6G1-81970-63-00 Rectifier Assyレクチフアイヤアセンブリ; |
6G1-81970-63-00 |
from US $94.08 |
||
|
9
|
9
6G1-82151-00-00 Fuse (10A)．フユ−ズ; |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
1E6-82151-00-00 Fuse (10A)．フユ−ズ; |
1E6-82151-00-00 |
from US $1.70 |
||
|
10
|
10
97980-05230-00 Screw, With Washerスクリユ，ウイズワツシヤ; |
97980-05230-00 |
US $1.98 |
||
|
11
|
11
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
12
|
12
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.13 |
||
|
13
|
13
66T-83557-00-00 Tube (I.dia:13Mm)ＵＲ ＷＨ |
66T-83557-00-00 |
from US $3.47 |
||
|
13
|
13
6N7-83557-00-00 Tube (I.dia:22Mm)チユーブ; ＵＲ ＷＴ |
6N7-83557-00-00 |
from US $4.11 |
||
|
14
|
14
66T-82115-00-00 Wire, Plus LeadＷＨ |
66T-82115-00-00 |
US $17.71 |
||
|
15
|
15
6J4-86111-00-00 Coil, Solenoidコイル，ソレノイド; ＷＴ |
6J4-86111-00-00 |
US $185.13 |
||
|
16
|
16
6J4-86116-00-00 Wire, PullＷＴ |
6J4-86116-00-00 |
US $6.38 |
||
|
17
|
17
66T-86112-00-00 Stay, SolenoidＷＴ |
66T-86112-00-00 |
US $42.42 |
||
|
18
|
18
90480-10155-00 GrommetＷＴ |
90480-10155-00 |
from US $3.83 |
||
|
19
|
19
97880-05008-00 Screw, Pan HeadＷＴ |
97880-05008-00 |
US $2.55 |
||
| replacements | |||||
|
19
|
19
999-99999-99-00
Not Available
ＷＴ |
999-99999-99-00 |
— | ||
|
19
|
19
97980-05108-00 Screw, With WasherＷＴ |
97980-05108-00 |
from US $2.55 |
||
|
20
|
20
682-86117-00-00 Hook, Wire Pullフツク，ワイヤプル; ＷＴ |
682-86117-00-00 |
from US $2.69 |
||
|
21
|
21
90480-10M23-00 GrommetＷＴ |
90480-10M23-00 |
from US $4.68 |
||
|
22
|
22
90387-06M60-00 CollarＷＴ |
90387-06M60-00 |
from US $3.38 |
||
|
23
|
23
93210-03261-00 O-RingＷＴ |
93210-03261-00 |
from US $1.70 |
||
|
24
|
24
90119-06M88-00 Bolt, With WasherＷＴ |
90119-06M88-00 |
from US $2.98 |
||
| replacement | |||||
|
24
|
24
90119-06311-00 ＷＴ |
90119-06311-00 |
from US $1.21 |
||
|
25
|
25
6F5-82540-00-00 Neutral Switch Assyニユ−トラルスイツチアセンブリ; ＷＨ |
6F5-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
25
|
25
688-82540-12-00 Neutral Switch Assyニユ−トラルスイツチアセンブリ; ＷＨ |
688-82540-12-00 |
from US $39.24 |
||
|
26
|
26
66T-82553-00-00 Extension, Wire LeadＷＨ |
66T-82553-00-00 |
US $14.31 |
||
|
27
|
27
66T-82554-00-00 Stay, Neutral SwitchＷＨ |
66T-82554-00-00 |
US $8.22 |
||
|
28
|
28
90109-06M86-00 BoltＷＨ |
90109-06M86-00 |
from US $2.52 |
||
|
29
|
29
90465-20M31-00 Clamp |
90465-20M31-00 |
US $6.52 |
||
|
30
|
30
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
31
|
31
65W-82594-00-00 ClampＷＨ |
65W-82594-00-00 |
from US $6.38 |
||
|
32
|
32
90161-06M00-00 Screw, TappingＷＨ |
90161-06M00-00 |
US $2.55 |
||
| replacement | |||||
|
32
|
32
90161-06M03-00 Screw, Tapping(6E7)ＷＨ |
90161-06M03-00 |
from US $2.55 |
||
