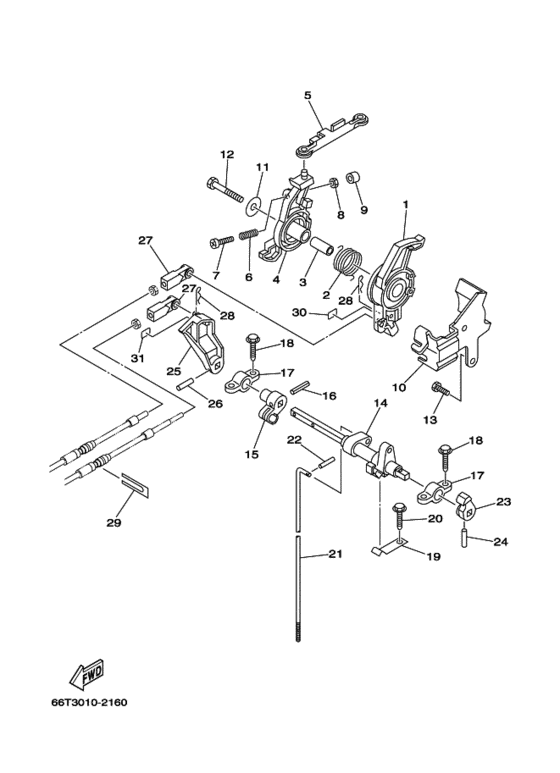

ｺﾝﾄﾛ-ﾙ Diagram Yamaha 40 M(W/T)HS/L
- Year
- 2003
- Model
- 40X
- Model code
- 66T
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66T-41638-00-00 Pulley |
66T-41638-00-00 |
US $25.64 |
||
|
2
|
2
66T-42167-00-00 Spring 1スプリング １; |
66T-42167-00-00 |
from US $6.62 |
||
|
3
|
3
90387-08M16-00 Collarカラー; |
90387-08M16-00 |
from US $2 |
||
| replacement | |||||
|
3
|
3
90387-084J8-00 Collarカラー; |
90387-084J8-00 |
US $4.77 |
||
|
4
|
4
66T-41631-01-00 Lever, Magneto Controlレバー，マグネツトコントロール; |
66T-41631-01-00 |
US $43.11 |
||
|
5
|
5
66T-41237-00-00 Joint, Link |
66T-41237-00-00 |
from US $3.64 |
||
|
6
|
6
90501-10M84-00 Spring, Compression |
90501-10M84-00 |
US $4.39 |
||
|
7
|
7
97880-06035-00 Screw, Pan Head |
97880-06035-00 |
US $2.13 |
||
| replacement | |||||
|
7
|
7
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
8
|
8
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
8
|
8
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
9
|
9
688-44194-00-00 Capキヤツプ; |
688-44194-00-00 |
from US $5.95 |
||
|
10
|
10
66T-14497-00-00 Stay, Throttle Wireステー，スロツトルワイヤ; |
66T-14497-00-00 |
US $39.51 |
||
|
11
|
11
90201-08M54-00 Washer, Plateワツシヤ，プレート; |
90201-08M54-00 |
from US $2.32 |
||
|
12
|
12
97095-08045-00 Boltボルト; |
97095-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
97080-08045-00 Bolt, Hexagonボルト; |
97080-08045-00 |
from US $4.25 |
||
|
13
|
13
97095-06014-00 Boltボルト; |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
97D95-06014-00 Bolt, Hexagon Deep Rボルト; |
97D95-06014-00 |
from US $1.07 |
||
|
14
|
14
66T-44121-00-00 Lever, Shift Rodレバー，シフトロツド; |
66T-44121-00-00 |
US $15.58 |
||
| replacement | |||||
|
14
|
14
66T-44121-01-00 Lever, Shift Rodレバー，シフトロツド; |
66T-44121-01-00 |
US $15.58 |
||
|
15
|
15
66M-44122-00-00 Bushing, Shift Rod Leverブツシング，シフトロツドレバー; |
66M-44122-00-00 |
from US $5.53 |
||
|
16
|
16
90254-03M05-00 Pin, Spring |
90254-03M05-00 |
from US $2.55 |
||
|
17
|
17
6F5-41662-00-00 Bracket 2ブラケツト; |
6F5-41662-00-00 |
from US $16.20 |
||
|
18
|
18
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
19
|
19
682-44116-01-00 Spring |
682-44116-01-00 |
from US $4.68 |
||
|
20
|
20
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
21
|
21
66T-44143-10-00 Rod, Shift |
66T-44143-10-00 |
from US $18.52 |
||
|
22
|
22
91490-16012-00 Pin. Cotter |
91490-16012-00 |
US $2.55 |
||
| replacement | |||||
|
22
|
22
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
23
|
23
65W-44173-00-00 Lever, Shift Controlレバー，シフトコントロール; ＷＨ |
65W-44173-00-00 |
US $10.63 |
||
| replacement | |||||
|
23
|
23
65W-44173-01-00 Lever, Shift Controlレバー，シフトコントロール; ＷＨ |
65W-44173-01-00 |
from US $9 |
||
|
24
|
24
90254-03M04-00 Pin, SpringＷＨ |
90254-03M04-00 |
from US $2.69 |
||
|
25
|
25
66T-44125-01-00 Lever, Shift Rodレバー，シフトロツド; |
66T-44125-01-00 |
US $10.91 |
||
|
26
|
26
90254-03M04-00 Pin, Spring |
90254-03M04-00 |
from US $2.69 |
||
|
27
|
27
663-48344-00-00
Cable End, Remote Control
ケーブルエンド，リモートコントロール; ＷＴ |
663-48344-00-00 |
— | ||
| replacement | |||||
|
27
|
27
6FM-48344-00-00 CABLE END, REMOTE CONTROLケーブルエンド，リモートコントロール; ＷＴ |
6FM-48344-00-00 |
from US $2.69 |
||
|
28
|
28
90468-18008-00 ClipＷＴ |
90468-18008-00 |
from US $1.70 |
||
|
29
|
29
6H3-48538-00-00 Clamp, Cable 1クランプ，ケーブル １; ＷＴ |
6H3-48538-00-00 |
from US $2.98 |
||
|
30
|
30
6E5-42137-10-00 Indicator, Throttleインジケータ，スロツトル; |
6E5-42137-10-00 |
from US $4.14 |
||
|
31
|
31
6F5-44191-01-00 Indicator,shiftインジケータ，シフト; |
6F5-44191-01-00 |
US $2.83 |
||
