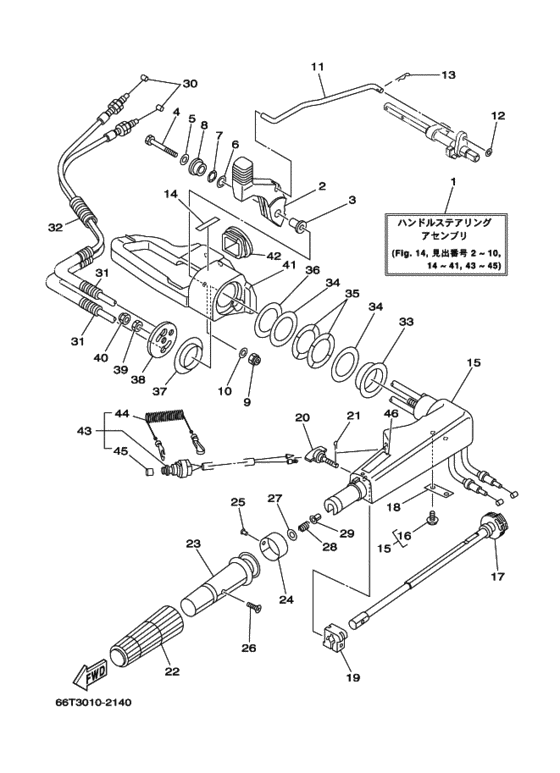

Steering (WHｼﾖｳ) Diagram Yamaha 40 M(W/T)HS/L
- Year
- 2003
- Model
- 40X
- Model code
- 66T
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66T-W0084-02-4D Handle Steering Assy |
66T-W0084-02-4D |
US $525.14 |
||
| replacement | |||||
|
1
|
1
66T-W0084-03-4D Handle Steering Assy |
66T-W0084-03-4D |
US $525.14 |
||
|
2
|
2
66T-44111-02-00 Handle, Gear Shift |
66T-44111-02-00 |
from US $15.22 |
||
|
3
|
3
90387-06M86-00 Collarカラー; |
90387-06M86-00 |
from US $8.28 |
||
|
4
|
4
97095-06050-00 Boltボルト; |
97095-06050-00 |
US $1.28 |
||
| replacement | |||||
|
4
|
4
970-80060-50-00 Boltボルト; |
970-80060-50-00 |
from US $2.98 |
||
|
5
|
5
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
90201-12M07-00 Washer, Plateワツシヤ，プレート; |
90201-12M07-00 |
from US $1.98 |
||
|
7
|
7
902-06120-52-00 Washer, Waveワツシヤ，ウエイブ; |
902-06120-52-00 |
from US $2.32 |
||
|
8
|
8
66T-42123-00-00 Bolt, Handle Joint |
66T-42123-00-00 |
US $20.54 |
||
|
9
|
9
95780-06300-00 P58 Nut, Nylonナツト，フランジ; |
95780-06300-00 |
from US $4.11 |
||
|
10
|
10
92995-06200-00 Washer, Plain |
92995-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
11
|
11
66T-44124-00-00 Link, Shift Rod |
66T-44124-00-00 |
from US $19.18 |
||
|
12
|
12
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
13
|
13
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
14
|
14
6E0-44191-11-00 Indicator, Shiftインジケータ，シフト; |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
14
|
14
6X3-44191-00-00 Indicator, Shiftインジケータ，シフト; |
6X3-44191-00-00 |
from US $4.68 |
||
|
15
|
15
65W-42101-01-4D Handle, Steering |
65W-42101-01-4D |
US $96.16 |
||
|
16
|
16
90109-06M86-00 Bolt．ボルト; |
90109-06M86-00 |
from US $2.52 |
||
|
17
|
17
65W-42138-00-00 Lever, Throttleレバー，スロツトル; |
65W-42138-00-00 |
from US $26.12 |
||
|
18
|
18
65W-42159-00-00 Stay |
65W-42159-00-00 |
from US $5.81 |
||
|
19
|
19
6G1-42126-00-00 Friction, Steering Handle Gripフリクシヨン，ステアリングハンドルグリツプ; |
6G1-42126-00-00 |
from US $8.64 |
||
| replacement | |||||
|
19
|
19
6EE-G2126-00-00 Friction, Steeringフリクシヨン，ステアリングハンドルグリツプ; |
6EE-G2126-00-00 |
from US $2.98 |
||
|
20
|
20
65W-42125-00-00 Bolt, Friction Adjusting |
65W-42125-00-00 |
from US $10.63 |
||
|
21
|
21
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
22
|
22
6F6-42177-A0-00 Rubber, Handleラバー，ハンドル; |
6F6-42177-A0-00 |
US $11.76 |
||
| replacements | |||||
|
22
|
22
6G1-42177-00-00
Rubber, Handle
ラバー，ハンドル; |
6G1-42177-00-00 |
— | ||
|
22
|
22
6G1-42177-01-00 RUBBER, HANDLEラバー，ハンドル; |
6G1-42177-01-00 |
from US $11.76 |
||
|
23
|
23
664-42119-00-00 Grip, Steering Handleグリツプ，ステアリングハンドル; |
664-42119-00-00 |
from US $20.18 |
||
|
24
|
24
6G1-42137-10-00 Indicator, Throttleインジケータ，スロツトル; |
6G1-42137-10-00 |
US $4.82 |
||
| replacement | |||||
|
24
|
24
6G1-42137-20-00 Indicator, Throttleインジケータ，スロツトル; |
6G1-42137-20-00 |
from US $4.82 |
||
|
25
|
25
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
26
|
26
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
26
|
26
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.34 |
||
|
27
|
27
92903-10600-00 Washer, Plateワツシヤ，プレート; |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
28
|
28
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
29
|
29
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
30
|
30
66T-26301-00-00 Throttle Cable Assyスロツトルケーブルアセンブリ; |
66T-26301-00-00 |
from US $18.86 |
||
|
31
|
31
90446-10M87-00 Hose (L75)ホース; |
90446-10M87-00 |
US $3.68 |
||
| replacement | |||||
|
31
|
31
90446-10M86-00 Hose (L140)ホース; |
90446-10M86-00 |
from US $3.68 |
||
|
32
|
32
90446-10M86-00 Hose (L140)ホース; |
90446-10M86-00 |
from US $3.68 |
||
|
33
|
33
90386-40MA0-00 Bush |
90386-40MA0-00 |
US $3.68 |
||
| replacement | |||||
|
33
|
33
66R-42171-00-00 Bushing |
66R-42171-00-00 |
from US $2.66 |
||
|
34
|
34
90201-43M00-00 Washer, Plateワツシヤ，プレート; |
90201-43M00-00 |
from US $2.32 |
||
|
35
|
35
90206-43M22-00 Washer, Wave |
90206-43M22-00 |
from US $9.07 |
||
|
36
|
36
90202-43M57-00 Washer, Plateワツシヤ，プレート; |
90202-43M57-00 |
from US $1.66 |
||
|
37
|
37
90386-40M99-00 Bush |
90386-40M99-00 |
from US $3.12 |
||
|
38
|
38
65W-42131-01-00 Cover, Handle Steeringカバー，ハンドルステアリング; |
65W-42131-01-00 |
from US $6.94 |
||
|
39
|
39
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
40
|
40
95780-10300-00 Nut, Flangeナツト，フランジ; |
95780-10300-00 |
from US $5.95 |
||
|
41
|
41
65W-42121-01-4D Bracket |
65W-42121-01-4D |
US $101.55 |
||
| replacement | |||||
|
41
|
41
65W-42121-01-8D BRACKET |
65W-42121-01-8D |
from US $101.55 |
||
|
42
|
42
66T-41273-00-00 Grommet |
66T-41273-00-00 |
US $7.08 |
||
|
43
|
43
66T-82575-01-00 Engine Stop Switch Assy |
66T-82575-01-00 |
from US $73.40 |
||
|
44
|
44
682-82556-00-00 Lanyard, Stop Switch．ストツパ; |
682-82556-00-00 |
from US $10.13 |
||
|
45
|
45
689-8257Y-00-00 Cap．キヤツプ; |
689-8257Y-00-00 |
from US $4.82 |
||
|
46
|
46
6E0-83627-01-00 Label, Caution 7ラベル，コーシヨン ７ ; ケイコク |
6E0-83627-01-00 |
US $6.66 |
||
