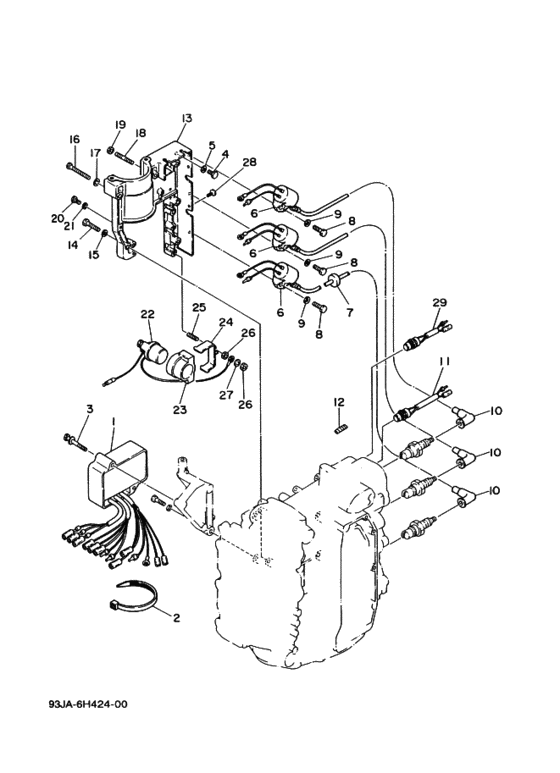

Electrical 1 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1993
- Model
- K40J
- Model code
- 6H4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-85540-02-00
C.d.i. Unit Assembly
．．．ＣＤＩユニツトアセンブリ; |
6H5-85540-02-00 |
— | ||
|
2
|
2
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
2
|
2
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.34 |
||
|
3
|
3
90119-06M51-00 Bolt, With Washer |
90119-06M51-00 |
from US $7.08 |
||
|
4
|
4
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
4
|
4
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
4
|
4
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
4
|
4
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
4
|
4
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
4
|
4
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
6H5-85570-00-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
6H5-85570-00-00 |
from US $103.90 |
||
|
7
|
7
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
8
|
8
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
8
|
8
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
663-82370-01-00 Plug Cap Assyプラグキヤツプアセンブリ; |
663-82370-01-00 |
from US $7.62 |
||
|
11
|
11
689-82560-00-00 Thermo Switch Assyサーモスイツチアセンブリ; |
689-82560-00-00 |
from US $68.25 |
||
|
12
|
12
90446-10M02-00 Hoseホース; |
90446-10M02-00 |
US $4.68 |
||
| replacement | |||||
|
12
|
12
90446-10M01-00 Hose (L60)ホース; |
90446-10M01-00 |
from US $4.68 |
||
|
13
|
13
6H4-81822-01-94 Bracket, Starting Motorブラケツト，スターテイング モータ; |
6H4-81822-01-94 |
US $59.69 |
||
| replacement | |||||
|
13
|
13
6H4-81822-02-98 Bracket, Starting Motorブラケツト，スターテイング モータ; |
6H4-81822-02-98 |
from US $59.69 |
||
|
14
|
14
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
14
|
14
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
16
|
16
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
17
|
17
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
18
|
18
95670-06640-00 Bolt, Stud |
95670-06640-00 |
from US $4.49 |
||
|
19
|
19
90179-06M24-00 Nut |
90179-06M24-00 |
from US $2.69 |
||
|
20
|
20
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
20
|
20
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
20
|
20
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
20
|
20
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
20
|
20
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
20
|
20
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
6G1-81941-10-00 Starter Relay Assyスタータリレーアセンブリ; |
6G1-81941-10-00 |
from US $54.56 |
||
|
23
|
23
6H4-81952-00-00 Holder, Relayホルダー， リレー; |
6H4-81952-00-00 |
US $9.35 |
||
|
24
|
24
6H4-81945-00-00 Plate, Switch Fittingプレート，スイツチフイツテイング; |
6H4-81945-00-00 |
from US $11.48 |
||
|
25
|
25
90116-06M22-00 Bolt, Stud |
90116-06M22-00 |
from US $4.39 |
||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
90338-05M11-00 Plug |
90338-05M11-00 |
US $1.84 |
||
| replacement | |||||
|
28
|
28
90338-05M12-00 Plug |
90338-05M12-00 |
from US $1.84 |
||
|
29
|
29
6H4-82560-00-00 Thermo Switch Assyサーモスイツチアセンブリ; |
6H4-82560-00-00 |
from US $73.64 |
||
