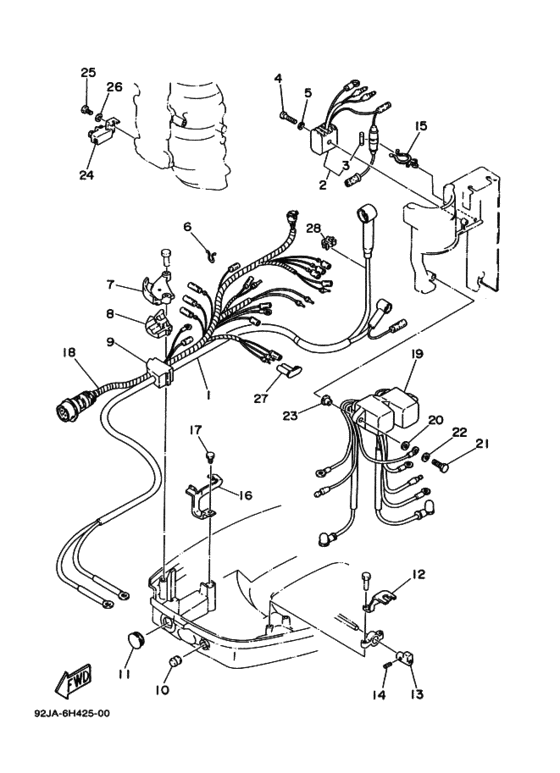

Electrical 2 (40HEO/40HEPO ﾓﾃﾞﾙ) Diagram Yamaha 40 M(E/O)S/L
- Year
- 1993
- Model
- K40J
- Model code
- 6H4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-82105-01-00 Battery Cableワイヤハーネス; |
6H4-82105-01-00 |
US $126.28 |
||
| replacements | |||||
|
1
|
1
6H4-82105-03-00 Battery Cableワイヤハーネス; |
6H4-82105-03-00 |
US $126.28 |
||
|
1
|
1
6E7-82105-12-00 Battery Cableワイヤハーネス; |
6E7-82105-12-00 |
from US $91.22 |
||
|
1
|
1
6H4-82105-04-00 Battery Cableワイヤハーネス; |
6H4-82105-04-00 |
US $135.68 |
||
|
2
|
2
6G1-81970-61-00
Rectifier Assy
レクチフアイヤアセンブリ; |
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
2
|
2
6G1-81970-62-00 Rectifier Assyレクチフアイヤアセンブリ; |
6G1-81970-62-00 |
US $88.98 |
||
|
2
|
2
6G1-81970-63-00 Rectifier Assyレクチフアイヤアセンブリ; |
6G1-81970-63-00 |
from US $94.08 |
||
|
3
|
3
6G1-82151-00-00 Fuse (10A)．フユーズ; |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
3
|
3
1E6-82151-00-00 Fuse (10A)．フユーズ; |
1E6-82151-00-00 |
from US $1.66 |
||
|
4
|
4
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
4
|
4
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
5
|
5
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
6
|
6
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
7
|
7
6H4-48531-10-94 Bracket, Remote Control 1ブラケツト，リモートコントロール １; |
6H4-48531-10-94 |
from US $17 |
||
| replacement | |||||
|
7
|
7
6H4-48531-11-94 Bracket, Remote Control 1ブラケツト，リモートコントロール １; |
6H4-48531-11-94 |
from US $17 |
||
|
8
|
8
6H4-48532-10-94
Bracket, Remote Control 2
ブラケツト，リモートコントロール ２; |
6H4-48532-10-94 |
— | ||
| replacement | |||||
|
8
|
8
6H4-48532-11-94 Bracket, Remote Control 2ブラケツト，リモートコントロール ２; |
6H4-48532-11-94 |
from US $31.17 |
||
|
9
|
9
6H4-42724-20-00 Grommet |
6H4-42724-20-00 |
US $8.78 |
||
|
10
|
10
6H4-42725-00-00 Grommetグロメツト; |
6H4-42725-00-00 |
from US $2.41 |
||
|
11
|
11
676-42726-00-00 Grommetグロメツト; |
676-42726-00-00 |
from US $3.97 |
||
|
12
|
12
6H4-82554-00-00
Stay, Neutral Switch
ステー，ニユートラルスイツチ; |
6H4-82554-00-00 |
— | ||
|
13
|
13
6H4-44173-01-00 Lever, Shift Controlレバー，シフトコントロール; |
6H4-44173-01-00 |
from US $4.99 |
||
|
14
|
14
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.34 |
||
|
15
|
15
90464-15M27-00 Clamp(6H4) |
90464-15M27-00 |
from US $1.84 |
||
|
16
|
16
6H4-82588-00-00
Plate
プレート; |
6H4-82588-00-00 |
— | ||
|
17
|
17
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
18
|
18
6H4-82590-11-00
Wire Harness Assembly
ワイヤハーネスアセンブリ; ＵＲ ４０ＨＥＯ モデル |
6H4-82590-11-00 |
— | ||
|
18
|
18
6H4-82590-22-00 Wire Harness Assemblyワイヤハーネスアセンブリ; ＵＲ ４０ＨＥＰＯ モデル |
6H4-82590-22-00 |
US $223.82 |
||
|
19
|
19
6H5-81950-00-00
Relay Assembly
リレーアセンブリ; ４０ＨＥＰＯ モデル |
6H5-81950-00-00 |
— | ||
| replacement | |||||
|
19
|
19
6H5-81950-10-00
Relay Assembly
リレーアセンブリ; ４０ＨＥＰＯ モデル |
6H5-81950-10-00 |
— | ||
|
20
|
20
92990-06200-00 Washer, Plainワツシヤ，プレーン; ４０ＨＥＰＯ モデル |
92990-06200-00 |
from US $1.07 |
||
|
21
|
21
97313-06025-00 Bolt４０ＨＥＰＯ モデル |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
21
|
21
90101-06M27-00 Bolt４０ＨＥＰＯ モデル |
90101-06M27-00 |
from US $1.35 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; ４０ＨＥＰＯ モデル |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
90387-06M05-00 Collarカラー; ４０ＨＥＰＯ モデル |
90387-06M05-00 |
from US $5.38 |
||
|
24
|
24
6H5-81920-00-00 Terminal Assyターミナルアセンブリ; ４０ＨＥＰＯ モデル |
6H5-81920-00-00 |
from US $42.14 |
||
|
25
|
25
970-13060-12-00
Bolt
４０ＨＥＰＯ モデル |
970-13060-12-00 |
— | ||
| replacement | |||||
|
25
|
25
970-80060-12-00 Bolt４０ＨＥＰＯ モデル |
970-80060-12-00 |
from US $1.98 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; ４０ＨＥＰＯ モデル |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
6E5-82582-00-00 Cover, Wire Harnessカバー，ワイヤハーネス; ４０ＨＥＰＯ モデル |
6E5-82582-00-00 |
from US $4.53 |
||
|
28
|
28
90464-07M20-00 Clamp４０ＨＥＰＯ モデル |
90464-07M20-00 |
US $1.98 |
||
