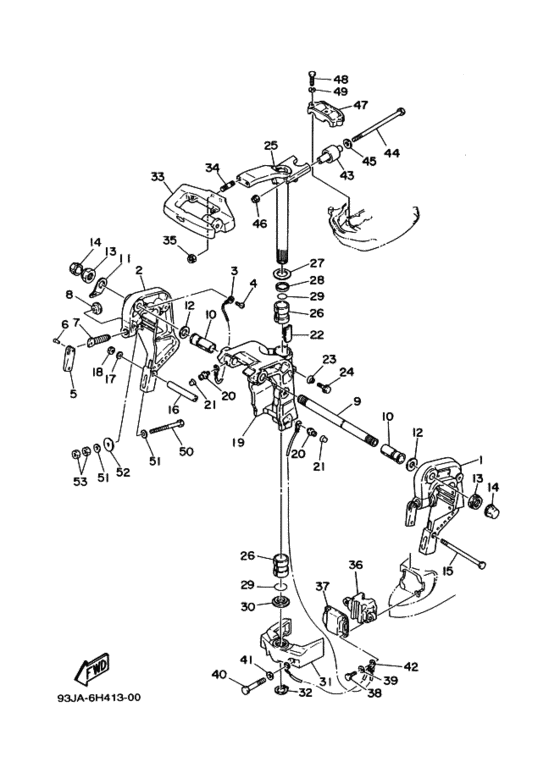

ﾌﾞﾗｹﾂﾄ 1 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1993
- Model
- K40J
- Model code
- 6H4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-43111-04-EK
Bracket, Clamp 1
ブラケツト，クランプ; |
6H4-43111-04-EK |
— | ||
| replacement | |||||
|
1
|
1
6H4-43111-05-EK
Clamp Bracket 1
ブラケツト，クランプ; |
6H4-43111-05-EK |
— | ||
|
2
|
2
6H4-43112-04-EK
Bracket, Clamp 2
ブラケツト，クランプ; |
6H4-43112-04-EK |
— | ||
|
3
|
3
6E5-82148-00-00 Wire, Lead 4ワイヤ，リード ４; |
6E5-82148-00-00 |
from US $5.64 |
||
|
4
|
4
97895-06008-00 Screw, Pan Head |
97895-06008-00 |
US $1.56 |
||
| replacements | |||||
|
4
|
4
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
4
|
4
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
5
|
5
616-43118-00-EK Handle, Transom Clipハンドル，トランサムクランプ; |
616-43118-00-EK |
US $13.60 |
||
| replacement | |||||
|
5
|
5
999-99028-08-00 Handle, Transom Clampハンドル，トランサムクランプ; |
999-99028-08-00 |
from US $13.60 |
||
|
6
|
6
90243-04M00-00 Pin |
90243-04M00-00 |
from US $7.37 |
||
|
7
|
7
90149-14M12-00 Screw |
90149-14M12-00 |
from US $17.28 |
||
|
8
|
8
648-43114-01-00 Pad, Transom Clampパツド，トランサムクランプ; |
648-43114-01-00 |
from US $5.30 |
||
|
9
|
9
6J8-43131-01-00 Bolt, Clamp Bracketボルト，クランプブラケツト; |
6J8-43131-01-00 |
from US $34.72 |
||
|
10
|
10
90386-22M69-00 1077 Bush (6K9) |
90386-22M69-00 |
from US $4.68 |
||
|
11
|
11
6J8-43113-01-00 Plate, Clamp Bracketプレート，クランプブラケツト; |
6J8-43113-01-00 |
from US $6.52 |
||
|
12
|
12
90201-22428-00 Washer, Plateワツシヤ，プレート; |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
12
|
12
90201-22M03-00 Washer, Plateワツシヤ，プレート; |
90201-22M03-00 |
from US $2.66 |
||
|
13
|
13
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
13
|
13
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
14
|
14
6G5-43145-00-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
14
|
14
6G5-43145-01-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-01-00 |
from US $6.62 |
||
|
15
|
15
90101-08339-00 Bolt |
90101-08339-00 |
from US $8.93 |
||
|
16
|
16
90387-08M03-00 Collarカラー; |
90387-08M03-00 |
US $8.93 |
||
| replacement | |||||
|
16
|
16
90387-09019-00 COLLARカラー; |
90387-09019-00 |
from US $7.28 |
||
|
17
|
17
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
18
|
18
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
18
|
18
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
18
|
18
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
19
|
19
6J8-43311-04-EK
Bracket, Swivel 1
ブラケツト，スウイベル; |
6J8-43311-04-EK |
— | ||
|
20
|
20
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.66 |
||
|
21
|
21
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリースニツプル; |
663-45119-00-00 |
US $3.68 |
||
|
22
|
22
6J8-42528-00-00 Plate, Frictionプレート，フリクシヨン; |
6J8-42528-00-00 |
US $21.54 |
||
|
23
|
23
689-43373-01-00 Seal, Damperシール，ダンパ; |
689-43373-01-00 |
US $4.53 |
||
|
24
|
24
90105-06M18-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-06M18-00 |
from US $2.74 |
||
|
25
|
25
6H4-42510-12-EK
Steering Bracketassembly
ステアリングブラケツトアセンブリ; |
6H4-42510-12-EK |
— | ||
| replacement | |||||
|
25
|
25
6H4-42510-19-EK
element
ステアリングブラケツトアセンブリ; |
6H4-42510-19-EK |
— | ||
|
26
|
26
90386-30M77-00 Bush |
90386-30M77-00 |
from US $9.92 |
||
|
27
|
27
90201-30M00-00 Washer, Plateワツシヤ，プレート; |
90201-30M00-00 |
from US $4.64 |
||
|
28
|
28
90386-30M78-00 Bush |
90386-30M78-00 |
from US $2.66 |
||
|
29
|
29
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2 |
||
|
30
|
30
90386-30M60-00 Bush |
90386-30M60-00 |
from US $2.66 |
||
|
31
|
31
6H4-44551-01-EK
Housing, Lower Mount
ハウジング，ロワーマウントラバー; |
6H4-44551-01-EK |
— | ||
| replacement | |||||
|
31
|
31
6H4-44551-02-EK
Housing, Lower Mount
ハウジング，ロワーマウントラバー; |
6H4-44551-02-EK |
— | ||
|
32
|
32
93410-28M06-00 Circlipサークリツプ; |
93410-28M06-00 |
from US $7.23 |
||
|
33
|
33
6H4-42121-02-5B Bracketブラケツト，キヤリング; |
6H4-42121-02-5B |
US $66.87 |
||
| replacement | |||||
|
33
|
33
6H4-42121-02-CA Bracketブラケツト，キヤリング; |
6H4-42121-02-CA |
from US $55.51 |
||
|
34
|
34
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
34
|
34
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.38 |
||
|
34
|
34
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.64 |
||
|
35
|
35
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
35
|
35
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
36
|
36
6H4-44557-00-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; ＵＲ シヨート |
6H4-44557-00-00 |
from US $74.61 |
||
|
36
|
36
6H4-44557-10-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; ＵＲ ロング，スーパーロング |
6H4-44557-10-00 |
from US $74.61 |
||
|
36
|
36
6H4-44557-30-00
Mount Damper, Lower Front
マウントダンパ，ロワーフロント; ＵＲ ウルトラロング |
6H4-44557-30-00 |
— | ||
|
37
|
37
6H4-44553-01-00 Cover, Lower Mountカバー，ロワーマウント; |
6H4-44553-01-00 |
from US $71.39 |
||
|
38
|
38
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
38
|
38
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
38
|
38
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
|
39
|
39
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
40
|
40
97395-10060-00 Bolt |
97395-10060-00 |
from US $9.21 |
||
| replacement | |||||
|
40
|
40
97095-10060-00 Bolt |
97095-10060-00 |
from US $9.21 |
||
|
41
|
41
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
42
|
42
6H4-82127-00-00 Wire, Lead 2ワイヤ，リード ２; |
6H4-82127-00-00 |
from US $28.48 |
||
|
43
|
43
6H4-44514-00-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; ＵＲ シヨート／ロング／スーパーロング |
6H4-44514-00-00 |
from US $43.11 |
||
|
43
|
43
6H4-44514-30-00
Mount Damper, Upper Side
マウントダンパ，アツパーサイド; ＵＲ ウルトラロング |
6H4-44514-30-00 |
— | ||
|
44
|
44
90101-08M86-00 Bolt |
90101-08M86-00 |
from US $13.24 |
||
|
45
|
45
90201-09425-00 Washer, Plateワツシヤ，プレート; |
90201-09425-00 |
from US $4.68 |
||
|
46
|
46
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.42 |
||
| replacement | |||||
|
46
|
46
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.42 |
||
|
47
|
47
6H4-44511-00-EK Cover, Upper Mountカバー，アツパーマウントラバー; |
6H4-44511-00-EK |
US $47.90 |
||
| replacement | |||||
|
47
|
47
6H4-44511-00-00
Cover, Upper Mount
カバー，アツパーマウントラバー; |
6H4-44511-00-00 |
— | ||
|
48
|
48
97090-08035-00 Boltボルト; |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
48
|
48
97070-08035-00 Boltボルト; |
97070-08035-00 |
from US $2.59 |
||
|
48
|
48
97095-08035-00 Boltボルト; |
97095-08035-00 |
from US $5.30 |
||
|
49
|
49
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
50
|
50
90101-10M58-00 Bolt |
90101-10M58-00 |
US $17.57 |
||
|
51
|
51
92995-10600-00 Washer, Plate |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
51
|
51
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
52
|
52
90201-12426-00 Washe, Plate(663)ワツシヤ，プレート; |
90201-12426-00 |
from US $3.24 |
||
|
53
|
53
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2 |
||
