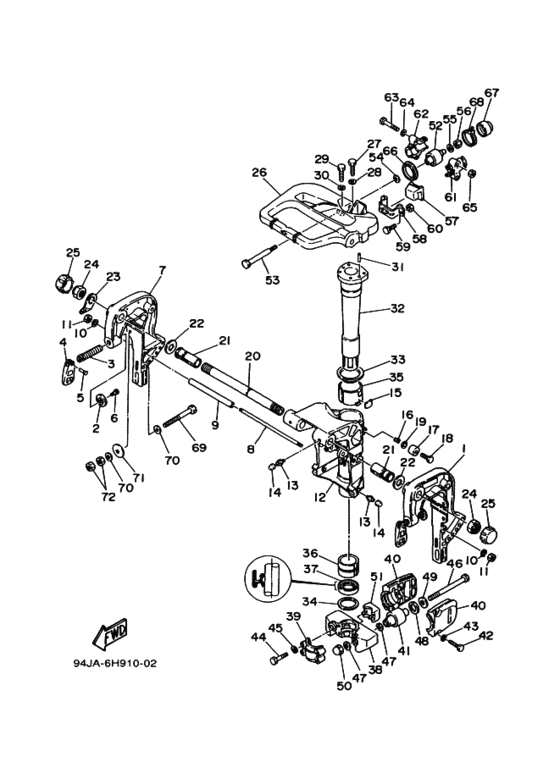

ﾌﾞﾗｹﾂﾄ 1 Diagram Yamaha 40 M(W/)S/L
- Year
- 1994
- Model
- K40J
- Model code
- 6H9
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
676-43111-03-4D Bracket, Clamp 1ブラケツト，クランプ; |
676-43111-03-4D |
US $200.33 |
||
| replacements | |||||
|
1
|
1
676-43111-04-4D Bracket, Clamp 1ブラケツト，クランプ; |
676-43111-04-4D |
US $200.33 |
||
|
1
|
1
676-43111-04-8D Bracket, Clamp 1ブラケツト，クランプ; |
676-43111-04-8D |
from US $187.42 |
||
|
2
|
2
6F5-43114-00-00 Pad, Transom Clampパツド，トランサムクランプ; |
6F5-43114-00-00 |
US $5.95 |
||
|
3
|
3
6F5-43116-00-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
6F5-43116-00-00 |
US $26.49 |
||
|
4
|
4
663-43118-00-4D Handle, Transom Clampハンドル，トランサムクランプ; |
663-43118-00-4D |
US $13.60 |
||
| replacement | |||||
|
4
|
4
663-43118-01-8D Handle, Transom Clampハンドル，トランサムクランプ; |
663-43118-01-8D |
from US $15.12 |
||
|
5
|
5
90243-04007-00 Pin |
90243-04007-00 |
from US $2.35 |
||
|
6
|
6
90109-06M12-00 Bolt |
90109-06M12-00 |
US $4.96 |
||
|
7
|
7
676-43112-04-4D Bracket, Clamp 2ブラケツト，クランプ; |
676-43112-04-4D |
US $200.33 |
||
|
8
|
8
90116-08M00-00 Bolt, Stud |
90116-08M00-00 |
from US $10.35 |
||
|
9
|
9
90387-08M02-00 Collar |
90387-08M02-00 |
from US $10.63 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
11
|
11
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
12
|
12
676-43311-02-4D Bracket, Swivel 1ブラケツト，スウイベル; |
676-43311-02-4D |
US $559.68 |
||
|
13
|
13
93700-06M03-00 Nipple, Greaseニツプル，グリ−ス; |
93700-06M03-00 |
from US $3.04 |
||
|
14
|
14
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリ−スニツプル; |
663-45119-00-00 |
US $3.89 |
||
|
15
|
15
648-42528-00-00 Plate, Frictionプレ−ト，フリクシヨン; |
648-42528-00-00 |
US $10.77 |
||
|
16
|
16
90501-18M00-00 Spring, Compression |
90501-18M00-00 |
from US $3.54 |
||
|
17
|
17
676-43373-00-00 Seal, Damperシール，ダンパ; |
676-43373-00-00 |
US $4.68 |
||
|
18
|
18
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
18
|
18
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
18
|
18
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
19
|
19
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
20
|
20
6J8-43131-01-00 Bolt, Clamp Bracketボルト，クランプブラケツト; |
6J8-43131-01-00 |
from US $36.36 |
||
|
21
|
21
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
22
|
22
90201-22428-00 Washer, Plate |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
22
|
22
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $4.11 |
||
|
23
|
23
6J8-43113-01-00 Plate, Clamp Bracketプレ−ト，クランプブラケツト; |
6J8-43113-01-00 |
from US $6.52 |
||
|
24
|
24
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
24
|
24
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
25
|
25
6G5-43145-00-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
25
|
25
6G5-43145-01-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-01-00 |
from US $7.07 |
||
|
26
|
26
676-42511-01-4D Bracket, Steering |
676-42511-01-4D |
US $190.66 |
||
| replacements | |||||
|
26
|
26
676-42511-03-4D Bracket, Steering |
676-42511-03-4D |
US $190.66 |
||
|
26
|
26
676-42511-03-8D BRACKETSTEERING |
676-42511-03-8D |
from US $169.66 |
||
|
27
|
27
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
27
|
27
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
29
|
29
97090-08035-00 Boltボルト; |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
29
|
29
97070-08035-00 Boltボルト; |
97070-08035-00 |
from US $2.59 |
||
|
29
|
29
97095-08035-00 Boltボルト; |
97095-08035-00 |
from US $5.53 |
||
|
30
|
30
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
31
|
31
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.84 |
||
|
32
|
32
676-42521-00-94 Shaft, Steering Pivot |
676-42521-00-94 |
US $163.03 |
||
|
33
|
33
90209-52M00-00 Washer |
90209-52M00-00 |
from US $5.81 |
||
|
34
|
34
90201-44M01-00 Washer, Plate |
90201-44M01-00 |
from US $3.72 |
||
|
35
|
35
90386-52M02-00 Bush |
90386-52M02-00 |
from US $10.68 |
||
|
36
|
36
90386-44M03-00 Bush |
90386-44M03-00 |
from US $9.57 |
||
|
37
|
37
93109-44M00-00 Oil Sealオイルシ−ル; |
93109-44M00-00 |
from US $7.76 |
||
|
38
|
38
676-44551-00-4D Housing, Lower Mount Rubber 1ハウジング，ロワ−マウントラバ−; |
676-44551-00-4D |
US $102.38 |
||
| replacement | |||||
|
38
|
38
676-44551-01-8D HOUSING, LOWER MOUNTハウジング，ロワ−マウントラバ−; |
676-44551-01-8D |
from US $72.29 |
||
|
39
|
39
676-44552-00-4D Housing, Lower Mount Rubber 2ハウジング，ロワ−マウントラバ−; |
676-44552-00-4D |
US $73.64 |
||
| replacements | |||||
|
39
|
39
676-44552-01-4D Housing, Lower Mount Rubber 2ハウジング，ロワ−マウントラバ−; |
676-44552-01-4D |
US $73.64 |
||
|
39
|
39
676-44552-01-8D Housing, Lower Mountハウジング，ロワ−マウントラバ−; |
676-44552-01-8D |
from US $72.29 |
||
|
40
|
40
676-44553-00-4D Cover, Lower Mountカバ−，ロワ−マウント; |
676-44553-00-4D |
US $65.63 |
||
| replacements | |||||
|
40
|
40
676-44553-01-4D Couvercle, Suspension Inferieuカバ−，ロワ−マウント; |
676-44553-01-4D |
US $65.63 |
||
|
40
|
40
676-44553-01-8D Cover, Lower Mountカバ−，ロワ−マウント; |
676-44553-01-8D |
from US $65.63 |
||
|
41
|
41
679-44555-00-94 Silent-Bloc, Inferieur Lateralマウントダンパ，ロワーサイド; |
679-44555-00-94 |
US $54.30 |
||
| replacement | |||||
|
41
|
41
62Y-44555-00-00 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
62Y-44555-00-00 |
from US $36.02 |
||
|
42
|
42
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
42
|
42
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
43
|
43
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
44
|
44
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
44
|
44
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
44
|
44
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
45
|
45
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
45
|
45
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
46
|
46
901-0112M-01-00 Bolt |
901-0112M-01-00 |
from US $13.48 |
||
|
47
|
47
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.70 |
||
|
48
|
48
90202-21100-00 Washer, Plate |
90202-21100-00 |
from US $7.77 |
||
|
49
|
49
90201-13M11-00 Washer, Plate |
90201-13M11-00 |
from US $8.22 |
||
|
50
|
50
95380-12800-00 Nut, Crownナツト，クラウン; |
95380-12800-00 |
from US $4.04 |
||
|
51
|
51
676-44575-00-00 Damper, Lower Mount Rubberダンパ，ロワ−マウントラバ−; |
676-44575-00-00 |
from US $16.40 |
||
|
52
|
52
679-44514-00-94 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
679-44514-00-94 |
US $60.93 |
||
| replacement | |||||
|
52
|
52
679-44514-00-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
679-44514-00-00 |
from US $60.93 |
||
|
53
|
53
90101-08M02-00 Bolt |
90101-08M02-00 |
from US $10.51 |
||
|
54
|
54
90201-08M08-00 Washer, Plate |
90201-08M08-00 |
from US $3.26 |
||
|
55
|
55
90201-09M00-00 Washer, Plate |
90201-09M00-00 |
from US $4.96 |
||
|
56
|
56
95780-08300-00 Nut, Nylon (6J8)ナツト，フランジ; |
95780-08300-00 |
from US $6.74 |
||
|
57
|
57
676-44533-00-00 Damper, Upper Mount Rubberダンパ，アツパ−マウントラバ−; |
676-44533-00-00 |
US $11.90 |
||
|
58
|
58
676-44518-00-00 Bracket Compブラケツトコンプリ−ト; |
676-44518-00-00 |
from US $7.76 |
||
|
59
|
59
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
59
|
59
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
60
|
60
956-01062-00-00
Nut, U-Flange
ナツト，セルフロツキング; |
956-01062-00-00 |
— | ||
| replacement | |||||
|
60
|
60
95604-06200-00 Nut, U Flangeナツト，セルフロツキング; |
95604-06200-00 |
from US $1.52 |
||
|
61
|
61
676-44511-00-94 Cover, Upper Mountカバ−，アツパ−マウントラバ−; |
676-44511-00-94 |
US $25.36 |
||
| replacement | |||||
|
61
|
61
676-44511-00-00 Cover, Upper Mountカバ−，アツパ−マウントラバ−; |
676-44511-00-00 |
from US $5.74 |
||
|
62
|
62
676-44512-00-94 Cover, Upper Mountカバー; |
676-44512-00-94 |
US $25.36 |
||
| replacement | |||||
|
62
|
62
676-44512-00-00 Cover, Upper Mountカバー; |
676-44512-00-00 |
from US $8.42 |
||
|
63
|
63
97395-08050-00 Bolt |
97395-08050-00 |
from US $6.88 |
||
| replacement | |||||
|
63
|
63
97095-08050-00 Bolt |
97095-08050-00 |
from US $7.65 |
||
|
64
|
64
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
65
|
65
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
65
|
65
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
65
|
65
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
66
|
66
676-44521-00-00 Sealシール; |
676-44521-00-00 |
from US $3.38 |
||
|
67
|
67
676-44522-01-00 Sealシール; |
676-44522-01-00 |
from US $7.37 |
||
|
68
|
68
90465-11M52-00 Clamp |
90465-11M52-00 |
from US $1.70 |
||
|
69
|
69
90101-10M58-00 Bolt |
90101-10M58-00 |
US $17.57 |
||
|
70
|
70
92995-10600-00 Washer, Plate |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
70
|
70
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
71
|
71
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
72
|
72
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2.36 |
||
