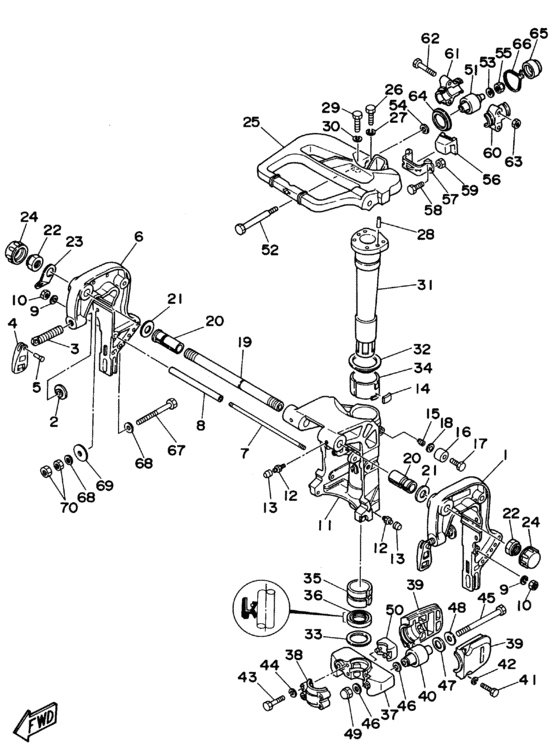

Bracket Diagram Yamaha 40 ES/LH
- Year
- 1997
- Model
- C40
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
676-43111-04-4D Bracket, Clamp 1 |
676-43111-04-4D |
US $200.33 |
||
| replacement | |||||
|
1
|
1
676-43111-04-8D Bracket, Clamp 1 |
676-43111-04-8D |
from US $187.42 |
||
|
2
|
2
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.30 |
||
|
3
|
3
676-43116-00-00
Screw, Transom Clamp
|
676-43116-00-00 |
— | ||
|
4
|
4
663-43118-01-4D
Handle, Transom Clamp
|
663-43118-01-4D |
— | ||
| replacement | |||||
|
4
|
4
663-43118-01-8D Handle, Transom Clamp |
663-43118-01-8D |
from US $13.60 |
||
|
5
|
5
90243-04007-00 Pin |
90243-04007-00 |
from US $1.98 |
||
|
6
|
6
676-43112-04-4D Bracket, Clamp 2 |
676-43112-04-4D |
US $200.33 |
||
|
7
|
7
90116-08M00-00 Bolt, Stud |
90116-08M00-00 |
from US $10.35 |
||
|
8
|
8
90387-08M02-00 Collar |
90387-08M02-00 |
from US $10.63 |
||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
10
|
10
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
10
|
10
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
11
|
11
676-43311-02-4D Bracket, Swivel 1 |
676-43311-02-4D |
US $559.68 |
||
|
12
|
12
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
13
|
13
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
14
|
14
648-42528-00-00 Plate, Friction |
648-42528-00-00 |
US $10.77 |
||
|
15
|
15
90501-18M00-00 Spring, Compression |
90501-18M00-00 |
from US $3.54 |
||
|
16
|
16
676-43373-00-00 Seal, Damper |
676-43373-00-00 |
US $4.68 |
||
|
17
|
17
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
| replacement | |||||
|
17
|
17
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
18
|
18
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
19
|
19
6J8-43131-01-00 Bolt, Clamp Bracket |
6J8-43131-01-00 |
from US $34.72 |
||
|
20
|
20
90386-22M15-00 Bush |
90386-22M15-00 |
from US $4.96 |
||
|
21
|
21
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $2.66 |
||
|
22
|
22
90185-22M11-00 Nut, Self-Locking |
90185-22M11-00 |
US $33.44 |
||
| replacement | |||||
|
22
|
22
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
23
|
23
6J8-43113-01-00 Plate, Clamp Bracket |
6J8-43113-01-00 |
from US $6.52 |
||
|
24
|
24
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
24
|
24
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $6.62 |
||
|
25
|
25
676-42511-02-4D Cadre, Direction |
676-42511-02-4D |
US $190.66 |
||
| replacements | |||||
|
25
|
25
676-42511-03-4D Bracket, Steering |
676-42511-03-4D |
US $190.66 |
||
|
25
|
25
676-42511-03-8D BRACKETSTEERING |
676-42511-03-8D |
from US $162.34 |
||
|
26
|
26
97095-08030-00 Bolt |
97095-08030-00 |
US $2.69 |
||
| replacement | |||||
|
26
|
26
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
27
|
27
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
28
|
28
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.66 |
||
|
29
|
29
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.30 |
||
| replacement | |||||
|
29
|
29
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
30
|
30
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
31
|
31
676-42521-00-94 Shaft, Steering Pivot |
676-42521-00-94 |
US $163.03 |
||
|
32
|
32
90209-52M00-00 Washer |
90209-52M00-00 |
from US $5.81 |
||
|
33
|
33
90201-44M01-00 Washer, Plate |
90201-44M01-00 |
from US $3.32 |
||
|
34
|
34
90386-52M02-00 Bush |
90386-52M02-00 |
from US $10.91 |
||
|
35
|
35
90386-44M03-00 Bush |
90386-44M03-00 |
from US $9.78 |
||
|
36
|
36
93109-44M00-00 Oil Seal |
93109-44M00-00 |
from US $6.96 |
||
|
37
|
37
676-44551-01-4D Housing, Lower Mount Rubber 1 |
676-44551-01-4D |
US $102.38 |
||
| replacement | |||||
|
37
|
37
676-44551-01-8D HOUSING, LOWER MOUNT |
676-44551-01-8D |
from US $72.29 |
||
|
38
|
38
676-44552-01-4D Housing, Lower Mount Rubber 2 |
676-44552-01-4D |
US $73.64 |
||
| replacement | |||||
|
38
|
38
676-44552-01-8D Housing, Lower Mount |
676-44552-01-8D |
from US $72.29 |
||
|
39
|
39
676-44553-01-4D Couvercle, Suspension Inferieu |
676-44553-01-4D |
US $65.63 |
||
| replacement | |||||
|
39
|
39
676-44553-01-8D Cover, Lower Mount |
676-44553-01-8D |
from US $65.63 |
||
|
40
|
40
679-44555-00-94 Silent-Bloc, Inferieur Lateral |
679-44555-00-94 |
US $54.30 |
||
| replacement | |||||
|
40
|
40
62Y-44555-00-00 Mount Damper, Lower Side |
62Y-44555-00-00 |
from US $31.08 |
||
|
41
|
41
97095-08030-00 Bolt |
97095-08030-00 |
US $2.69 |
||
| replacement | |||||
|
41
|
41
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
42
|
42
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
43
|
43
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
43
|
43
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
44
|
44
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
45
|
45
901-0112M-01-00 Bolt |
901-0112M-01-00 |
from US $13.48 |
||
|
46
|
46
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.32 |
||
|
47
|
47
90202-21100-00 Washer, Plate |
90202-21100-00 |
from US $7.65 |
||
|
48
|
48
90201-13M11-00 Washer, Plate |
90201-13M11-00 |
from US $8.22 |
||
|
49
|
49
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $3.64 |
||
|
50
|
50
676-44575-00-00 Damper, Lower Mount Rubber |
676-44575-00-00 |
from US $16.40 |
||
|
51
|
51
679-44514-00-94 Mount Damper, Upper Side |
679-44514-00-94 |
US $60.93 |
||
| replacement | |||||
|
51
|
51
679-44514-00-00 Mount Damper, Upper Side |
679-44514-00-00 |
from US $60.93 |
||
|
52
|
52
90101-08M02-00 Bolt |
90101-08M02-00 |
from US $7.28 |
||
|
53
|
53
90201-08M08-00 Washer, Plate |
90201-08M08-00 |
from US $3.26 |
||
|
54
|
54
90201-09M00-00 Washer, Plate |
90201-09M00-00 |
from US $4.96 |
||
|
55
|
55
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.30 |
||
|
56
|
56
676-44533-00-00 Damper, Upper Mount Rubber |
676-44533-00-00 |
US $11.90 |
||
|
57
|
57
676-44518-00-00 Bracket Comp |
676-44518-00-00 |
from US $7.28 |
||
|
58
|
58
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
58
|
58
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
59
|
59
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
60
|
60
676-44511-00-94 Cover, Upper Mount |
676-44511-00-94 |
US $25.36 |
||
| replacement | |||||
|
60
|
60
676-44511-00-00 Cover, Upper Mount |
676-44511-00-00 |
from US $12.90 |
||
|
61
|
61
676-44512-00-94 Cover, Upper Mount |
676-44512-00-94 |
US $25.36 |
||
| replacement | |||||
|
61
|
61
676-44512-00-00 Cover, Upper Mount |
676-44512-00-00 |
from US $11.58 |
||
|
62
|
62
97095-08050-00 Bolt |
97095-08050-00 |
from US $7.65 |
||
|
63
|
63
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
63
|
63
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
63
|
63
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
64
|
64
676-44521-00-00 Seal |
676-44521-00-00 |
from US $2.98 |
||
|
65
|
65
676-44522-01-00 Seal |
676-44522-01-00 |
from US $7.37 |
||
|
66
|
66
90465-11M52-00 Clamp |
90465-11M52-00 |
from US $1.70 |
||
|
67
|
67
90101-10M58-00 Bolt |
90101-10M58-00 |
US $17.57 |
||
|
68
|
68
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
69
|
69
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
70
|
70
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2 |
||
