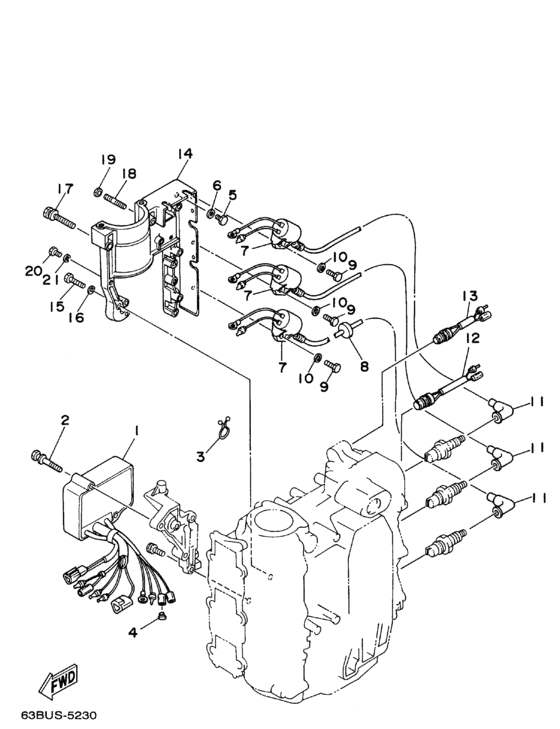

Electrical Diagram Yamaha 40 TS/LR
- Year
- 1997
- Model
- C40
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63D-85540-00-00
C.d.i. Unit Assembly
|
63D-85540-00-00 |
— | ||
| replacement | |||||
|
1
|
1
63D-85540-04-00 C.d.i. Unit Assy |
63D-85540-04-00 |
from US $478.22 |
||
|
2
|
2
90119-06M51-00 Bolt, With Washer |
90119-06M51-00 |
from US $7.08 |
||
|
3
|
3
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
|
4
|
4
703-82119-00-00 Cover, Lead Wire |
703-82119-00-00 |
from US $2.13 |
||
|
5
|
5
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
5
|
5
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
7
|
7
6H5-85570-00-00 Ignition Coil Assy |
6H5-85570-00-00 |
from US $103.90 |
||
|
8
|
8
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
9
|
9
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
663-82370-01-00 Plug Cap Assy |
663-82370-01-00 |
from US $7.62 |
||
|
12
|
12
689-82560-00-00 Thermo Switch Assy |
689-82560-00-00 |
from US $68.25 |
||
|
13
|
13
6H4-82560-00-00 Thermo Switch Assy |
6H4-82560-00-00 |
from US $73.64 |
||
|
14
|
14
6H4-81822-02-98 Bracket, Starting Motor |
6H4-81822-02-98 |
from US $59.69 |
||
|
15
|
15
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
15
|
15
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
97513-08250-00 Vis Hexagonal Avc Rondelle |
97513-08250-00 |
US $4.53 |
||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
95670-06640-00 Bolt, Stud |
95670-06640-00 |
from US $4.49 |
||
|
19
|
19
90179-06M24-00 Nut |
90179-06M24-00 |
from US $2.69 |
||
|
20
|
20
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
20
|
20
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
