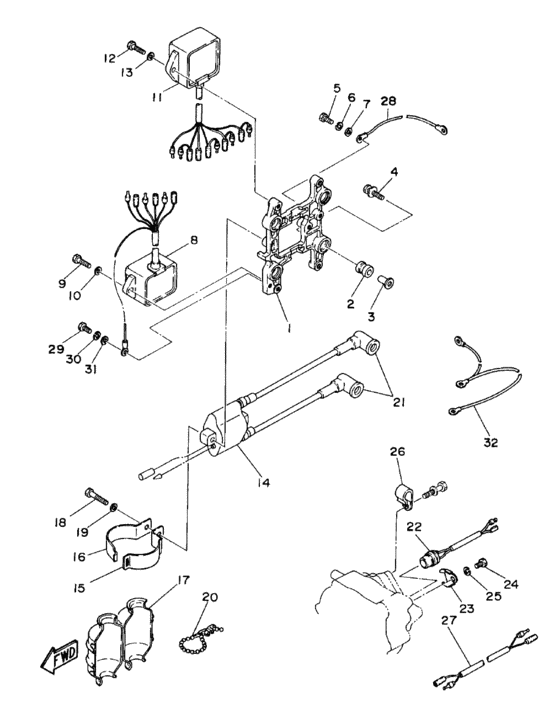

Electrical Diagram Yamaha 48 MS/LH
- Year
- 1997
- Model
- E48C
- Model code
- 696
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 48
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
696-85542-00-94 Bracket |
696-85542-00-94 |
US $86.36 |
||
|
2
|
2
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $2.36 |
||
|
3
|
3
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
3
|
3
90387-06119-00 Collar |
90387-06119-00 |
from US $3.26 |
||
|
4
|
4
90119-06M90-00 Bolt, With Washer(697) |
90119-06M90-00 |
US $2.83 |
||
| replacements | |||||
|
4
|
4
90119-06M59-00 Bolt, With Washer |
90119-06M59-00 |
US $2.83 |
||
|
4
|
4
901-19062-89-00 BOLT WITH WASHER |
901-19062-89-00 |
from US $2.70 |
||
|
5
|
5
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
696-85540-11-00 C.d.i. Unit Assy |
696-85540-11-00 |
US $332.97 |
||
| replacement | |||||
|
8
|
8
696-85540-12-00 C.d.i. Unit Assy |
696-85540-12-00 |
from US $332.97 |
||
|
9
|
9
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
696-85590-10-00 Control Unit Assy |
696-85590-10-00 |
from US $280.46 |
||
|
12
|
12
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
12
|
12
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
696-85570-11-00 Ignition Coil Assy |
696-85570-11-00 |
US $146.45 |
||
| replacement | |||||
|
14
|
14
696-85570-12-00 Ignition Coil Assy |
696-85570-12-00 |
from US $134.32 |
||
|
15
|
15
696-81443-00-00 Clamp, Lead 1 |
696-81443-00-00 |
US $22.18 |
||
|
16
|
16
696-81444-00-00 Clamp, Lead 2 |
696-81444-00-00 |
US $22.18 |
||
|
17
|
17
696-81916-00-00 Cover, Terminal |
696-81916-00-00 |
US $20.66 |
||
|
18
|
18
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
18
|
18
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
904-6420M-04-00 Clamp |
904-6420M-04-00 |
US $1.70 |
||
|
21
|
21
663-82370-01-00 Plug Cap Assy |
663-82370-01-00 |
from US $6.62 |
||
|
22
|
22
688-82560-00-00 Thermo Switch Assy |
688-82560-00-00 |
from US $60.44 |
||
|
23
|
23
663-82588-00-00 Plate |
663-82588-00-00 |
from US $9.49 |
||
|
24
|
24
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
24
|
24
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
27
|
27
696-82531-00-00 Wire, Lead |
696-82531-00-00 |
US $21.54 |
||
| replacement | |||||
|
27
|
27
6H4-82553-00-00 Extension, Wire Lead |
6H4-82553-00-00 |
from US $19.55 |
||
|
28
|
28
662-82519-00-00 Wire, Earth Lead |
662-82519-00-00 |
from US $7.76 |
||
|
29
|
29
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
32
|
32
697-82519-00-00 Wire, Earth Lead |
697-82519-00-00 |
from US $12.89 |
||
