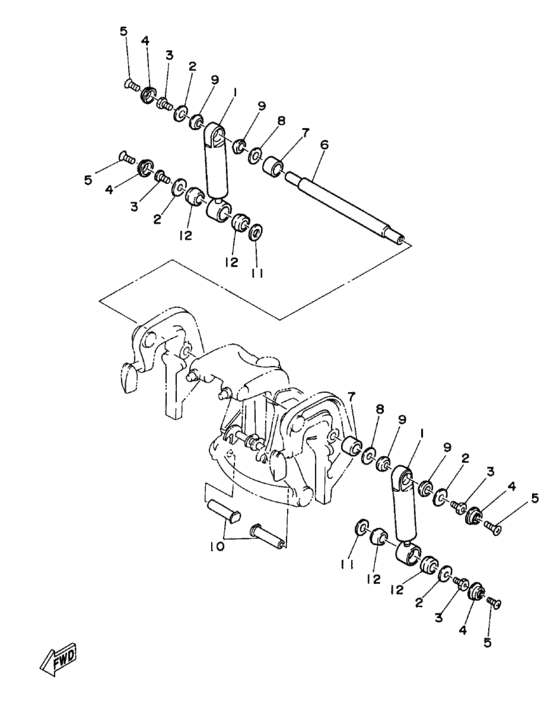

Bracket Diagram Yamaha 48 MS/LH
- Year
- 1999
- Model
- E48C
- Model code
- 696
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 48
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-43170-02-4D Shock Absorber Assy |
663-43170-02-4D |
US $519.68 |
||
| replacement | |||||
|
1
|
1
663-43170-03-00 GASKET,WATER PUMP |
663-43170-03-00 |
from US $310.64 |
||
|
2
|
2
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
3
|
3
901-09122-63-00 Bolt |
901-09122-63-00 |
from US $12.04 |
||
|
4
|
4
663-43125-00-00 Cover, Shock Mount |
663-43125-00-00 |
from US $8.22 |
||
|
5
|
5
98780-05015-00 Screw, Flat Head |
98780-05015-00 |
US $2.13 |
||
| replacement | |||||
|
5
|
5
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
6
|
6
663-43126-00-00 Pin, Upper Shock Mount |
663-43126-00-00 |
from US $27.91 |
||
|
7
|
7
905-60250-61-00 Spacer |
905-60250-61-00 |
from US $23.18 |
||
|
8
|
8
902-01194-27-00 Washer, Plate |
902-01194-27-00 |
from US $8.08 |
||
|
9
|
9
903-85190-08-00 Bush |
903-85190-08-00 |
from US $4.68 |
||
|
10
|
10
663-43124-00-00 Pin, Lower Shock Mount |
663-43124-00-00 |
from US $36.34 |
||
|
11
|
11
902-02190-59-00 Washer, Plate |
902-02190-59-00 |
from US $2.83 |
||
|
12
|
12
903-85190-07-00 Bush |
903-85190-07-00 |
from US $6.80 |
||
