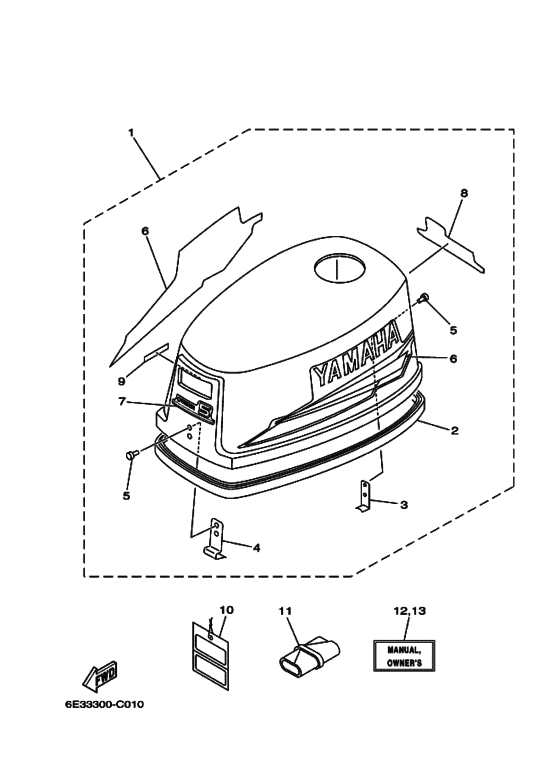

Top cowling Diagram Yamaha 5 MHS/L
- Year
- 2007
- Model
- 5C
- Model code
- 6E3
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (040 / 100 / 120)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E3-42610-40-4D Top Cowling Assy |
6E3-42610-40-4D |
US $373.71 |
||
| replacement | |||||
|
1
|
1
6E3-42610-40-00 Top Cowling Assy |
6E3-42610-40-00 |
US $373.71 |
||
|
2
|
2
6E0-42615-00-00 Seal |
6E0-42615-00-00 |
US $41.86 |
||
|
3
|
3
6E0-42647-01-00 Holder, Clamp Band |
6E0-42647-01-00 |
from US $9.07 |
||
|
4
|
4
6E0-42651-02-00 Hook |
6E0-42651-02-00 |
from US $4.64 |
||
|
5
|
5
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
6
|
6
6E0-W0070-14-00 Graphic Set |
6E0-W0070-14-00 |
from US $37.44 |
||
|
7
|
7
6E3-42677-20-00 Graphic, Front |
6E3-42677-20-00 |
US $4.11 |
||
| replacements | |||||
|
7
|
7
6E3-42678-40-00 Graphic, Rear |
6E3-42678-40-00 |
US $4.11 |
||
|
7
|
7
6E3-42678-41-00 Graphic, Rear |
6E3-42678-41-00 |
US $13.57 |
||
|
8
|
8
6E3-42678-12-00 Graphic, Rear |
6E3-42678-12-00 |
US $4.11 |
||
| replacements | |||||
|
8
|
8
6E3-42678-40-00 Graphic, Rear |
6E3-42678-40-00 |
US $4.11 |
||
|
8
|
8
6E3-42678-41-00 Graphic, Rear |
6E3-42678-41-00 |
US $13.57 |
||
|
9
|
9
6E0-44191-11-00 Indicator, Shift |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
9
|
9
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
from US $4.68 |
||
|
10
|
10
61H-2819R-31-00 Tag, Warning |
61H-2819R-31-00 |
US $4.84 |
||
|
11
|
11
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
| replacements | |||||
|
11
|
11
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
11
|
11
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
12
|
12
6A1-28199-7R-E0
Manual,owner's
UR (E) |
6A1-28199-7R-E0 |
— | ||
|
12
|
12
6A1-28199-7R-F0
Manual,owner's
UR (F) |
6A1-28199-7R-F0 |
— | ||
|
12
|
12
6A1-28199-7R-S0
Manual,owner's
UR (ES) |
6A1-28199-7R-S0 |
— | ||
|
12
|
12
6A1-28199-7R-G0
Manual,owner's
UR (D) |
6A1-28199-7R-G0 |
— | ||
|
12
|
12
6A1-28199-7R-D0
Manual,owner's
UR (NL) |
6A1-28199-7R-D0 |
— | ||
|
12
|
12
6A1-28199-7R-H0
Manual,owner's
UR (I) |
6A1-28199-7R-H0 |
— | ||
|
13
|
13
6A1-28199-8S-K0
Manual,owner's
UR (DK) |
6A1-28199-8S-K0 |
— | ||
|
13
|
13
6A1-28199-8S-R0
Manual,owner's
UR (GR) |
6A1-28199-8S-R0 |
— | ||
|
13
|
13
6A1-28199-8S-P0
Manual,owner's
UR (P) |
6A1-28199-8S-P0 |
— | ||
|
13
|
13
6A1-28199-8S-N0
Manual,owner's
UR (N) |
6A1-28199-8S-N0 |
— | ||
|
13
|
13
6A1-28199-8S-M0
Manual,owner's
UR (S) |
6A1-28199-8S-M0 |
— | ||
|
13
|
13
6A1-28199-8S-L0
Manual,owner's
UR (SF) |
6A1-28199-8S-L0 |
— | ||
