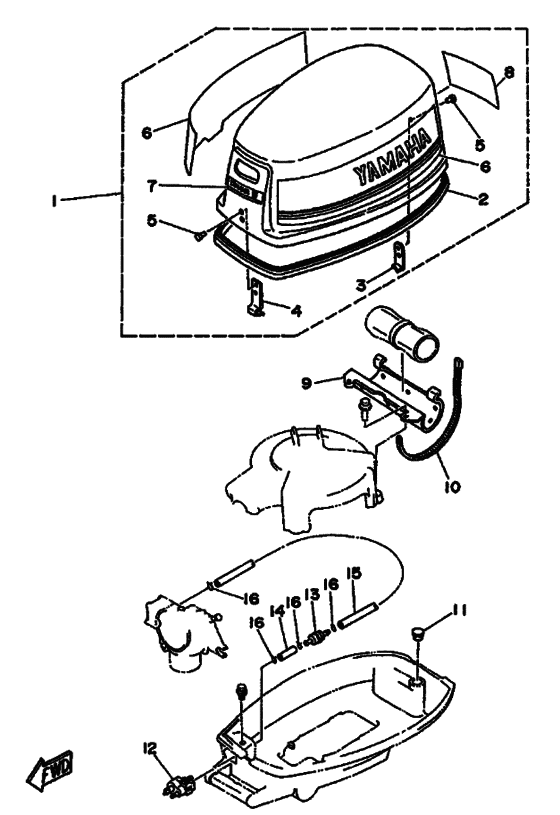

Alternate 2 Diagram Yamaha 5 MHS/L
- Year
- 1990
- Model
- 5C(CS)
- Model code
- 6E3
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E4-42610-25-EJ
Top Cowling Assy
|
6E4-42610-25-EJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6E0-42615-00-00 Seal |
6E0-42615-00-00 |
US $41.86 |
||
|
3
|
3
6E0-42647-01-00 Holder, Clamp Band |
6E0-42647-01-00 |
from US $9.07 |
||
|
4
|
4
6E0-42651-02-00 Hook |
6E0-42651-02-00 |
from US $4.64 |
||
|
5
|
5
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
6
|
6
6E0-W0070-23-00
Graphic Set
|
6E0-W0070-23-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
6E3-42677-10-00 Graphic, Front |
6E3-42677-10-00 |
from US $7.34 |
||
|
8
|
8
6E3-42678-11-00 Graphic, Rear |
6E3-42678-11-00 |
US $9.11 |
||
|
9
|
9
6E1-42643-00-00 Plate, Clamp |
6E1-42643-00-00 |
US $33.63 |
||
| replacement | |||||
|
9
|
9
6E1-42643-01-00 Plate, Clamp |
6E1-42643-01-00 |
US $33.63 |
||
|
10
|
10
90465-13154-00 Clamp |
90465-13154-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $2.83 |
||
|
12
|
12
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
12
|
12
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $29.47 |
||
|
12
|
12
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $30.10 |
||
|
13
|
13
646-24251-02-00 Strainer 1 |
646-24251-02-00 |
from US $14.45 |
||
|
14
|
14
90445-09057-00 Hose (L180) |
90445-09057-00 |
from US $4.11 |
||
| replacement | |||||
|
14
|
14
90445-094K7-00 Hose (L180) |
90445-094K7-00 |
from US $4.11 |
||
|
15
|
15
90445-09068-00 Hose (L110) |
90445-09068-00 |
from US $1.98 |
||
| replacement | |||||
|
15
|
15
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
16
|
16
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
