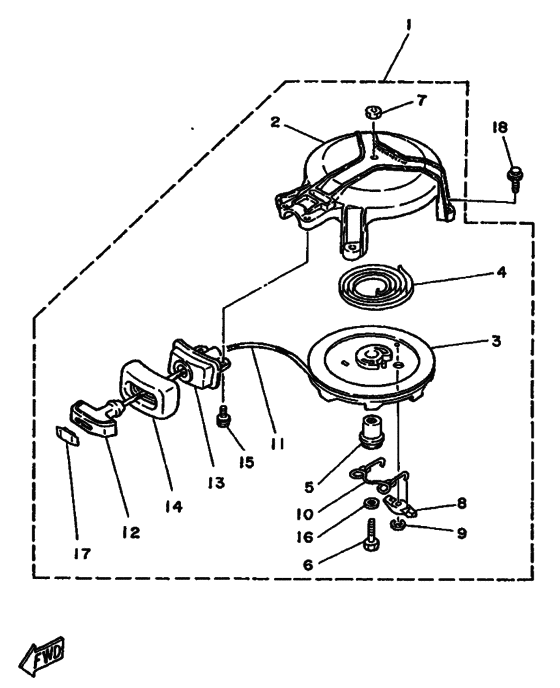

Starter Diagram Yamaha 5 MHS/L
- Year
- 1987
- Model
- 5C(CS)
- Model code
- 6E3
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E3-15710-02-94 Starter Assy |
6E3-15710-02-94 |
US $406.47 |
||
| replacement | |||||
|
1
|
1
6E3-15710-04-94 Starter Assy |
6E3-15710-04-94 |
US $209.40 |
||
|
2
|
2
6E4-15711-71-94 Case, Starter |
6E4-15711-71-94 |
US $77.51 |
||
| replacement | |||||
|
2
|
2
6E4-15711-72-00 Case, Starter |
6E4-15711-72-00 |
from US $74.52 |
||
|
3
|
3
6E0-15714-01-00 Drum, Sheave |
6E0-15714-01-00 |
from US $54.47 |
||
|
4
|
4
90510-08M03-00 Spring, Spiral |
90510-08M03-00 |
from US $35.24 |
||
|
5
|
5
6E0-15717-00-00 Shaft, Starter |
6E0-15717-00-00 |
US $12.61 |
||
| replacement | |||||
|
5
|
5
6E0-15717-01-00 Shaft, Starter |
6E0-15717-01-00 |
US $16.61 |
||
|
6
|
6
973-13060-35-00
Bolt, Hexagon
|
973-13060-35-00 |
— | ||
| replacement | |||||
|
6
|
6
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
7
|
7
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
8
|
8
677-15741-01-00 Pawl, Drive |
677-15741-01-00 |
from US $4.96 |
||
|
9
|
9
93430-06M02-00 Circlip |
93430-06M02-00 |
from US $1.34 |
||
|
10
|
10
6E0-15705-00-00 Spring, Drive Pawl |
6E0-15705-00-00 |
from US $5.64 |
||
|
12
|
12
6G1-15755-00-00 Handle, Starter |
6G1-15755-00-00 |
from US $8.60 |
||
|
13
|
13
6E3-15758-01-00 Guide, Rope |
6E3-15758-01-00 |
from US $37.17 |
||
|
14
|
14
6E0-15761-00-00 Seal, Rubber 1 |
6E0-15761-00-00 |
US $20.26 |
||
|
15
|
15
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
16
|
16
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
17
|
17
689-15779-01-00 Cover |
689-15779-01-00 |
from US $4.53 |
||
|
18
|
18
90105-06M15-00 Bolt, Flange |
90105-06M15-00 |
from US $2.05 |
||
