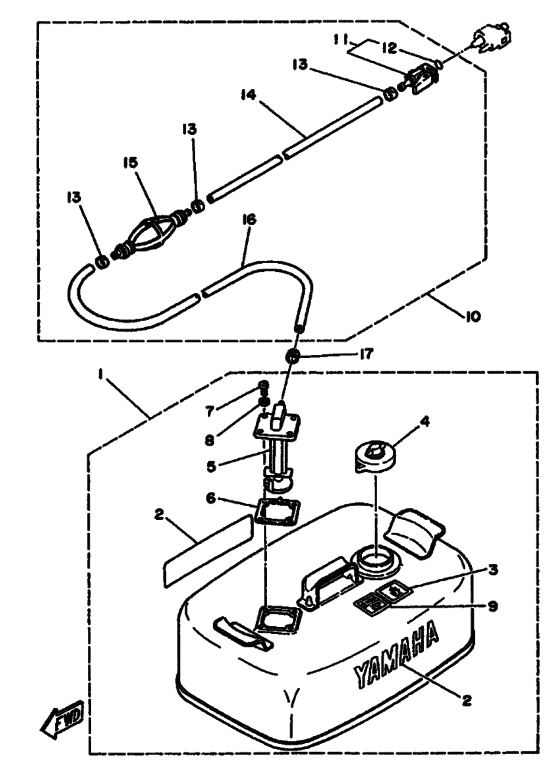

Alternate 1 Diagram Yamaha 5 MHS/L
- Year
- 1990
- Model
- 5C(CS)
- Model code
- 6E4
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y4-W2420-80-24
Fuel Tank Assy
|
6Y4-W2420-80-24 |
— | ||
|
2
|
2
6Y1-24246-00-00
Graphic, Side
|
6Y1-24246-00-00 |
— | ||
|
3
|
3
6Y1-24257-00-00
Graphic
10 |
6Y1-24257-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
10 |
999-99999-99-00 |
— | ||
|
4
|
4
6Y1-24610-12-00 Cap Assy |
6Y1-24610-12-00 |
from US $48.91 |
||
|
5
|
5
6Y4-24275-80-00
Fuel Meter Comp
|
6Y4-24275-80-00 |
— | ||
|
6
|
6
6Y1-24268-00-00 Gasket, Fuel Meter |
6Y1-24268-00-00 |
US $3.83 |
||
|
7
|
7
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
8
|
8
6Y1-24329-00-00 Seal |
6Y1-24329-00-00 |
from US $1.70 |
||
|
9
|
9
6Y1-24255-80-00
Graphic, Fuel Tank 8
|
6Y1-24255-80-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
6Y4-24306-80-00 Fuel Pipe Comp. 1 |
6Y4-24306-80-00 |
US $79.58 |
||
| replacements | |||||
|
10
|
10
6YK-24306-64-00 Fuel Pipe Comp. 1 |
6YK-24306-64-00 |
from US $142.36 |
||
|
10
|
10
6Y4-24306-81-00 Fuel Pipe Comp. 1 |
6Y4-24306-81-00 |
US $67.56 |
||
|
11
|
11
6G1-24305-00-00 Fuel Pipe Joint Comp. 2 |
6G1-24305-00-00 |
US $28.34 |
||
| replacement | |||||
|
11
|
11
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $24.14 |
||
|
12
|
12
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
13
|
13
650-24351-01-00 Band 1 |
650-24351-01-00 |
US $2.98 |
||
| replacement | |||||
|
13
|
13
650-24351-51-00 Band 1 |
650-24351-51-00 |
from US $2.98 |
||
|
14
|
14
90445-11M05-00 Hose |
90445-11M05-00 |
US $10.77 |
||
| replacement | |||||
|
14
|
14
90445-11M78-00 Hose |
90445-11M78-00 |
US $10.77 |
||
|
15
|
15
6Y1-24360-02-00 Primer Pump Assy |
6Y1-24360-02-00 |
US $32.59 |
||
| replacement | |||||
|
15
|
15
6YL-24360-63-00 PIPE, JOINT 2 |
6YL-24360-63-00 |
from US $54.97 |
||
|
16
|
16
90445-11M06-00 Hose |
90445-11M06-00 |
US $34.57 |
||
| replacement | |||||
|
16
|
16
90445-11M81-00 Hose (L3000) |
90445-11M81-00 |
from US $34.57 |
||
|
17
|
17
650-24351-01-00 Band 1(5CS MODEL) |
650-24351-01-00 |
US $2.98 |
||
| replacement | |||||
|
17
|
17
650-24351-51-00 Band 1(5CS MODEL) |
650-24351-51-00 |
from US $2.98 |
||
