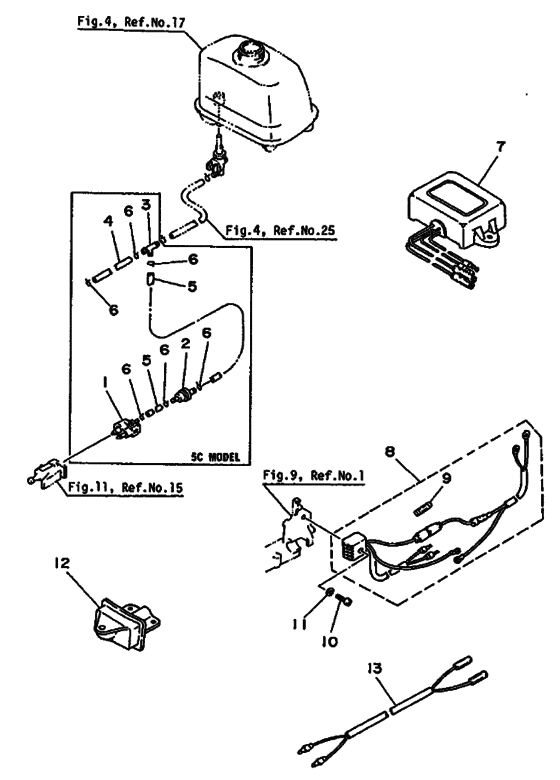

Optional parts Diagram Yamaha 5 MHS/L
- Year
- 1987
- Model
- 5C(CS)
- Model code
- 6E4
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-24304-01-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-01-00 |
US $29.47 |
||
| replacements | |||||
|
1
|
1
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $29.47 |
||
|
1
|
1
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $30.10 |
||
|
2
|
2
646-24251-01-00 Strainer 1 |
646-24251-01-00 |
US $14.45 |
||
| replacement | |||||
|
2
|
2
646-24251-02-00 Strainer 1 |
646-24251-02-00 |
from US $14.45 |
||
|
3
|
3
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $6.94 |
||
|
4
|
4
90445-09068-00 Hose (L110) |
90445-09068-00 |
from US $1.98 |
||
| replacement | |||||
|
4
|
4
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
5
|
5
90445-09200-00
Hose
|
90445-09200-00 |
— | ||
|
6
|
6
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
7
|
7
663-81910-10-00 Voltage Regulator Assy |
663-81910-10-00 |
US $296.89 |
||
|
8
|
8
676-81970-00-00 Rectifier Assy |
676-81970-00-00 |
US $92.71 |
||
| replacements | |||||
|
8
|
8
676-81970-01-00 Rectifier Assy |
676-81970-01-00 |
US $92.71 |
||
|
8
|
8
676-81970-02-00 Rectifier Assy |
676-81970-02-00 |
from US $92.71 |
||
|
9
|
9
663-82151-00-00 Fuse (12V-20A) |
663-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
9
|
9
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.84 |
||
|
9
|
9
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.84 |
||
|
10
|
10
978-03050-25-00
Screw, Pan Head
|
978-03050-25-00 |
— | ||
| replacement | |||||
|
10
|
10
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
11
|
11
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
6E0-15758-80-EJ
Guide, Rope
|
6E0-15758-80-EJ |
— | ||
|
13
|
13
6E0-83553-20-00 Wire, Lead |
6E0-83553-20-00 |
from US $49.91 |
||
